• Material：Tungsten Carbide, High Manganese Steel
• Processing Type：Forging
• Pressure：High Pressure
• Transfer：Air,Sea,Express
• Color：Request
• Advantage：High Performance
• Product Name：Tricone Bit
• Inserts Design：Spherical; Ballistic; Parabolic
• Transport Package：Wooden Box or as Customers Inquire
• Specification：TCI or Steel Tooth
• Trademark：PANDA
• Origin：Shandong China
• HS Code：82071990
• Production Capacity：2000 Pieces , Week

IADCWOBRPMApplication(KN/mm)(r/min)111/114/1150.3-0.75200-80very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk116/1170.35-0.8150-80very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk1210.3-0.85200-80soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone124/125 180-601310.3-0.95180-80soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds136/1370.35-1.0120-60211/2410.3-0.95180-80medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds.216/2170.4-1.0100-60246/2470.4-1.080-50medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite3210.4-1.0150-70medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble3240.4-1.0120-50437/447/4350.35-0.9240-70very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone517/527/5150.35-1.0220-60soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone537/547/5350.45-1.0220-50soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds617/6150.45-1.1200-50medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite637/6350.5-1.1180-40hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marbleNote: Above limits of WOB and RRPM should not be used simultaneously
Diameter:SizeSteel tooth bitTCI bitinmmWeight(kgs)Weight(kgs)3 7/898.4564 5/8117.566.55 7/8149.217186152.41819.56 1/2165.119227 7/82002929.58 1/2215.935388 3/4222.236409 1/2241.357599 7/8250.8586010 5/8269.9667412 1/4311.18511113 5/8346.111812014 3/4374.614016017 1/2444.52302552050842844322558.852056026660.4720810

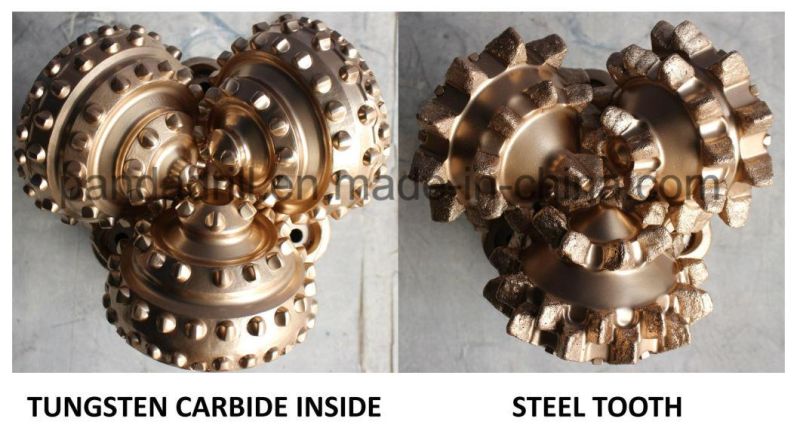

Different Type:

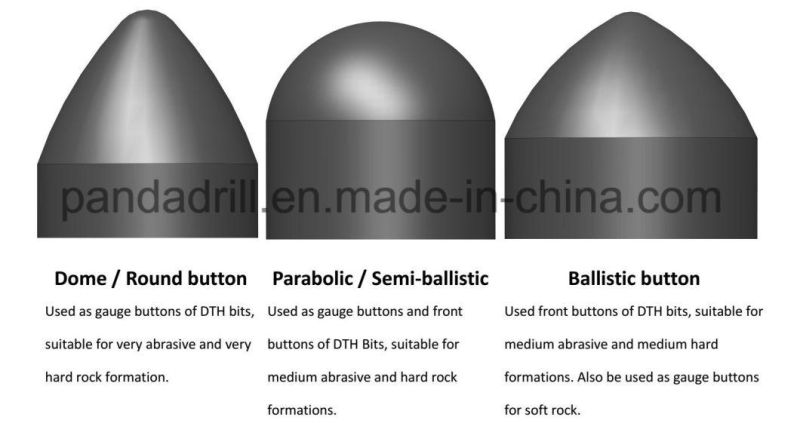

Different Button Shapes:



FAQ:

Q1: Can I have a sample for testing?

A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?

A:Free replacement will provide once the problems casued by our product quality.

Q4: Can I have a visit to your factory before the order?


A: Sure, welcome, here is our address: Yantai, Shandong.
