• Model NO.：SWMH350K
• Size：Large-Scale
• Certification：CE, ISO9001: 2000, ISO14001
• Condition：New
• Dual Power：Electrical + Diesel
• Max. Working Radius：14 M
• Max. Lifting Height：15.5 M
• Max. Lifting Moment：525kn.M
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：100 PCS , Year

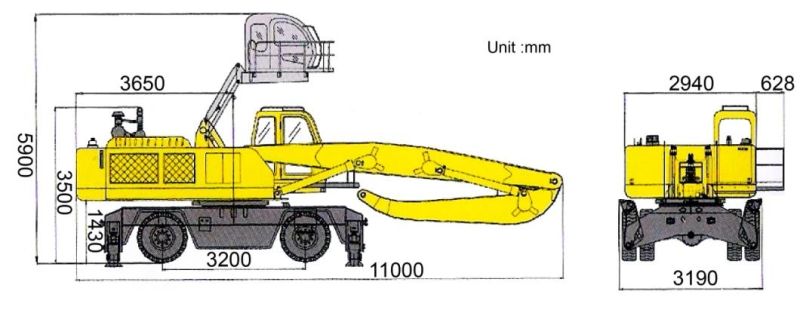

PowerElectrical motor110kwRated speed1480rpmMax. swing speed (electrical motor)5r/minDiesel engine154kwRated speed2200rpmMax. swing speed (diesel engine)8r/minFuel tank capacity440LMain Technical SpecificationMax. lifting capacity@Min. working radius13000kgMax. lifting capacity@Max. working radius2000kgMin. working radius4000mmMax. working radius14000mmMax. lifting moment52.5t.mMax. swing torque107KN.mBoom length8000mmArm length6000mmMain luffing time (Max. speed)Fall boom (electrical / diesel)≤17s/≤11sRise boom (electrical / diesel)≤21s/≤11sAuxiliary luffing time (Max. speed)Fall boom (electrical / diesel)≤20s/≤11sRise boom (electrical / diesel)≤9s/≤6sOutriggerFall stretching (electrical / diesel)≤16s/≤11sFall retracting (electrical / diesel)≤12s/≤10sOutrigger distanceLengthways4500mmTransversal4200mmTravelling SystemMax. travelling speed15km/hMin. turning radius7.6mMax. gradeability18%Min. ground clearance250mmMax. traction force109kNApproach angle15.0°Departure angle15.0°Braking distance (speed: 15km/h)≤6.5mOperating weight35000kg (including clam shell)DimensionA. Overall length11000mmB. Overall width3500mmC. Overall height3190mmD. Wheelbase3200mmE. Max. lifting height of cab5900mmF. Rear-end length/slewing radius3650mmG. Counterweight clearance1430mmH. Upper-structure width2940mm
