• Model NO.：FD36D
• Certification：ISO 9001:2000
• Condition：New
• Hydraulic Hammer Model：Yc360
• Drill Rod Diameter：85mm
• Diesel Engine Power：33kw
• Hydraulic System Pressure：20-25map
• Hydraulic System Flow：63ml,R
• Hydraulic Hammer Impact Frequency：400-800bpm
• Hydraulic Hammer Working Flow：50-90L,Min
• Hydraulic Hammer Working Pressure：12-15map
• Hydraulic Hammer Working Stroke：450-2800mm
• Piling Efficiency：2000mm,Min
• Weight：2600kg
• Diameter of Piling Steel Pipe：D114*4.5, D140*4.5, 130*130*4.5-6
• Max Towing Speed：30km,H
• Walking Speed：8-12km,H
• Hydraulic Oil Tank Volume：84L
• Transport Package：Pallet
• Specification：2600*2250*2500mm
• Trademark：FURD
• Origin：China
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. FD36D Certification ISO 9001:2000 Condition New Hydraulic Hammer Model Yc360 Drill Rod Diameter 85mm Diesel Engine Power 33kw Hydraulic System Pressure 20-25map Hydraulic System Flow 63ml/R Hydraulic Hammer Impact Frequency 400-800bpm Hydraulic Hammer Working Flow 50-90L/Min Hydraulic Hammer Working Pressure 12-15map Hydraulic Hammer Working Stroke 450-2800mm Piling Efficiency 2000mm/Min Weight 2600kg Diameter of Piling Steel Pipe D114*4.5, D140*4.5, 130*130*4.5-6 Max Towing Speed 30km/H Walking Speed 8-12km/H Hydraulic Oil Tank Volume 84L Transport Package Pallet Specification 2600*2250*2500mm Trademark FURD Origin China Production Capacity 50 Sets/Month

Product Description

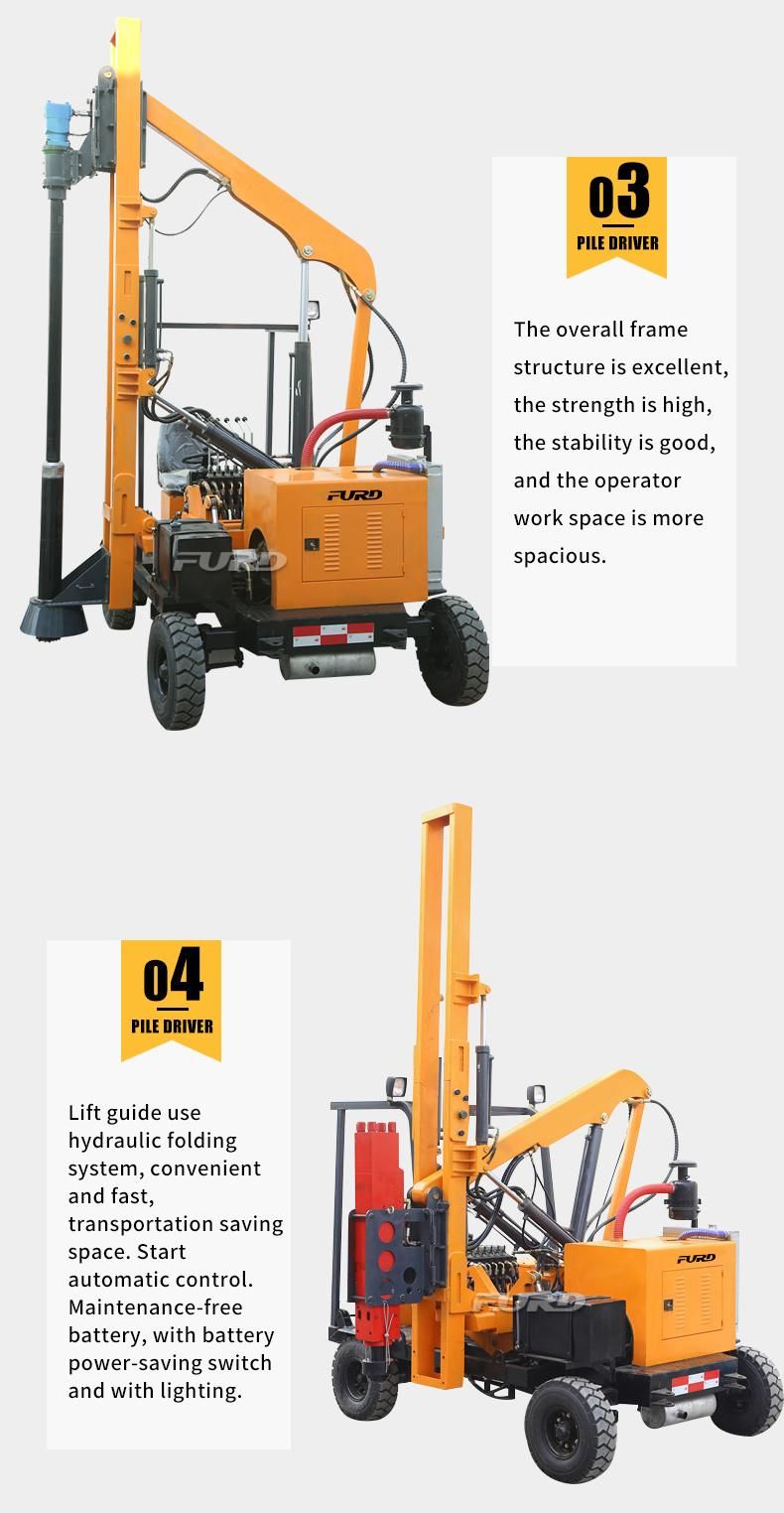

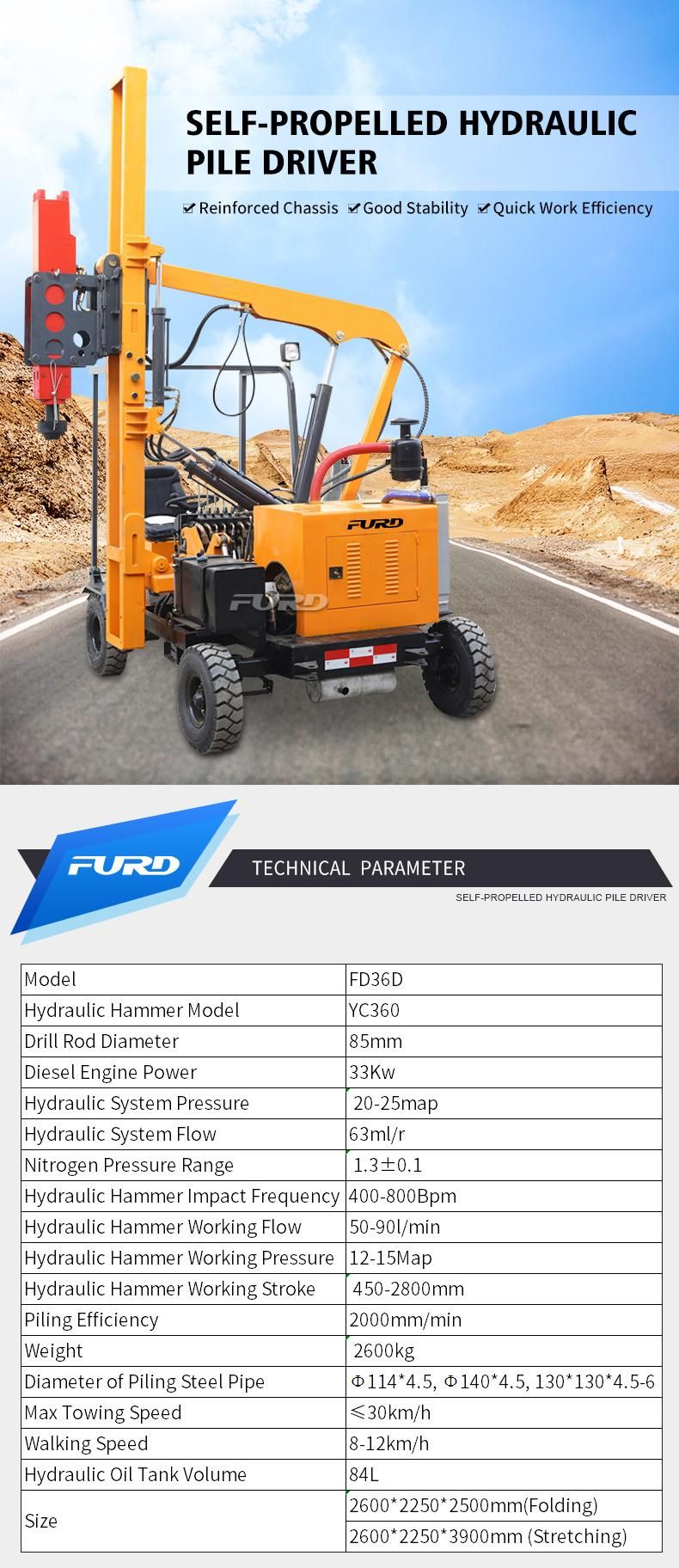

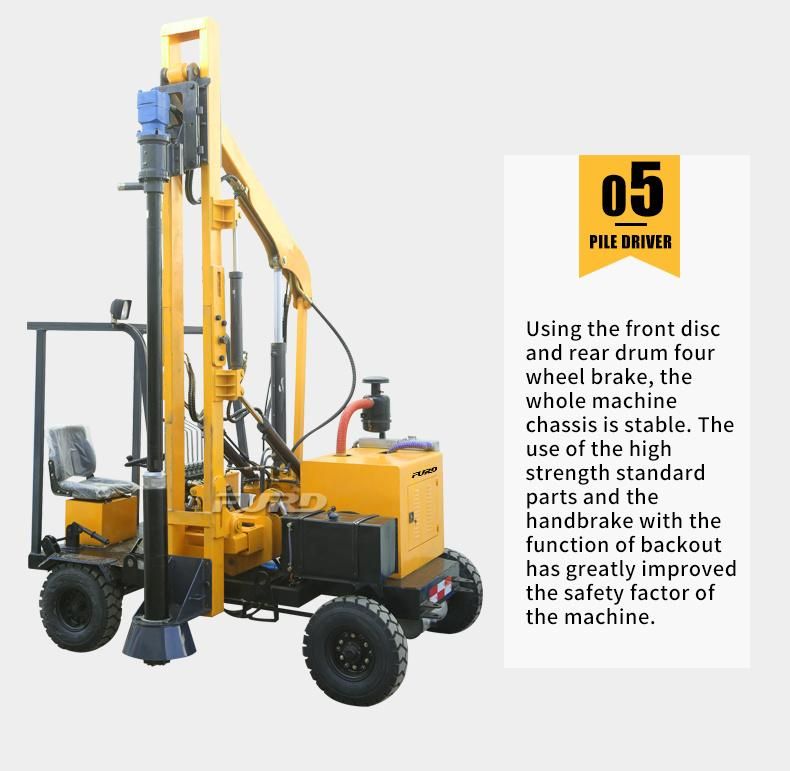

Low Price Hydraulic Pile Driver and Post Hole Digger FD36D

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it
can accomplish many functions, such as piling, pile extracting,high walking and climbing ability .The frame can be moved back
and forth,bit can be adjusted, high piling position accuracy.


Thanks to pay attention to our products. We will be appreciate to hear from you for any question.
If you need any information, please don't hesitate to contact us, we will at your service 24hours.

Welcome to send inquiry to us!
