• Model NO.：LG6150
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：14ton
• Standard Bucket：0.56cbm
• Bucket Range：0.25-0.75cbm
• Ground Pressure：45kpa
• Travel Speed：3.34,5.5km,H
• Swing Speed：11.9rpm
• Gradeability：70%
• Rated Power：90(122),2000kw(HP),Rpm
• Displacement：4.5L
• Fuel Tank：270L
• Max.Pressure of Implements：34.3MPa
• Hydraulic Oil Tank：159L
• Boom Length：4600mm
• Arm Length：2500mm
• Max. Arm Digging Force：75,85.6kn
• Transport Package：Nude Package, Suitable for Shipment
• Specification：14000kg
• Trademark：Acntruck
• Origin：China
• HS Code：8429510000
• Production Capacity：100 Pieces,Month

Model LG6150GeneralOperating weight( kg)14000Standard bucket(m³)0.56Bucket range(m³)0.25-0.75Ground pressure(kPa)45Travel speed(km/h)3.34/5.5Swing speed (rpm)11.9Gradeability35° (70%)EngineModelQSF3.8QSB4.5Rated power(Kw(hp)/rpm)86  (117) /2200 90(122)/2000Displacement (L)3.84.5Fuel tank(L)270Hydraulic SystemMax.pressure of Implements(MPa)34.3Max. flow of system( L/min)120×2Hydraulic oil tank(L)159Working DeviceBoom length(mm)4600Arm length(mm)2500Bucket radius(mm)1270Digging ForceMax. arm digging force (SAE/ISO)(kN)75/85.6Max. bucket digging force (SAE/ISO)(kN)116/132.4

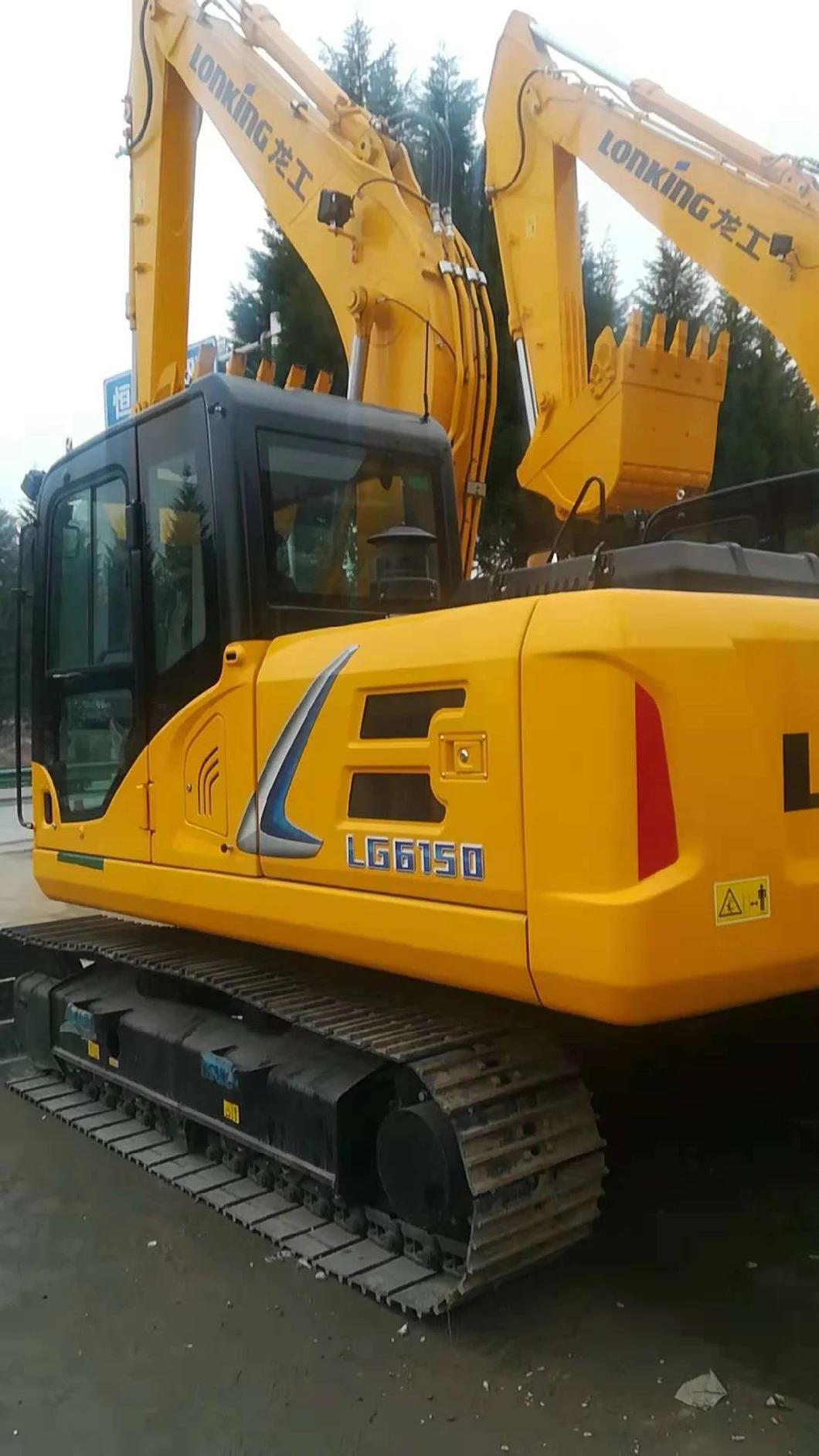

↓↓↓ Pictures about Product ↓↓↓
