• Model NO.：SWD140-II
• Condition：New
• Color：Yellow
• Track Width：500 mm
• Travel Speed：11km,H
• Blade Type：Angle
• Blade Width：3762 mm
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO
• Trademark：Sinoway
• Origin：China
• HS Code：84294990
• Production Capacity：2000 Pieces Per Year

Basic Info.

Model NO. SWD140-II Condition New Color Yellow Track Width 500 mm Travel Speed 11km/H Blade Type Angle Blade Width 3762 mm Warranty One Year Transport Package Nude Specification ISO Trademark Sinoway Origin China HS Code 84294990 Production Capacity 2000 Pieces Per Year

Product Description

SINOWAY SWD140-II Bulldozer Hihglights

Equipped with powerful WEICHAI engine such advantages as low oil consumption, little smoke, big torque reserve coefficient and high attractive force of the whole unit.
Incorporate the operation handles on both sides of the driver based on the function, and adopt pilot control for the working unit, greatly improving the driving comfort.
Electromechanically integrated and automatic electronic monitoring system is applied for real-time monitoring for completion machine.
Each maintenance center has humanized design, improving the convenience of repair and maintenance.
Several devices such as direct-pouring shovel, environmentally hygienic, angle shovel, coal-pushed shovel and soil scarifler are available for user.
Standard heating and ventilation equipment is equipped and air conditioner is optional.

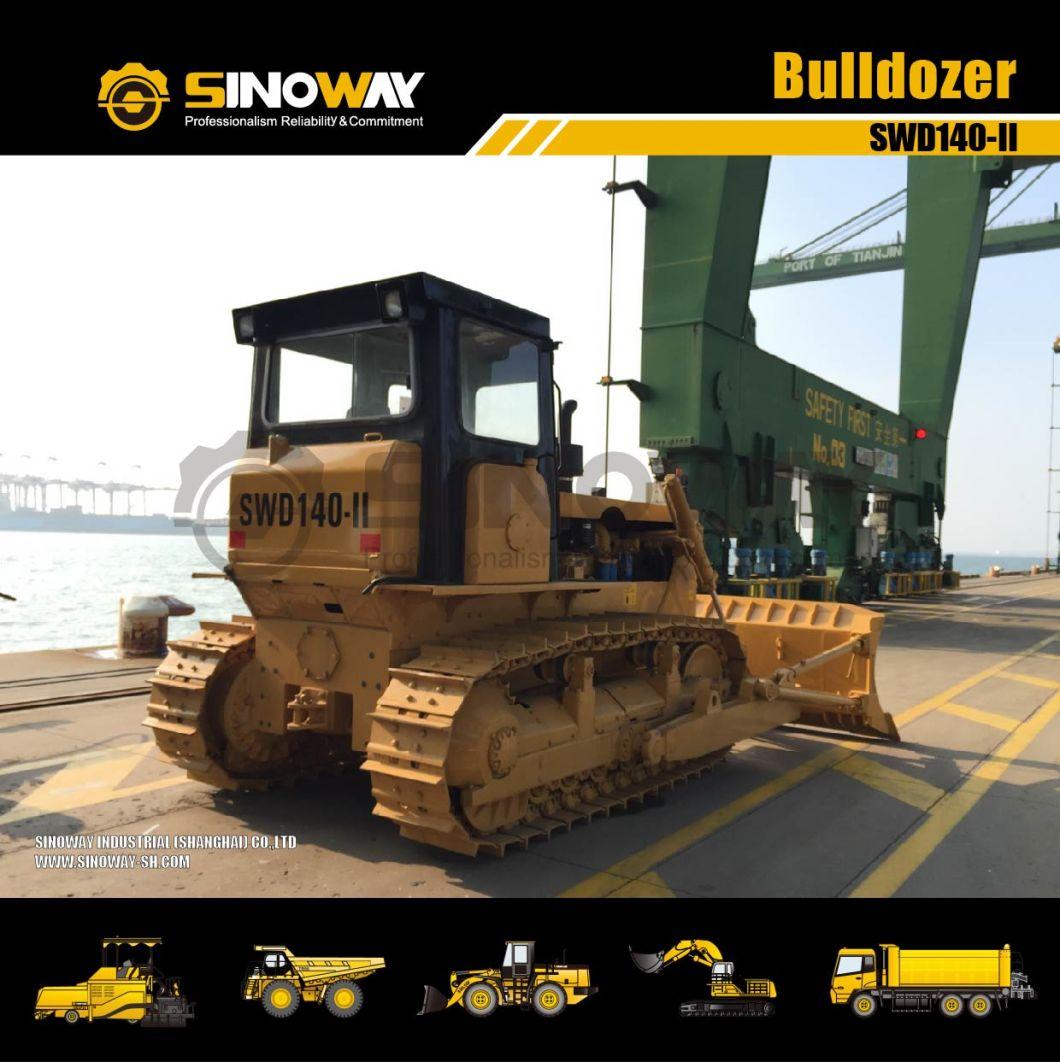

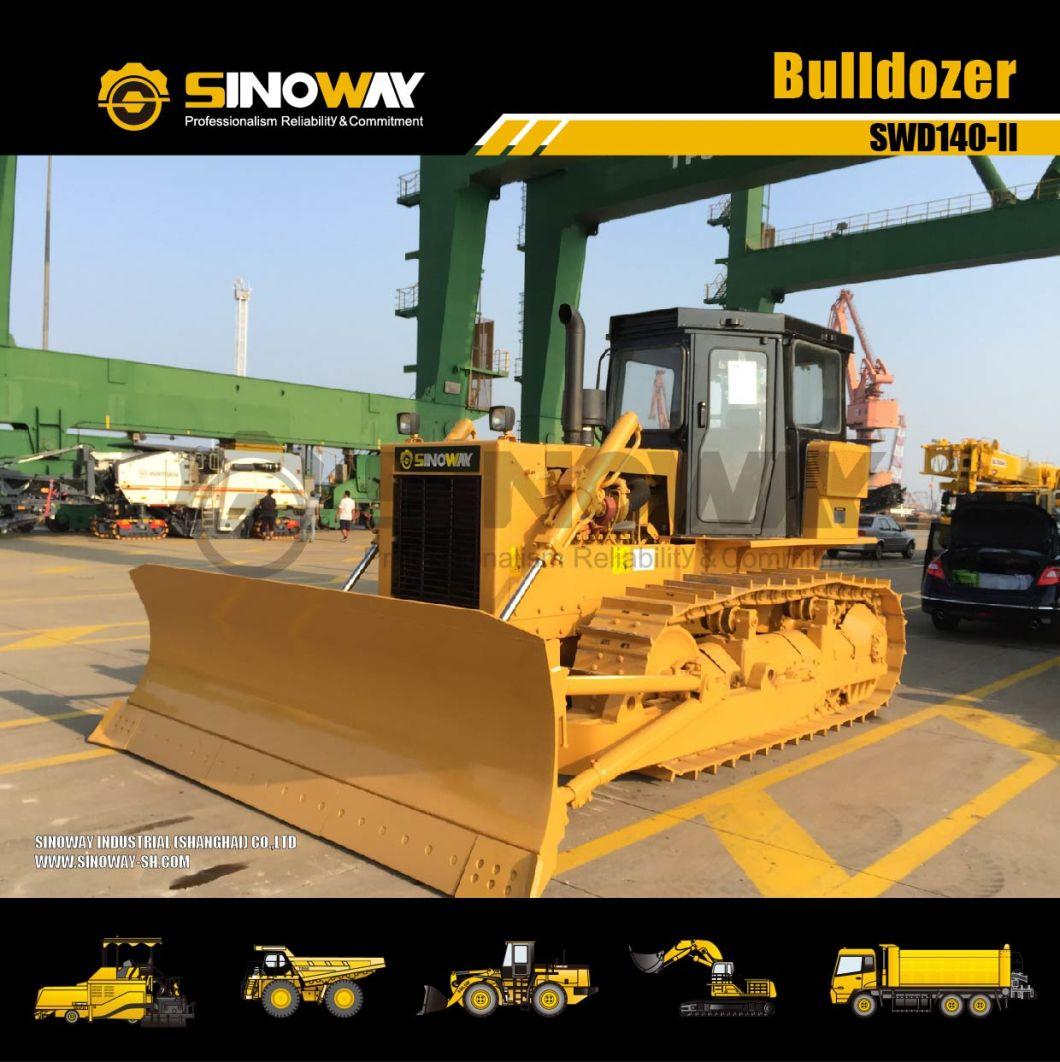

Machine Show

Specifications


Engine
Model	WHEICHAI
Type	Six-cylinder,direct injection,water-cooled
Rated power	115KW
Rated speed	1800rpm
Implement Hydraulic System
Hydraulic flow rate	180L/min
Hydraulic pressure	11.76MPa
Pump type	CBF-E100
Control valve	Hand operated
Under Carriage System
Type	Swing type of sprayed beam,suspended structure of equalizer bar
Number of track rollers (each side)	6
Number of carrier rollers (each side)	2
Number of front idler (each side)	1
Track type	Single grouser
Track tension	Hydraulic
Track pitch	203mm
Track width	500mm
Track gauge	1880mm
Track length on ground	2465mm
Ground clearance	353mm
Grade ability	30°/25°
Main Technical Specification
Dozer type	Angle
Operating weight	16300kg
Ground pressure	0.0622MPa
Overall dimensions	5180×3762×3042mm
Blade width	3762mm
Max. digging depth	400mm
Blade capacity	4.0m³
Dozer type	Tilt
Operating weight	16200kg
Ground pressure	0.0618MPa
Overall dimensions	5099×3297×3042mm
Blade width	3297mm
Max. digging depth	400mm
Blade capacity	4.5m³
Max.tractive force	123KN
Max.lift above ground	920mm
Transmission System
Gear box	Mechanical
Final drive	Double reduction with spur gear and segment sprocket,which are sealed by duo-cone seal
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F5/R4
Forward/Reverse I	2.52/3.53
Forward/Reverse II	3.55/4.96
Forward/Reverse III	5.68/7.94
Forward/Reverse IV	7.53/10.53
Forward V	11
Service Capacities
Fuel tank	230L
Water tank	70L
Implement oil tank	110L
Steering clutch	Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated
Steering brake	Brake is oil two direction floating band brake operated by mechanical loot pedal

Assembly Line


Fields Service

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
