• Model NO.：M910
• Type：Small Loader
• Product：Mini Wheel Loader
• Engine：Perkins,Yanmar,Kohler,Chinese
• Power：30-70HP
• Max. Lifting Height：3000-4000mm
• Bucket Capacity：0.5-1.5m3
• Operating Weight：1600-3000kg
• Oil Flow：30-100L,Min
• Wheel Drive：4WD
• MOQ：1 Set
• Warranty：12 Months
• Transport Package：3 Sets,20′gp; 6 Sets,40′hq
• Specification：2690X1240X2285mm
• Trademark：STEEL CAMEL
• Origin：Shandong
• HS Code：8429510000
• Production Capacity：800 Sets Per Year

M910 M915M920Dimension with cabin (LxWxH)2690x1300x2285mm3400x1500x2300mm3650x1500x2350mmMax.lifting height (boom retract) 2512mm3000mm3200mmMax.lifting height (boom extend) 3030mm3562mm3900mmPulling force12kN18kN19kNBucket capacity0.5cbm0.8cbm1 cbmMax. loading capacity1000kg1500kg2000kgMin. turning radius2120mm2800mm3100mmTurning angle45⁰45⁰45⁰Min. ground clearance268mm330mm330mmSpeed0-10 km/h0~12~24km/h0~12~24km/hOperating weight1850 kg2300kg2600kgStandard tire26X12-1231X15.5-1531X15.5-15Tire pressure2.8 bar2.8 bar2.8 barOil tank capacity45L80L80LPressure190bar190 bar190barWorking oil flow33.5L/minx241L/min x 250L/min x 2Tracking oil flow78L/min120L/min120L/minOil model(mineral oil)L-HL46L-HL46L-HL46Fuel tank capacity30L42L52LBattery60Ah, 12V60Ah, 12V60Ah, 12VEnginePerkins/Yanmar/HatzPerkins/Yanmar/HatzYanmar/Kohler/ChineseRated power33-48hp50-60hp68hp-75hp

Loader+Tractor, one Multi-purpose helper for all your works

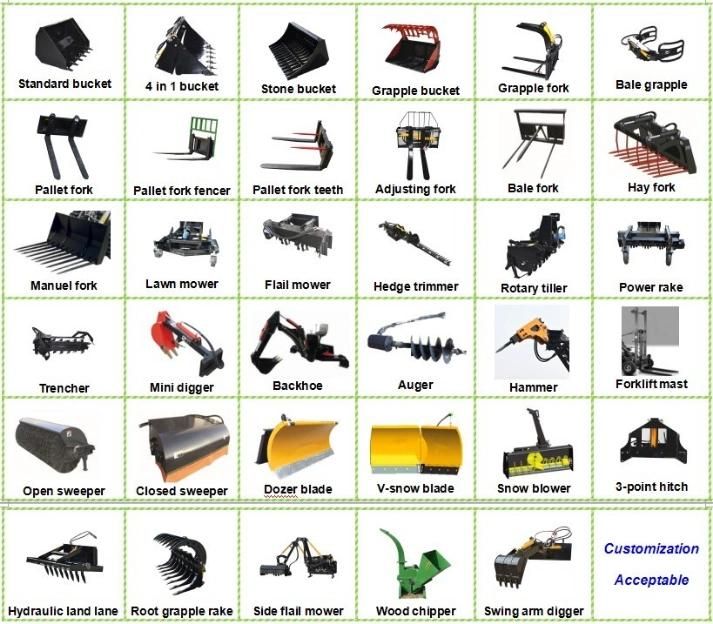

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.
Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.
STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.


 Company:







Service:



FAQ:

Are you manufacturer?

Yes, we are factory in Taian city, Shandong province, near Qingdao port.
To our factory by fast train, from Shanghai, around 3 hours; from Beijing, around 2 hours.

Do you have stock?

Yes, stock for standard configuration, fast delivery.
If customized, production with order. Delivery time depends on quantity.

How to ship the machines?

1) EXW/FOB: if you have reliable forwarder in China, you can pick up machines in our factory or arrange shipment.
2) CNF/CIF: if you do not have forwarder, we can ship the machines to your port. You handle importing matters.
3) DDU/DDP: If you prefer door to door, we can handle everything. You just wait for the machines at your place.

What will you do if I come across problems with the machine during usage?

1) First of all, all your mails or feedback will be responded immediately.
2) We will figure out what problems you have, then offer relative instructions with photos or videos.
3) If necessary, we can ask our nearest dealer or send our engineer to help you.

If any other query, please do not hesitate to send me an inquiry. I will feedback asap.
