• Model NO.：M630-60
• Type：Medium-sized Loader
• Categoery：Multifunction Farming & Construction Machine
• Name：Telehandler Machine
• Engine：Diesel Perkins,Yanmar,Kohler
• Rated Power：70~100HP
• Bucket Capacity：0.5cbm, 0.8cbm, 1cbm, 1.5cbm
• Lifting Height：6m, 7m, 9m, 12m Telehandler
• Weight：6000kg, 7000kg, 10000kg
• Driving Type：Hydrostatic 4X4
• Steering：4 Wheel Steering
• Speed：12,24km,H Two Speed
• Telehandler Brands：Jcb, Manitou, Dieci, Merlo, Genie,Gehl

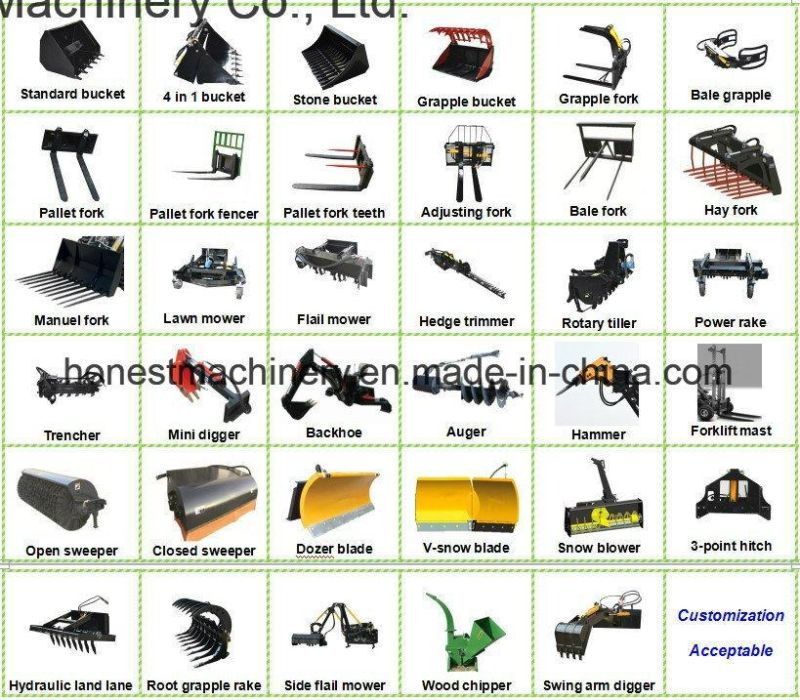

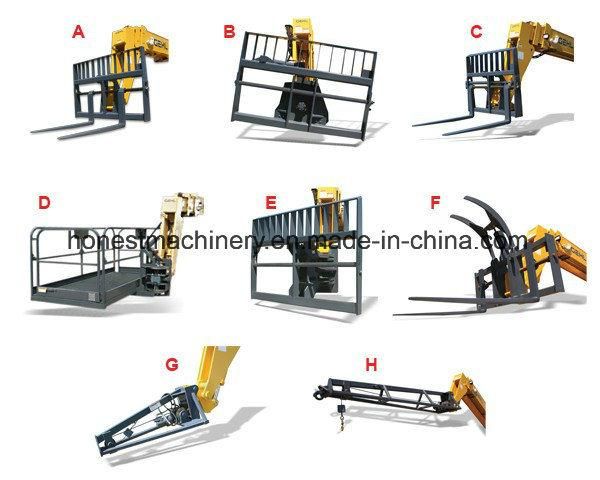

• Attachments：Quick Hitch, Forklift, Bale Clamp, etc.
• Color：Yellow, Red, Green, Blue, White, Customize
• Warranty：1 Year
• After Sales Service：Free Spare Parts, Technical Support
• Transport Package：Container
• Specification：3 ton telescopic loader
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：600 Sets, Year

Basic Info.

Model NO. M630-60 Type Medium-sized Loader Categoery Multifunction Farming & Construction Machine Name Telehandler Machine Engine Diesel Perkins/Yanmar/Kohler Rated Power 70~100HP Bucket Capacity 0.5cbm, 0.8cbm, 1cbm, 1.5cbm Lifting Height 6m, 7m, 9m, 12m Telehandler Weight 6000kg, 7000kg, 10000kg Driving Type Hydrostatic 4X4 Steering 4 Wheel Steering Speed 12/24km/H Two Speed Telehandler Brands Jcb, Manitou, Dieci, Merlo, Genie,Gehl Attachments Quick Hitch, Forklift, Bale Clamp, etc. Color Yellow, Red, Green, Blue, White, Customize Warranty 1 Year After Sales Service Free Spare Parts, Technical Support Transport Package Container Specification 3 ton telescopic loader Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 600 Sets/ Year

Product Description

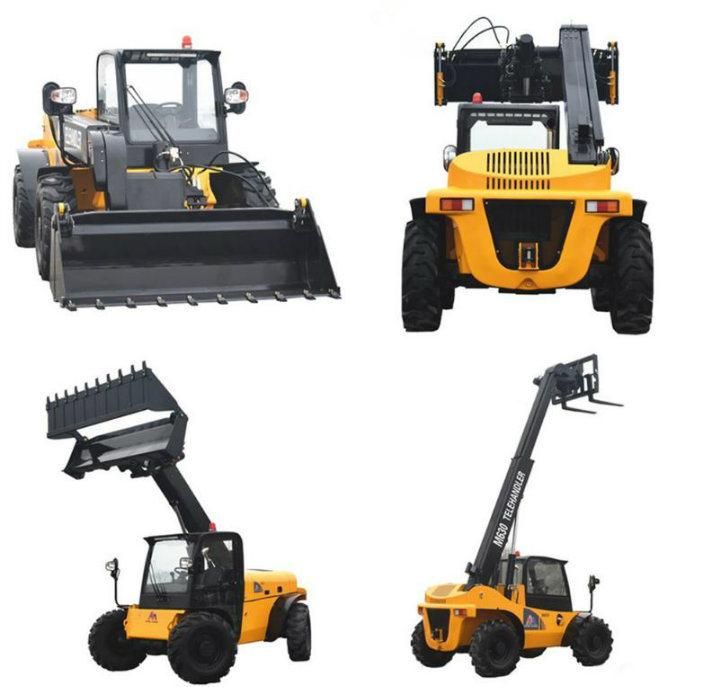

Agriculture LOADALL machine M630-60 telescopic loader telehandler

Good features of STEEL CAMEL brand telescopic forklift handler loader:

1.Hydrostatic 4 wheel drive, powerful, efficient and smooth

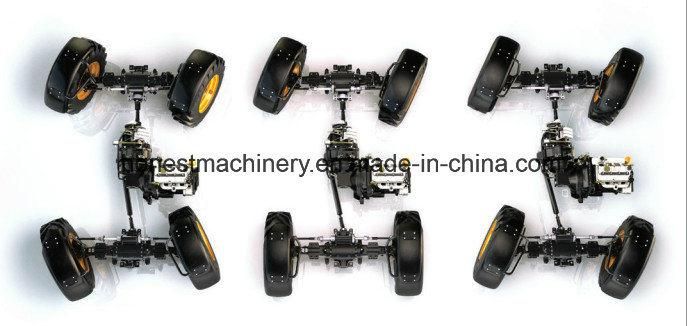

2. 3 different driving mode, 4 wheel steering, two wheel steering, crab    steering, have fantastic manuverability in the rough farming and construction terrain.
 3.Compact size, only 2090mm wide, 2150mm high, enable it to come through the hourse door. 4.Hydraulic quick coupling system can hook various attachments for different work 5.3ton capacity, 6m reach, most needed size for material handling work 6.ROPS cabin, electrical loading indicator guarantee the operating safety. 7.One hand joystick control, simple and convenient 8.Heavy duty engine and drive axle, powerful and strong 9.Wide view luxuary cabin, best operating comfort. 10.Engine speed regulation, never power off.



Technical data:


Engine	Yanmar/Chinese/Kohler EPA Tier 4
Rated power	55~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	5700mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

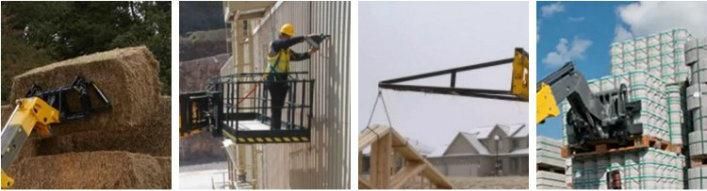

Applications:

The Telescopic handler forklift is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-mechanical transmission, hydraulic power steering, hydraulic brake, rear-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.

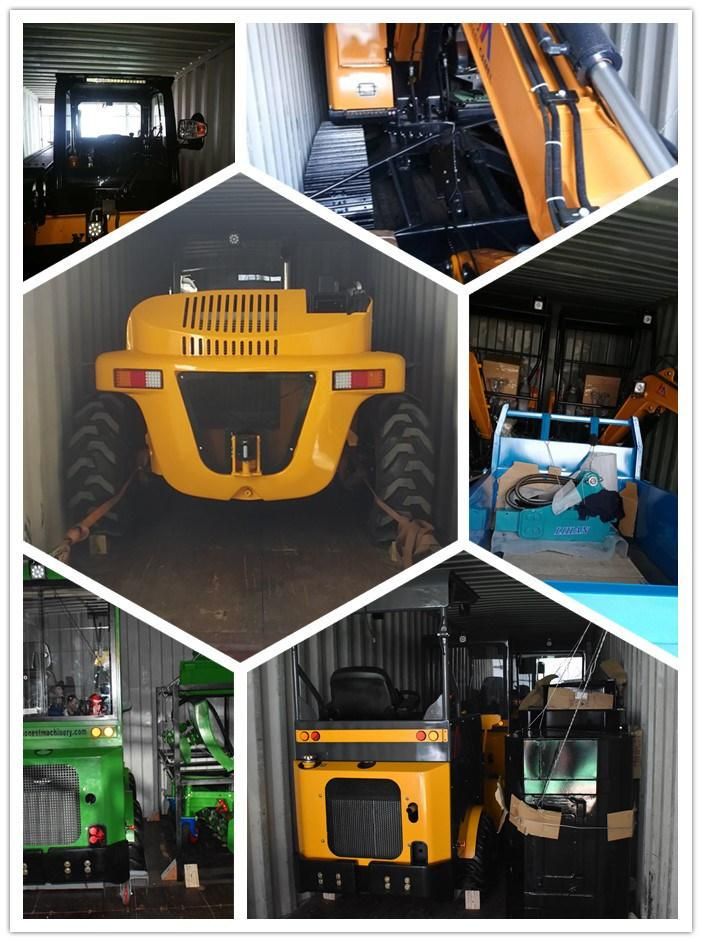

Packing & Delivery:

Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......

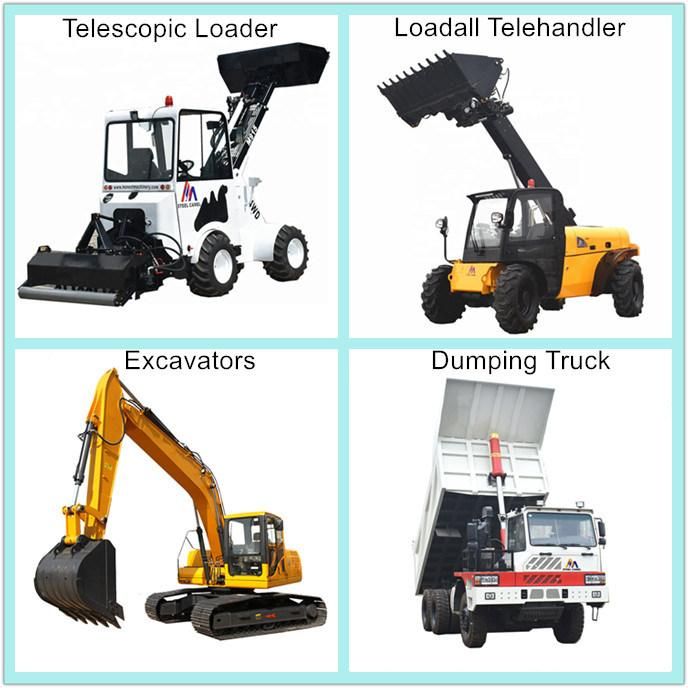

STEEL CAMEL products range:

We produce a wide range of machinery, telescopic loader, telehandler, excavators, dump trucks, and loader attachments. If any of them be of your interest, please inquiry by product name, I will send details for your information.





Contact us:
 With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing directorMobile0086 136 1548 7873Office line: 0086 538 658 0766

STEEL CAMEL PRODUCT--LESS SERVICING, MORE SERVICE, RELIABLE CHOICE.
HONEST MACHINERY TEAM--HONEST, PROFESSIONAL,GOOD SERVICE,TRUSTWORTHY PARTNER.
