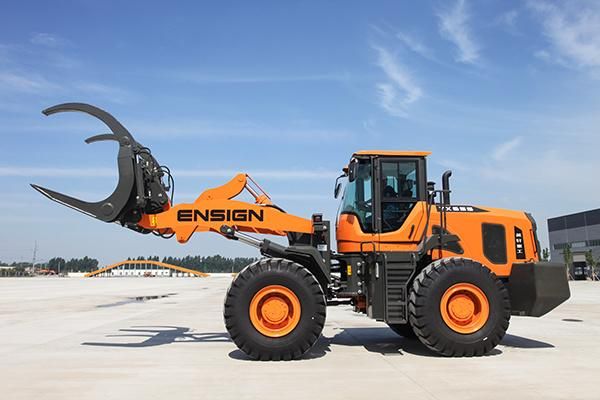

Ensign New Generation Agricultural Machinery Construction Small Front End Wheel Loader

Ensign Heavy Industries Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydraulic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：YX636
  • Type：Medium-sized Loader
  • Warranty：2 Year
  • Delivery Time：10-30 Days
  • Bucket：1.8 M3 or Bigger
  • Engine：Deutz Engine
  • Engine Power：92kw
  • Color：Orange
  • Usage：Universal Type
  • Transport Package：1 Unit in 1*40 Hq
  • Specification：6960*2520*3210mm
  • Trademark：ENSIGN
  • Origin：Shandong Province, China
  • HS Code：84295100
  • Production Capacity：20000 Pieces,Year

Description

Bucket capacity1.2~3.0(standard bucket 1.8m3)Total cycle time(lift, dump& lower)≤9.2sRated load3000kgDump height2950mmOverall operating weight10200kgDump distance1050mmMax. traction force≥100kNMin. ground clearance360mmMax. breakout force≥100kNWheel base2700mmGrade ability30°Wheel tread1850mmMin. turning radius(outer side of the bucket)5880mmDeparture angle30°Min. turning radius(outer side of the tire)
 5500mmSteering angle(left & right)35°Specifications:
1.0 Engine Details
  (1) Model:Weichai  Deutz Engine WP6G125E23
  (2) Engine Type:In-line arrangement,water-cooled,four-cycle diesel engine
  (3) Rated Power:92KW
  (4) Rated Speed:2200 r/min(rpm)

2.0 Transmission System
  (1) Type:Planetary power shift
  (2) Torque converter type:Single stage, 3 elements
  (3) Gears:4 forward, 2 reverse

3.0 Braking System
 (1) Service brake:Air-over-oil caliper disc
 (2) Parking brake:flexible shaft caliper disc

4.0 Steering system
(1) Type:Load sensing hydraulic
(2) Oil pump type:gear pump

5.0 Working device hydraulic system
(1) Hydraulic system pressure:16 Mpa
(2) Control type:Joystick
(3) Oil pump type:Gear pump

6.0 Tire
(1) Specification:17.5-25
(2) Tread pattern:L-3

7.0 Bucket
  (1) Bucket capacity:1.8 m3
  (2) Bucket type:Heavy-duty bolt on teeth
  (3) Rated Load:3000kg

Optional Configurations:
 Quick Hitch
  Joystick
  A/C
  Third function valve
  Longer arm
  Rops/Fops
  Tyre Chain
Optional Attachments:
 Rock Bucket
 Pallet/Grass Fork
 Grapple Forks/Wooden Forks
 Grapple Bucket
 Snow Bucket
 New Wooden Forks
 Hydraulic Snow Blade
 Sweeper
 Snow Blower
  4 In 1 Bucket
Ensign New Generation Agricultural Machinery Construction Small Front End Wheel Loader
 We Are The Factory!
We Only Produce The High Quality Wheel Loader!
The information above just for you referrence ,if you want to know more about our products and have questions about them ,please contact me 24h freely ,I am delighted to serve you . Moreover , welcome to visit our website@ensign.en.made-in-china.com and our factory in china.
