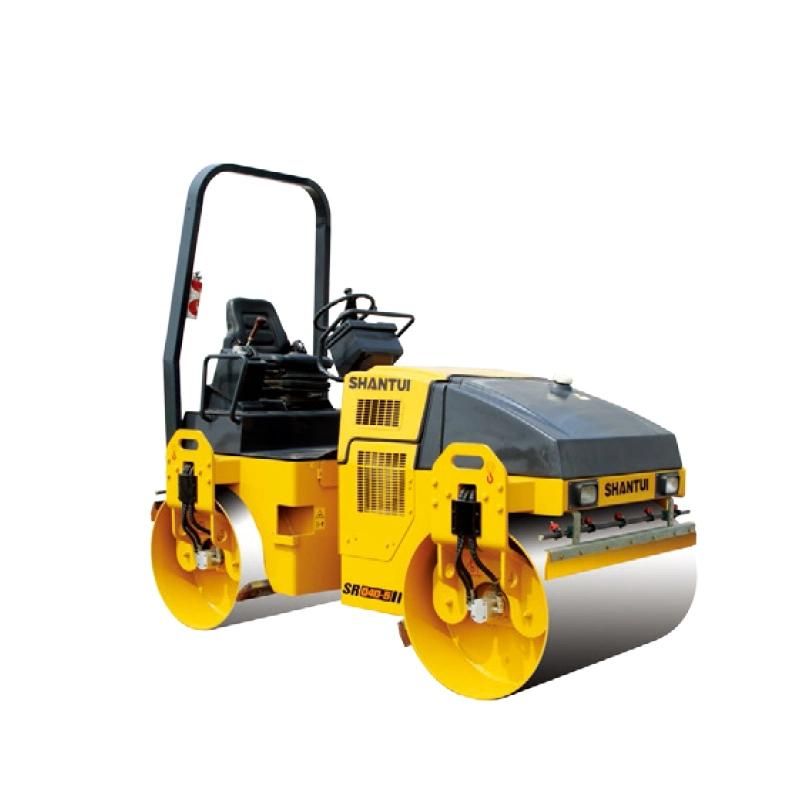

4ton Shantui Double Drum Mechanical Vibration Road Roller (SRD04)

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Available
  • Warranty：2 Years
  • Type：Road Roller
  • Working Method：Vibration
  • Axle：Uniaxial Monowheel
  • Grinding Wheel Type：Tire Grind

Base Info

  • Model NO.：SRD04
  • Compaction Depth：1400mm
  • Engine Type：Diesel Engine
  • Travel Speed：12km,H
  • Centrifugal Force：40
  • Certification：CE
  • Condition：New
  • Transport Package：Nude
  • Specification：As below
  • Trademark：Shantui
  • Origin：Hunan
  • HS Code：842940190
  • Production Capacity：1000 Pieces,Month

Description

Basic Info.

Model NO. SRD04 Compaction Depth 1400mm Engine Type Diesel Engine Travel Speed 12km/H Centrifugal Force 40 Certification CE Condition New Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 842940190 Production Capacity 1000 Pieces/Month

Product Description

4Ton Shantui Double Drum Mechanical Vibration Road Roller (SRD04)Rich configuration

Electrically controlled water-spray, highefficient and water- saving
Emulsified liquid tank
Wear-resistant scraper can be lift and fixed during transportation

Manipulation

Forward/reverse and vibrating all controlled by the integrated control lever.
The engine start is with neutral safty structure realised by the handle
Integrated micro computer control panel

Hydraulic system

It's applied with double drive traveling system composed of imported plunger pumps and plunger motors and is equipped with automatic parking brake mechanism.
The vibrating drum is driven by imported hydraulic parts, with free changeover between single and double vibrating modes.
The hydraulic articulated steering system features flexible motions and effectively adapts to diversified working conditions.

Engine

Equipped with imported Yanmar engine, stronger power with less fuel consumption


Parameter nameSRD04
Performance parameters
Operating weight (Kg)4200
Exciting force (KN)40
Vibration frequency (Hz)60
Nominal amplitude (mm)0.5
Ground pressure (KPa)-
Gradeability (%)40
Engine
Engine modelYanmar 488
Rated power/rated speed (kW/rpm)35kw/3000rpm
Overall dimensions
Overall dimensions of machine (mm)3000*1670*2200
Driving performance
Forward speed (km/h)0-12
Reversing speed (km/h)0-12
Chassis System
Wheelbase (mm)1950
Tank capacity
Fuel tank (L)70
Working device
Compacting width(mm)1400
