• Model NO.：BY1000
• Drum Material：Hot DIP Galvanizing or Plastic-Spray
• Engine：13HP 4stroke Gasoline or Diesel
• Loading Capacity：1000kg
• Hydraulic Pump：Piston Pump, Gear Pump
• Standard Track Width：180mm(7.1in)
• Max Travel Speed：5.0 Km,H
• Transmission System：Hydraulic System
• Transport Package：Retort Stand or Plywood Case
• Specification：CE
• Trademark：ANT
• Origin：Nantong City, Jiangsu Province, China
• HS Code：84289090
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. BY1000 Drum Material Hot DIP Galvanizing or Plastic-Spray Engine 13HP 4stroke Gasoline or Diesel Loading Capacity 1000kg Hydraulic Pump Piston Pump/ Gear Pump Standard Track Width 180mm(7.1in) Max Travel Speed 5.0 Km/H Transmission System Hydraulic System Transport Package Retort Stand or Plywood Case Specification CE Trademark ANT Origin Nantong City, Jiangsu Province, China HS Code 84289090 Production Capacity 1000PCS/Year

Product Description

Wheel dumper/power barrow/ mini dumper/garden loader

This power barrow is very powerful, built for the tough outdoors, helping you reach new heights, it can load up to 1000KG and is an essential machine at the fram, stable, work site and at home for your gardening and building projects. It is safe, convenient and high efficiency, suitable for carrying almost everything like brick, cement, sand, stone and so on.

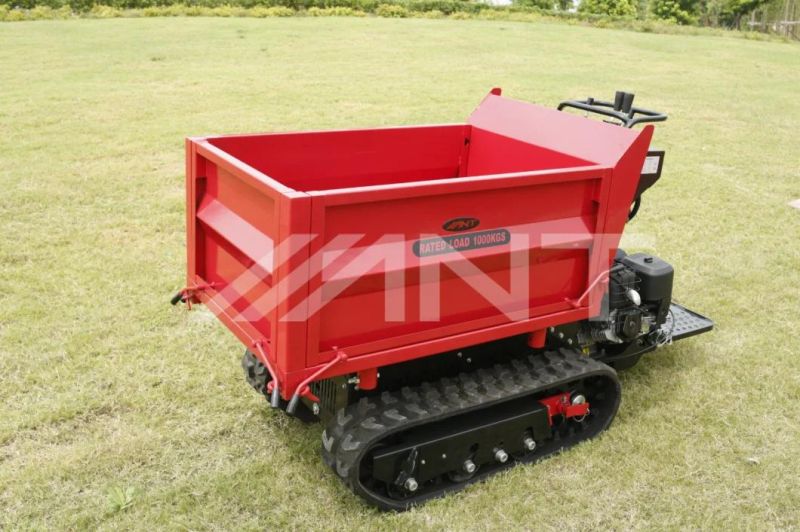

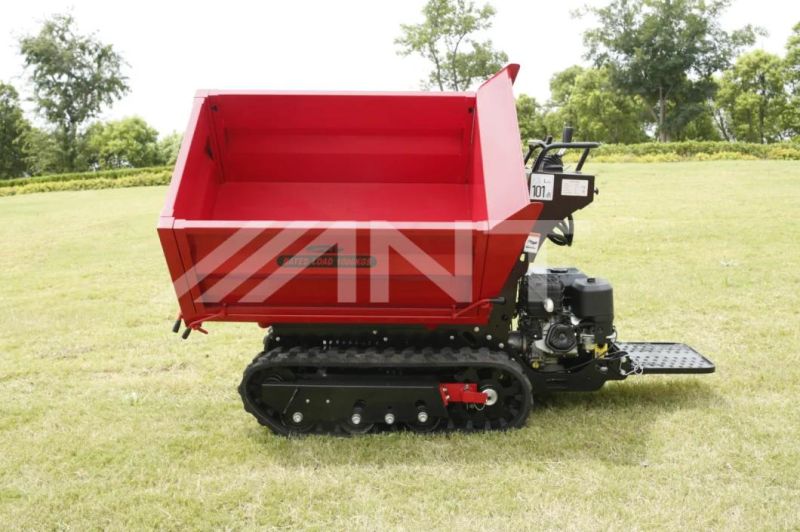

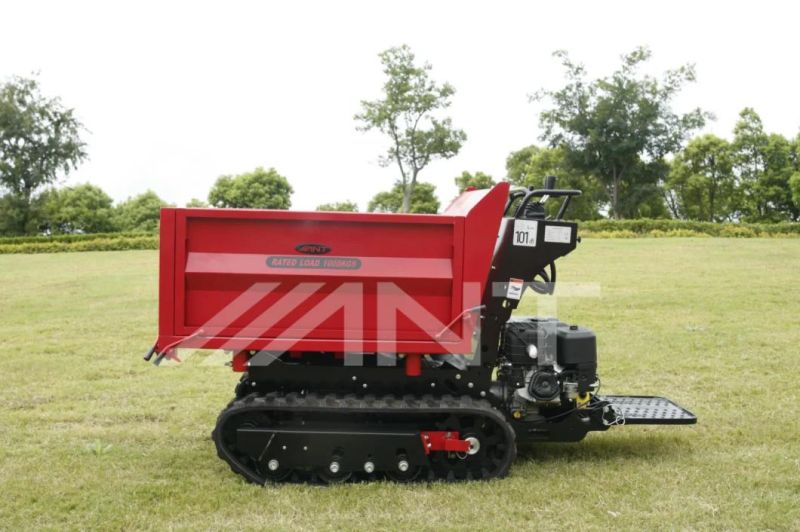

Tracked power barrow  BY1000

Engine : Mitsubishi 13HP or HONDA GX390 13HP or CHINA Diesel Engine

Dry Weight: 480kg

Transmission system                         Hydraulic system

Type: Hydrostatic                                  Hydraulic Pump: Piston Pump

Hydraulic Pump: 2xvariable displ.     Flow Std: 1x13.5l/min(1x3.6gpm)

Flow: 2x32.4l/min(2x8.5gpm)              Hi-flow: 1x22l/min(1x5.8gpm)

Hydraulic Motors: 2x orbital                  Max Pressure: 150bar(2180psi)

Brake Parking: Mechanical                   Main Valve: 2-3way

Cooler system oil: air

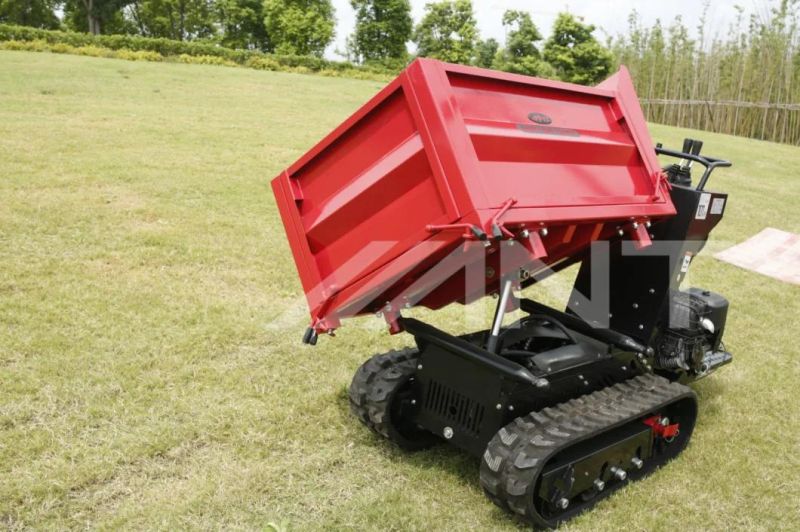

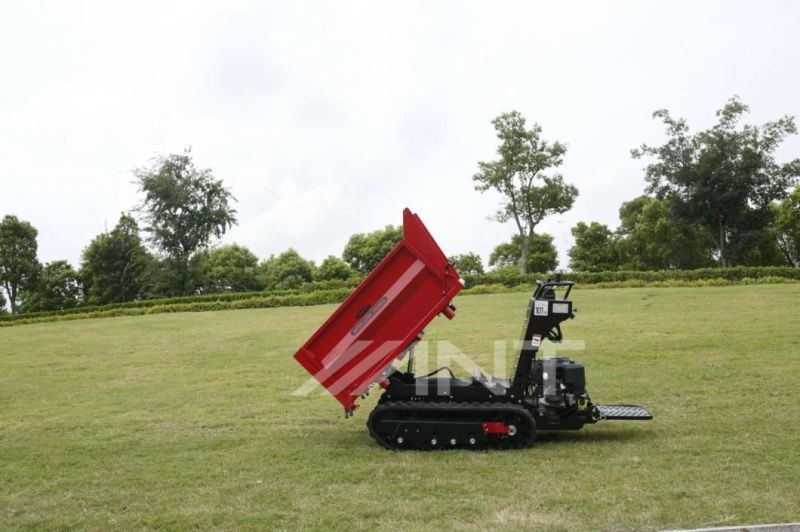

Skip Tipping System: Hydraulic

Loading Capacity: 1000kg

Standard Track Width: 180mm(7.1in)

Track roller: 3

Rockling rollers and track tensioning: Yes

Max Travel Speed: 0-3.9mph

Dimension: 2640mm x 800mm x 1140mm

SELF LOADING  SHOVEL: NO

HI-TIP: NO
