• Model NO.：BY300
• Condition：New
• Color：Red
• Weight：131kg
• Dimension：1700*890*1050mm
• Max Loading Weight：300kg
• Engine：5.5HP Gasoline Engine
• Optional Engine：Honda, B&S, Loncin
• Hydraulic Pump：Hydro-Gear with International Warranty
• Speed：Stepless Speed Changes
• Drum Material：Hot DIP Galvanizing or Plastic-Spray
• Driven：Chain Driven or Wheel Driven
• Unloading：Manual or Self Loading
• Transport Package：Retort Stand or Plywood Case
• Specification：CE
• Trademark：ANT
• Origin：Nantong City, Jiangsu Province, China
• HS Code：84289090
• Production Capacity：500PCS,Month

Basic Info.

Model NO. BY300 Condition New Color Red Weight 131kg Dimension 1700*890*1050mm Max Loading Weight 300kg Engine 5.5HP Gasoline Engine Optional Engine Honda, B&S, Loncin Hydraulic Pump Hydro-Gear with International Warranty Speed Stepless Speed Changes Drum Material Hot DIP Galvanizing or Plastic-Spray Driven Chain Driven or Wheel Driven Unloading Manual or Self Loading Transport Package Retort Stand or Plywood Case Specification CE Trademark ANT Origin Nantong City, Jiangsu Province, China HS Code 84289090 Production Capacity 500PCS/Month

Product Description

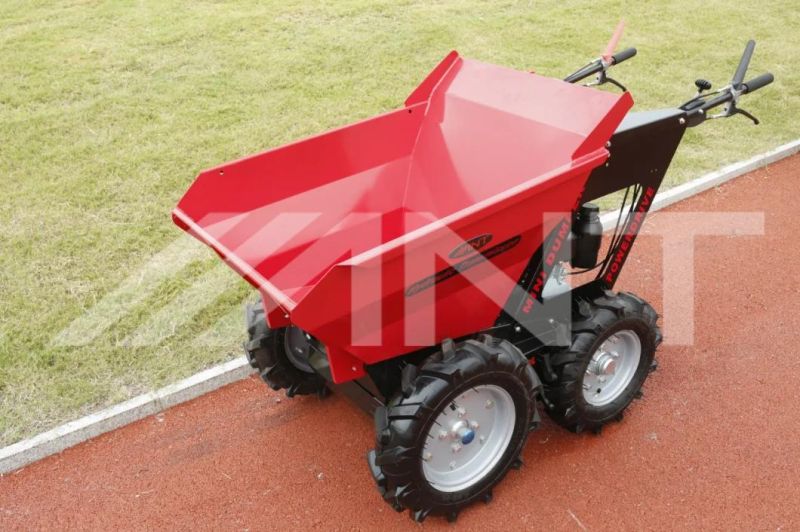

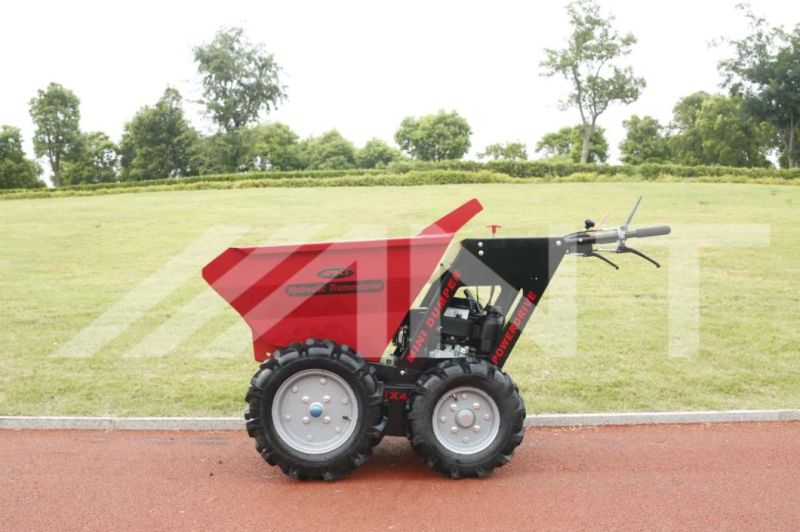

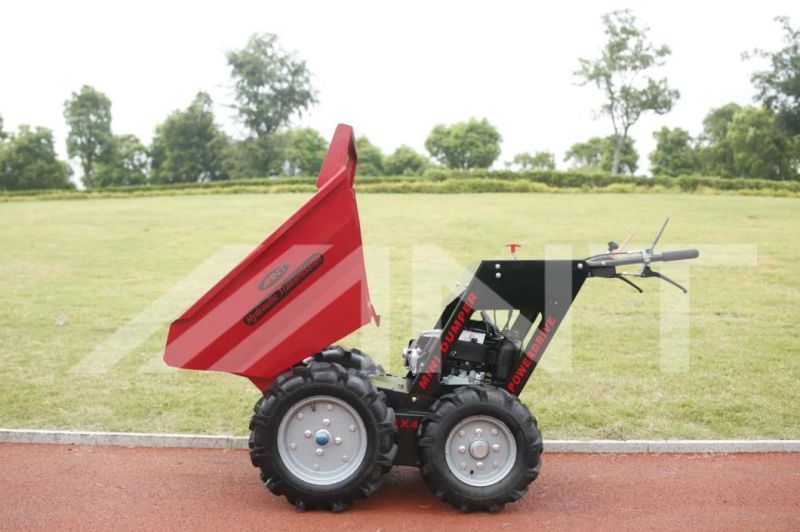

Mini dumper BY300

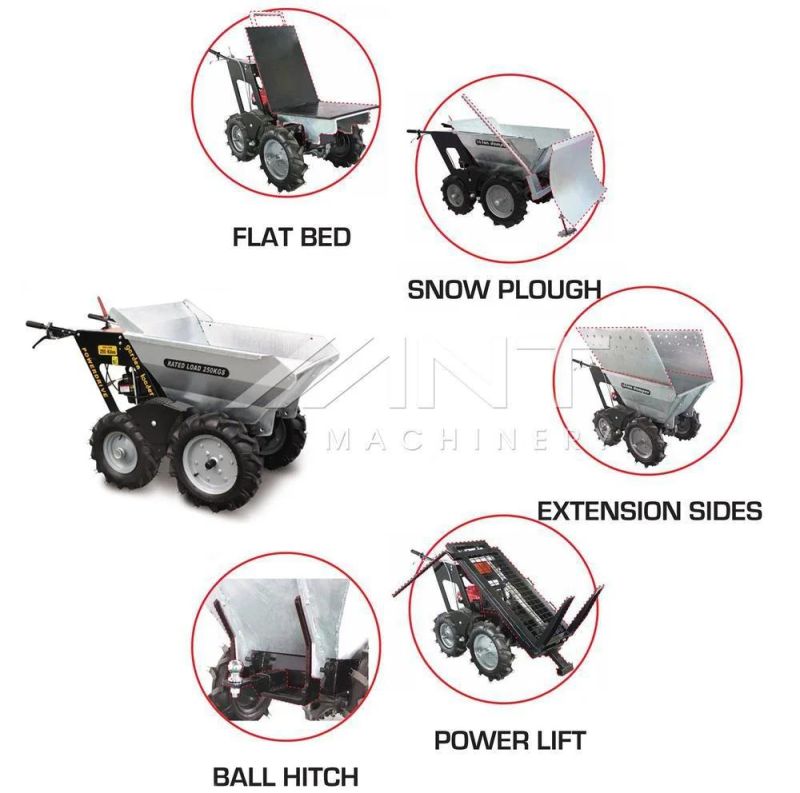

This model is hydraulic design and 4wheels driven. The main parts are imported from USA with global warranty. The max loading weight is 300kgs and the width is 78cm narrow. It's powerful to carry bricks, sand, stones, wood, crops, fruits around varous sites. There are rich accessries to add the value, such as flat bed, extension sides, snow plough, ball hitch, power lift and so on.



MODEL	BY300
Engine	Honda GXV160 5.5HP
Engine type	4stroke,1cylinder,OHV,air-cooled
Transmission	hydro-gear assembled in USA
Speeds	stepless forward and reverse
Capacity	6cu.ft.(170L) or 300kgs
Brake	Disk
Cabels	protected
Wheels	Front 400×10,4 ply,rear 400×8
Drum Material	red plastic spray
Packing
Weight	131kgs
Dimension	128*74*108(L*W*H cm)
20GP	24PCS
40GP	54PCS
