• Model NO.：XM200K
• Condition：New
• Transport Package：Nude
• Specification：5255*2480*3245mm
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• HS Code：84292090
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. XM200K Condition New Transport Package Nude Specification 5255*2480*3245mm Trademark ORIEMAC Origin Jiangsu, China HS Code 84292090 Production Capacity 5000PCS/Year

Product Description

447kw Cold Milling Machine Xm200K
Product Description
XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc. For renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. Cement road surface roughening and dislocation smothness. The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

XM35 Performance and characteristic

* Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.

* Compact three-wheeled machine with front-wheel drive. The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
* The front steering driving axie has large steering angle and small turming radius, can mill along the manhole covers.

* The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.

* The imported hydraulic elements have high working reliability.

* Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.

* The integrated welded frame has strong anti-vibration and anti-torsion strength.

* Hydraulic handheld breakers rumble strip equipment fine milling drum and 350mm width milling drum can be selected.
Technical Parameters


Model	XM200K
Max. milling width(mm)	2000
Max. milling depth(mm)	320
Tip distance (mm)	15
Number of tools	168
Drum diameter with tools(mm)	980
Engine Model	QSX15
Engine Manufacturer	Cumins
Rated speed(rpm)	2100
Rated power(kW)	447
Fuel tank(L)	1400
Hydraulic oil  tank(L)	400
Water tank(L)	3400
Operating speed(m/min)	0-83
Travel speed(km/h)	0-5
Groundability(%)	80%
Theoretical discharge capacity (m³/h)	330
Operating weight (Kg)	34000
Ground clearance(mm)	320
Dimension LxWxH(mm)	7300x2500x3000
Belt conveyor LxWxH(mm)	8000*1150*1500

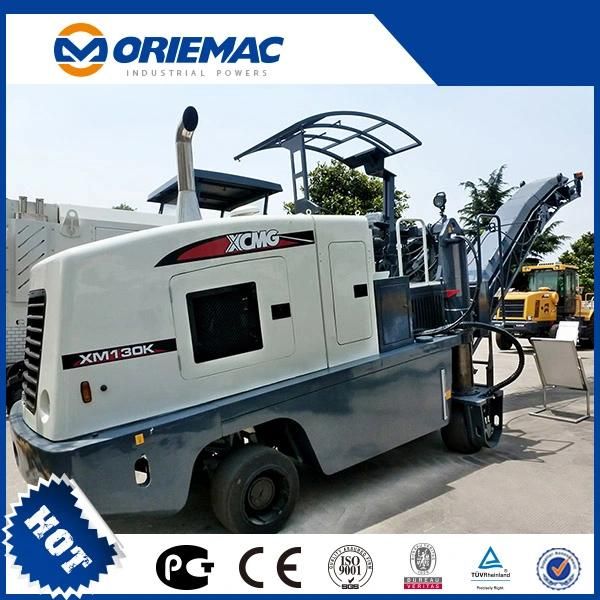

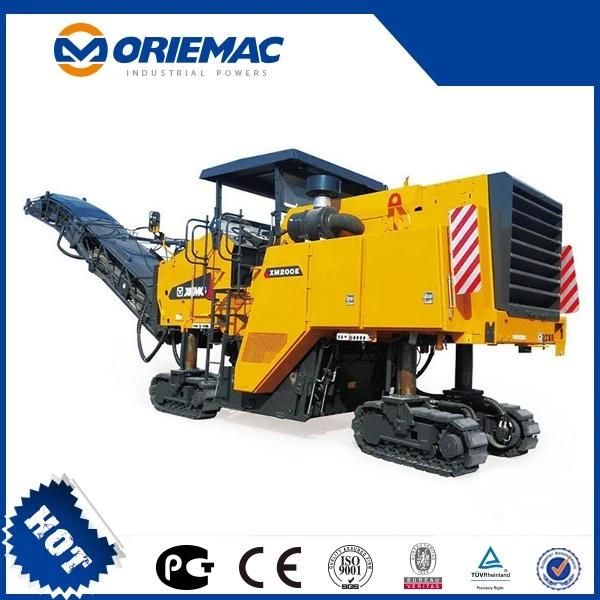

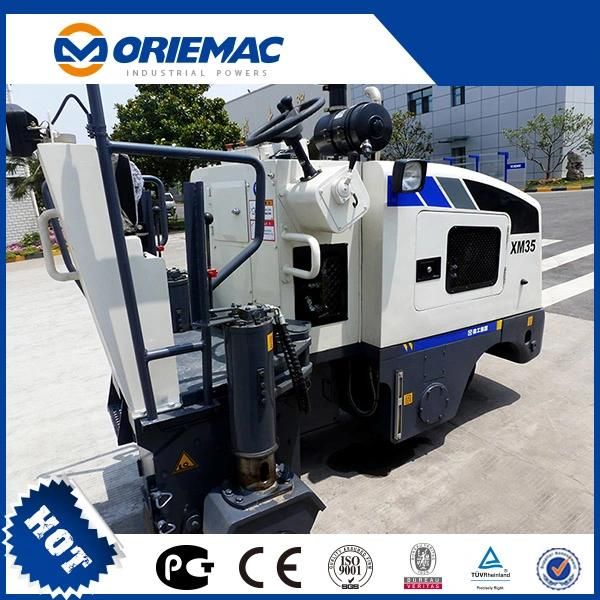

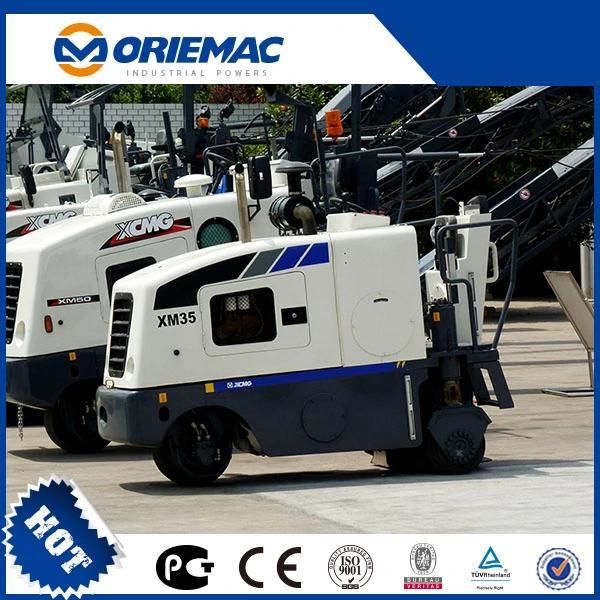

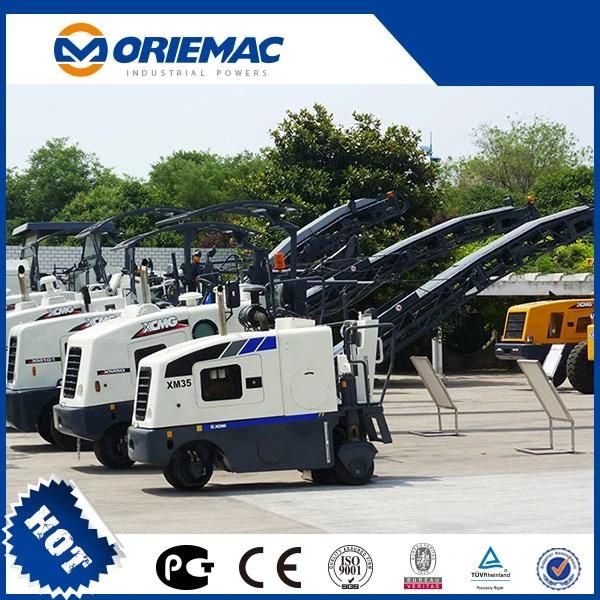

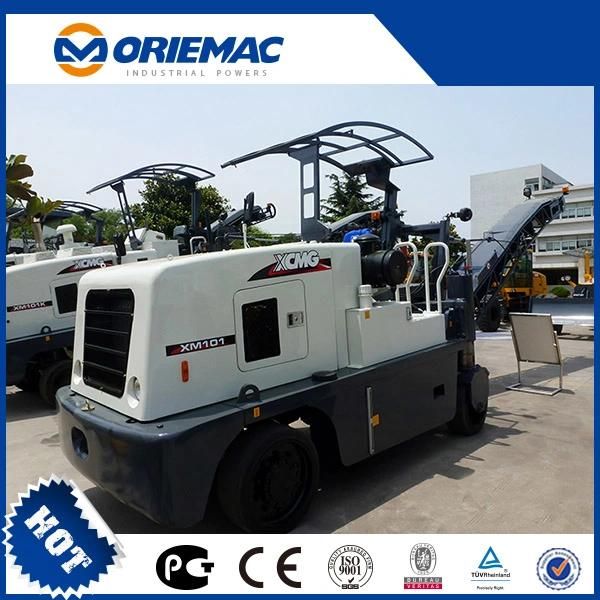

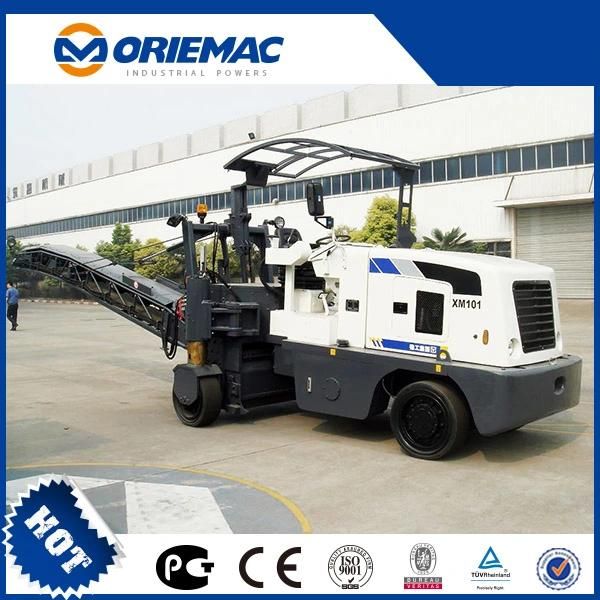

Product Pictures
