Solar Crawler Hydraulic Guardrail Post Pile Driver

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service:Yes
  • Warranty:Yes
  • Type:Vibration Piling Machine
  • Pressure Pile Driver Type:Hydraulic Pile Driver
  • Pile Hammer Type:Hydraulic Hammer
  • Power Source:Diesel

Base Info

  • Model NO.:400
  • Motor Power:85kw
  • Noise:With Noise
  • Certification:CE, ISO 9001:2000
  • Condition:New
  • Product Number:Hwl400r
  • Hydraulic Hammer Model (mm):75,85,100 Optional
  • Walking Motor Torque (N.M):<11500

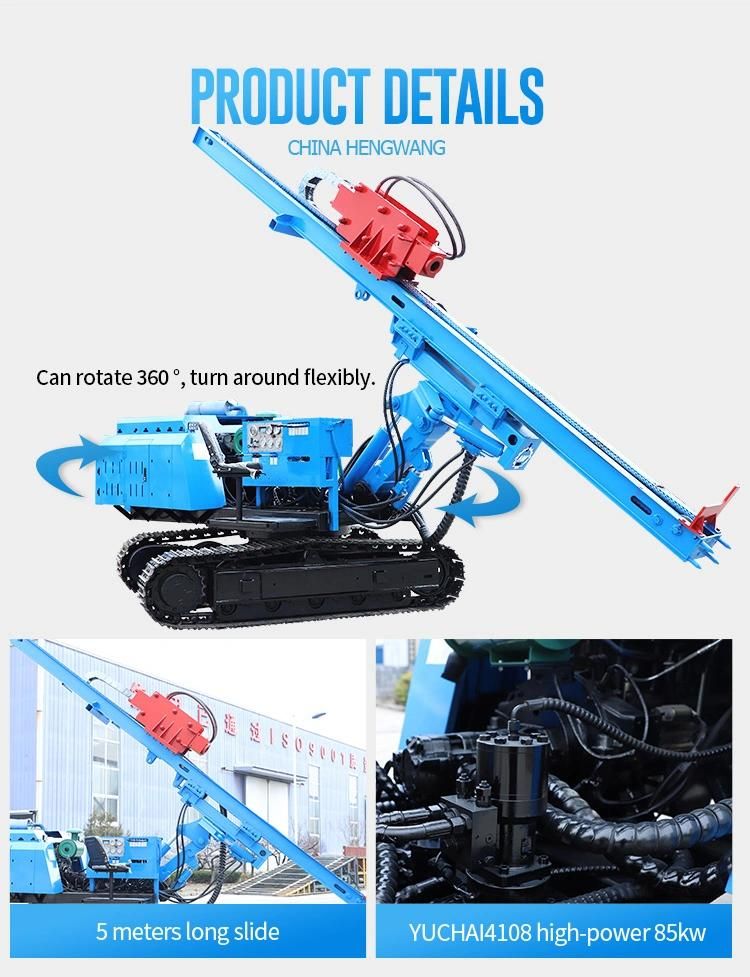

  • Frame Rotation Angle (°):360

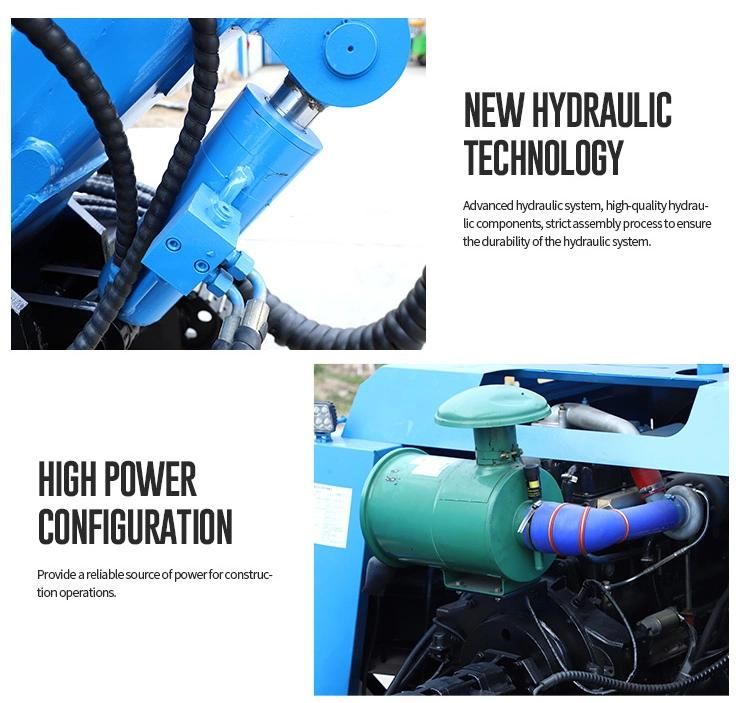

  • Hydraulic System Pressure (MPa):22
  • Traveling Speed (Km/H):3
  • Vehicle Weight (Kg):6200
  • Engine Power (Kw):85
  • Engine Rated Speed (R/Min):2600
  • Track Shoe Width (mm):350
  • Track Single (Section):42
  • Total Displacement of Walking Motor (Ml/:53
  • Rated Pressure of Walking Motor (MPa):30
  • Travel Motor Reduction Ratio:1:54.4
  • Transport Package:Standard Packaging
  • Specification:4420*1920*4900-7900mm
  • Trademark:HW
  • Origin:China
  • Production Capacity:300sets,Month

Description

Product number

HWL400R

Hydraulic hammer model (mm)

75/85/100 optional

Hydraulic hammer flow (L/min)

50-110

Impact frequency (bmp)

350-800

Drill rod diameter (mm)

75/85/100

Walking motor torque (N.m)

<11500

Pile height (mm)

According to the slide

Sliding guide frame inclination angle (°)

(Left) 5(Right) 5

Frame rotation angle (°)

360

Hydraulic system pressure (mpa)

22

Gear pump displacement (ml/r)

40+40+25

Traveling speed (km/h)

3

Vehicle weight (kg)

6200

Engine power (kw)

85

Engine rated speed (r/min)

2600

Track shoe width (mm)

350

Track single (section)

42

Total displacement of walking motor (ml/r)

53

Rated pressure of walking motor (mpa)

30

Travel motor reduction ratio

1:54.4

Dimensions (mm)



4420*1920*4900-7900(working state)4500-7500*1920*2800(transportation status)

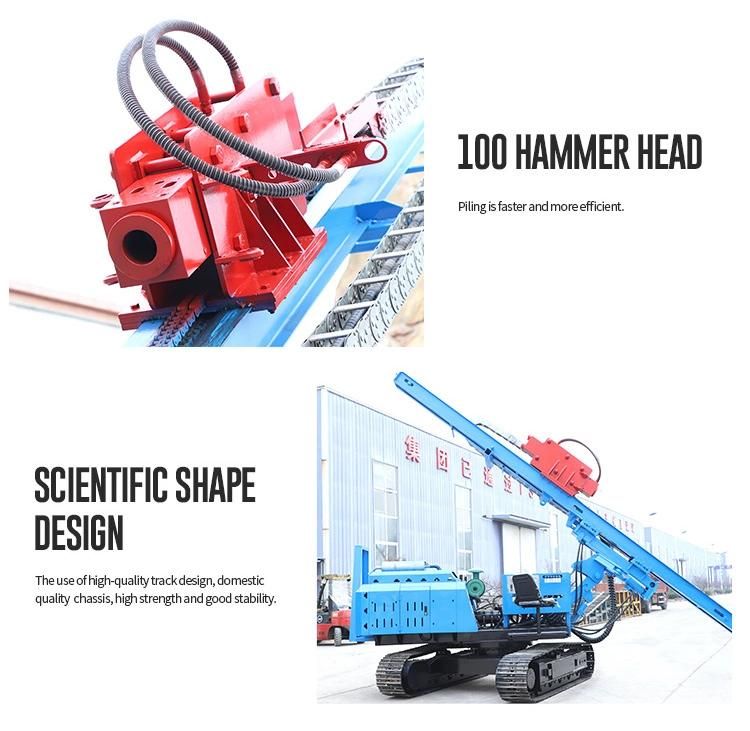

Solar Crawler Hydraulic Guardrail Post Pile DriverSolar Crawler Hydraulic Guardrail Post Pile DriverSolar Crawler Hydraulic Guardrail Post Pile DriverSolar Crawler Hydraulic Guardrail Post Pile Driver
