Solar Photovltaic Solar Ground Pile Diver
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Type：Vibration Piling Machine
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
Base Info
- Model NO.：300
- Motor Power：85kw
- Noise：With Noise
- Certification：CE, ISO 9001:2000
- Condition：New
- Product Number：Hwl300r

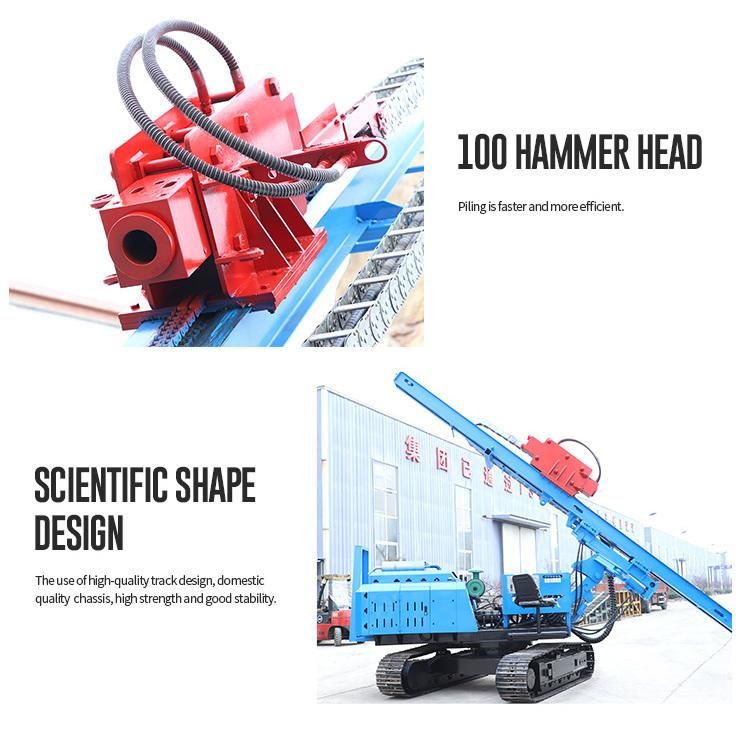

- Hydraulic Hammer Model (mm)：75,85,100 Optional
- Walking Motor Torque (N.M)：<11500
- Frame Rotation Angle (°)：360
- Hydraulic System Pressure (MPa)：22
- Traveling Speed (Km/H)：3
- Vehicle Weight (Kg)：6200
- Engine Power (Kw)：85
- Engine Rated Speed (R/Min)：2600
- Track Shoe Width (mm)：350
- Track Single (Section)：42
- Total Displacement of Walking Motor (Ml/：53
- Rated Pressure of Walking Motor (MPa)：30
- Travel Motor Reduction Ratio：1:54.4
- Transport Package：Standard Packaging
- Specification：4420*1920*4900-7900mm
- Trademark：HW
- Origin：China
- Production Capacity：300sets,Month
Description
Product number
HWL300R
Hydraulic hammer model (mm)
75/85/100 optional
Hydraulic hammer flow (L/min)
50-110
Impact frequency (bmp)
350-800
Drill rod diameter (mm)
75/85/100
Walking motor torque (N.m)
<11500
Pile height (mm)
According to the slide
Sliding guide frame inclination angle (°)
(Left) 5(Right) 5

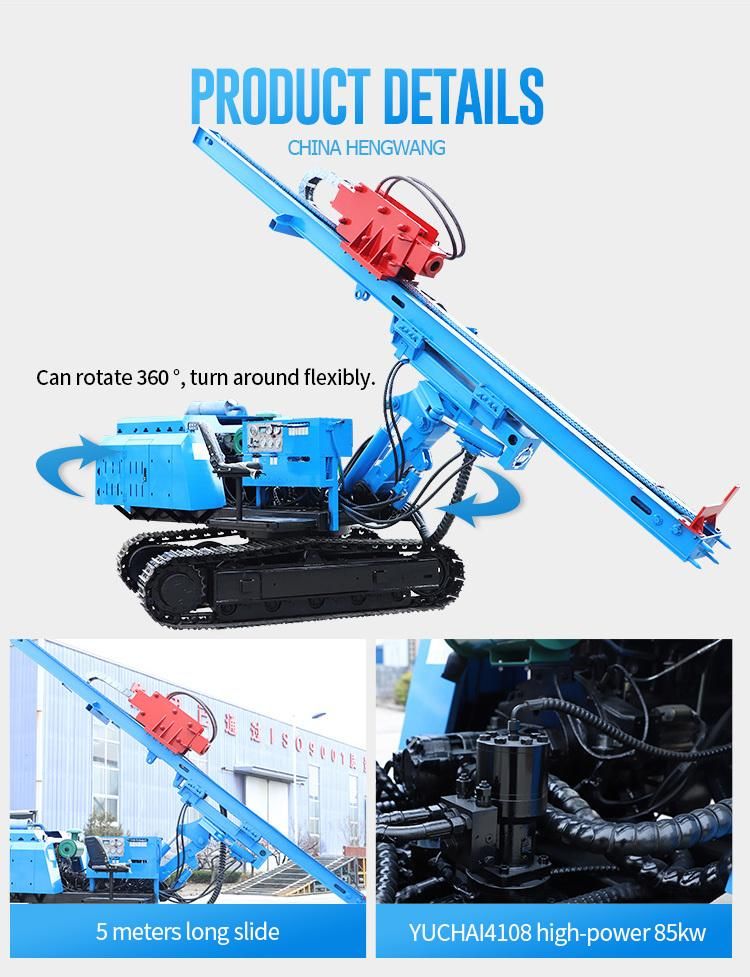

Frame rotation angle (°)
360
Hydraulic system pressure (mpa)
22
Gear pump displacement (ml/r)
40+40+25
Traveling speed (km/h)
3
Vehicle weight (kg)
6200
Engine power (kw)
85
Engine rated speed (r/min)
2600
Track shoe width (mm)
350
Track single (section)
42
Total displacement of walking motor (ml/r)
53
Rated pressure of walking motor (mpa)
30
Travel motor reduction ratio
1:54.4
Dimensions (mm)
4420*1920*4900-7900(working state)4500-7500*1920*2800(transportation status)
