Concrete Spraying Dry Mix Shotcrete/Small Shotcrete for Construction Industry
Shandong Match Machinery Co., Ltd.- Type：Concrete Mixer
- Shotcrete Type：Dry
- Machining Process：Hydraulic
- Structure：Rotor Type
- Productivity：3m3,H
- Feeding Height：200m Horizontal
Base Info
- Model NO.：PZ-3
- Vibrating Amplitude：2.4mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Orange
- Power：3kw
- Voltage：380V
- Weight：260kg
- Transport Package：Wooden Case
- Specification：1040*550*940mm
- Trademark：Match
- Origin：Shandong, China
- Production Capacity：20sets,Week
Description

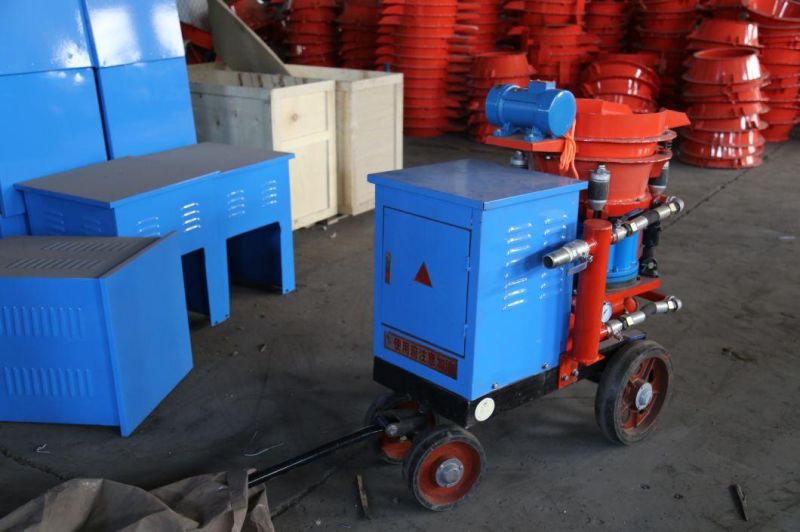

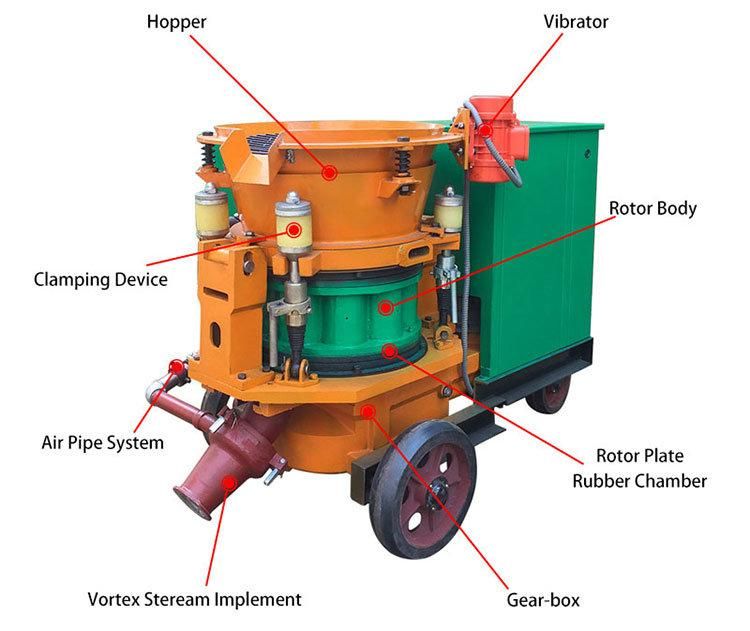

PZ Model (dry-type) shotcrete machine
Model
PZ-3
PZ-5
PZ-7
Capacity (m3/h)
3.5
5
7
Max. Conveying Distance (Horizontal,Vertical m)
200,20
200,20
200,20
Use material ratio(Cement/Sand)
2001-3-5
2001-3-5
2001-3-5
Use material water-cement ratio
≤0.4
≤0.4
≤0.4
Max. Aggregate Diameters (mm)
20
20
20
Feeding pipe inner diameters(mm)
38
51
64
Rotor Diameter(mm)
350
438
480
Working pressure (MPa)
0.4-0.6
0.4-0.6
0.4-0.6
Air consumption (m3/min)
3-4
7-8
8-10
Motor Model
Y112M-6-3KW
Y132-6-5.5KW
Y132-6-7.5KW
Voltage(V)
380,660,etc
380,660,etc
380,660,etc
Overall size (mm)
1040*550*940
1280*700*1280
1500*700*1280
Overall weight (kg)
260
600
700
FAQ1. Q: Can I get shotcrete machine samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products of concrete shotcrete machine in stock?
A : No. All bikes are to be produced according to your order including samples.
3. Q: What's the delivery time?
A: It usually takes about 10-15 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: Can I mix different models of gunite shotcrete machine in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
