Liugong 5 Ton Wheel Loader Zl50cn for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：ISO, RoHS, CE
- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：ZL50CN
- Type：Small Loader
- Rated Power：164kw,2200rpm
- Transport Package：by Sea,Train,Air
- Specification：5000kg
- Origin：China
- HS Code：84295100
- Production Capacity：600,Month
Description
Basic Info.
Model NO. ZL50CN Type Small Loader Rated Power 164kw/2200rpm Transport Package by Sea/Train/Air Specification 5000kg Origin China HS Code 84295100 Production Capacity 600/MonthProduct Description

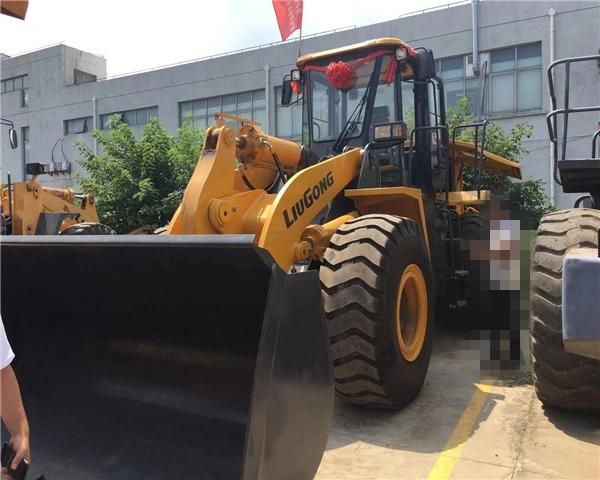

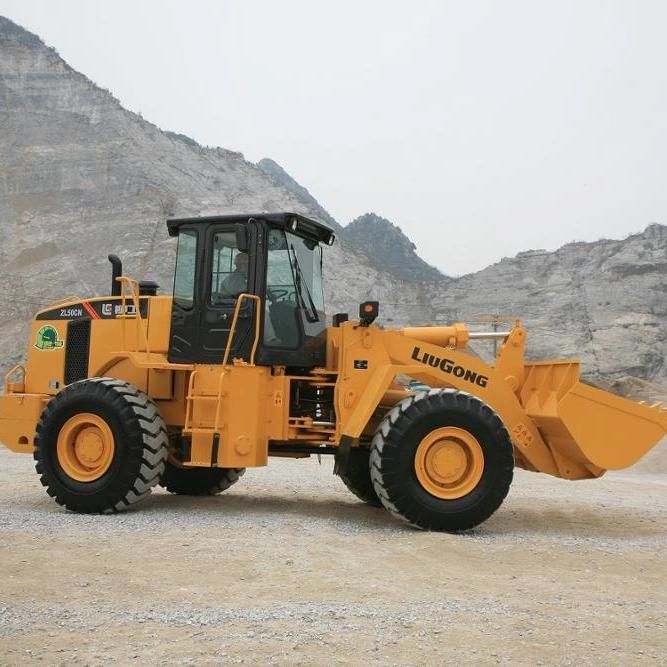

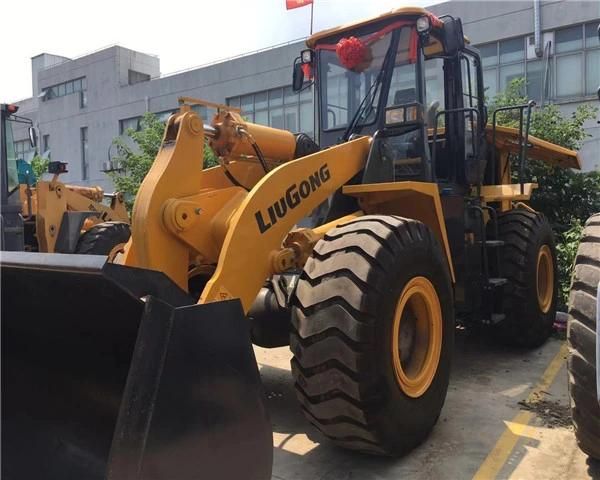

Liugong 5 Ton Wheel Loader ZL50CN for Sale

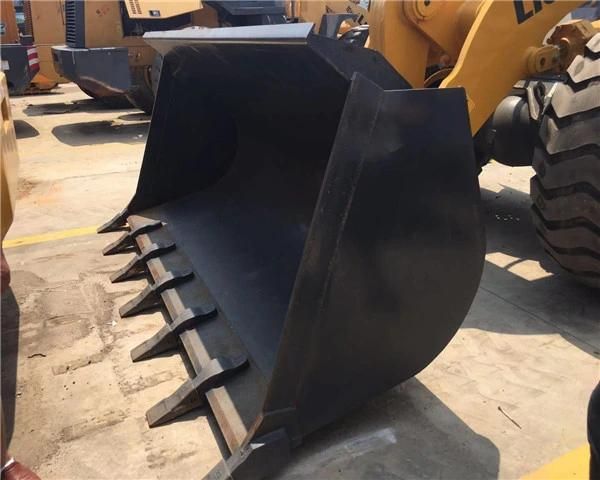

- Optimizing the shape of the bucket makes it easy to pick up material, achieving higher fill factors and less spillage.
- A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect.
- Optimized preheating system and hyperboloid efficient fan, adaptable from -30 ºC ~ 45 ºC ambient temperature.
- Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.
Operating weight
16700 kg
Standard bucket
3 m³
Gross power
162 kW (220 hp) @ 2200 rpm
Net power
148 kW (201 hp) @ 2200 rpm
Rated load
5000 kg
Total cycle time
11.5 s
Tipping load-full turn
11000 kg
Bucket breakout force
167 kN
Dump clearance, full height discharge
2970 mm
Dump reach, full height discharge
1200 mm
Model
6LT9.3
Emissions
EPA Tier 2 / EU Stage II
Cooling system
Charge air cooling
Length with bucket down
7598 mm
Width over tires
2976 mm
Cab height
3480 mm
Turning radius, outside of tire
6647 mm
Bucket capacity
1.8-5.6 m³
General Purpose
3 m³
Light material
3.0, 4.5, 5.0, 5.6 m³
Heavy-rock
2.7 m³
