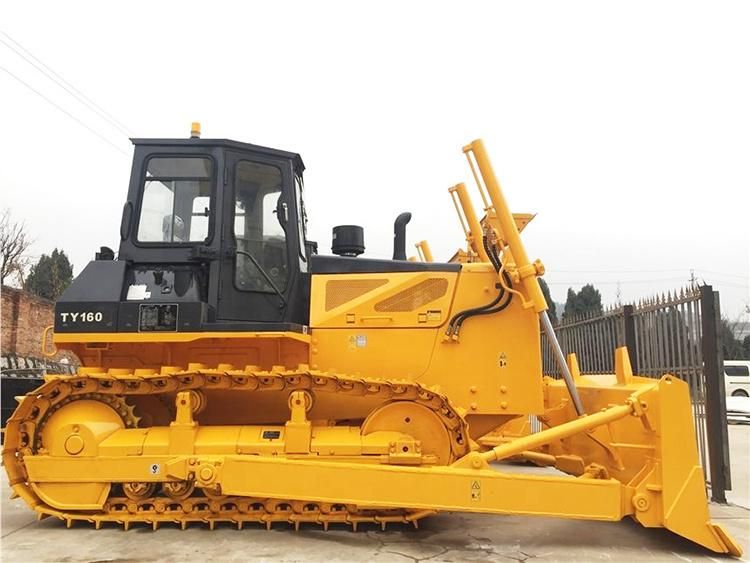

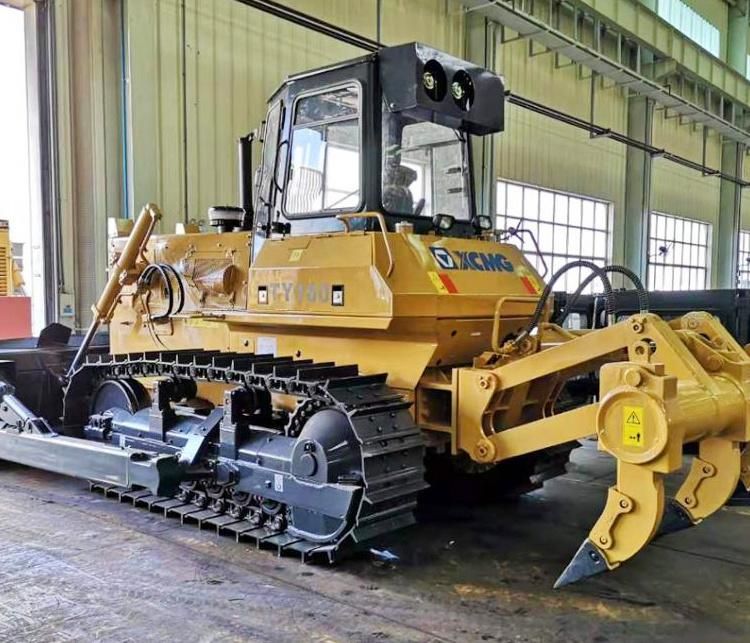

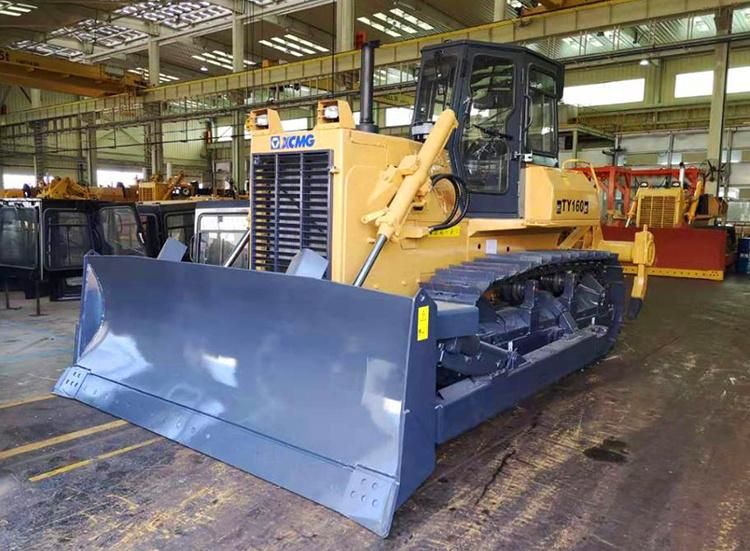

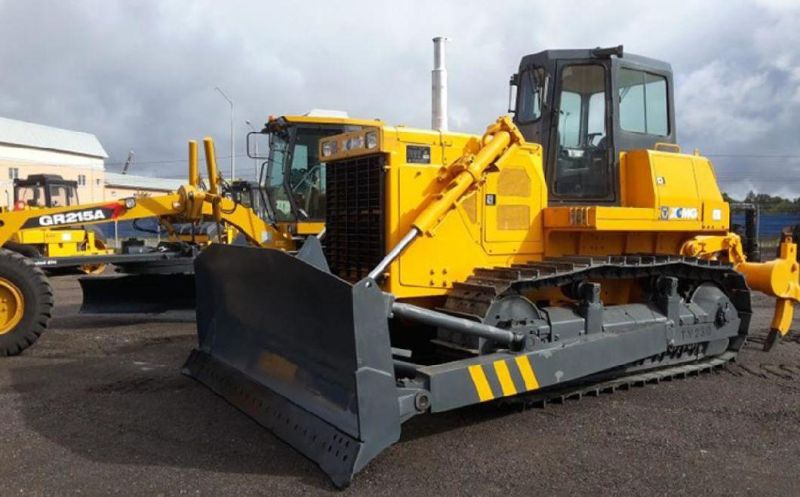

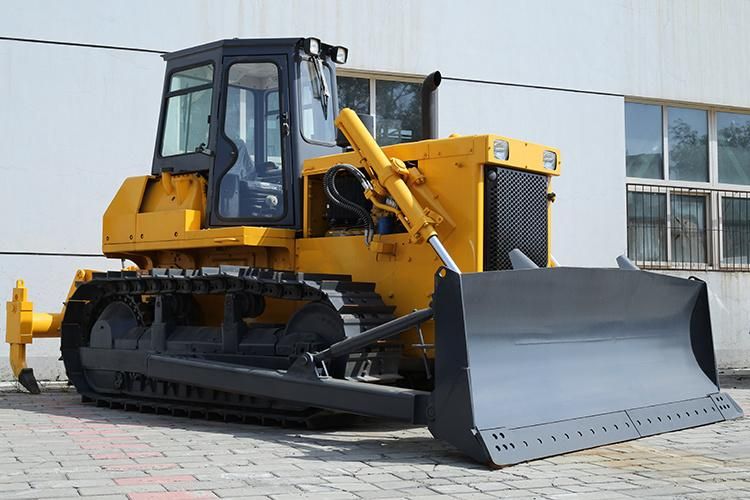

• Model NO.：TY160
• Condition：New
• Color：Yellow
• Power：122kw
• Specification：5128*3416*3120mm
• Trademark：XCMG
• Origin：Jiangsu
• Production Capacity：1000,Year

Overview Product Parameters



NameRemarksSpecificationsOverall size of the machine(mm)Straight shovel, traction rod5128×3416×3120Straight shovel, three toothed soil loosen6215×3416×3120The use quality of the whole machine(kg)Straight shovel, traction rod17100Straight shovel, three toothed soil loosen18700Maximum traction power (kN)148Minimum turning radius (mm)3100Maximum climbing performance (°)30Minimum ground clearance (mm)No crawler400Average ground specific pressure (MPa)0.065Forward speed (km/h)F13.1F25.47F39.07Back speed (km/h)R14.03R27.12R311.81Tracked ground length (mm)2430Caterpillar center distance (mm)1880Production efficiency (m3/h)30m distance350EngineModelWeichai WD10G178E25typeWater cooling,straight line,four stroke,direct injectionThe number of cylinder - bore * stroke (mm)6-126×130Rated power (kW)131Rated speed (r/min)1850Maximum torque (N.m/r/min)830/1000~1200Fuel consumption rate (g/kW.h)≤210Walking systemtypeSwing type and balance beam suspension structurePitch (mm)203.2Number of wheels of single side belt2Number of single side pulleyunilateral and 2 bilateral6Crawler height (mm)60Working deviceStraight shovel single shovel capacity (M3)3.9The maximum lifting height of the blade (mm)1095The maximum depth of soil cutting blade (mm)545The maximum tilt blade height (mm)860Type of soil looserThree teethThree tooth looser tooth distance (mm)950Three tooth looserSoil depth (mm)572Elevation (mm)702The three tooth scarifier weight (kg)1621Product Show



Company Profile



FAQ



1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
