Jq350 Small Electric Vertical Pan Concret Pan Mixer

Linyi Raytone Machinery Imp&Exp Co., Ltd.
  • Type：Concrete Mixer
  • Shotcrete Type：Wet
  • Machining Process：Electrical
  • Structure：Spiral Type
  • Productivity：>=4m3,H
  • Feeding Height：1200mm

Base Info

  • Model NO.：JQ350
  • Vibrating Amplitude：0.8mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：as Required
  • Power：7.7kw
  • Weight：330kg
  • Guarantee：1year
  • Feeding Capacity：500L
  • Discharging Volume：350L
  • Water Supply Mode：Maunal
  • Speed of Mixing Drum：35r,Min
  • Working Cycle Period：2-4 Minutes
  • Model：Jq350
  • Transport Package：Suitable for Sea Transport
  • Specification：1270*1250*1250
  • Trademark：Raytone Machinery
  • Origin：Shandong, China
  • HS Code：84748020
  • Production Capacity：50 Sets Per Month

Description

Basic Info.

Model NO. JQ350 Vibrating Amplitude 0.8mm Certification ISO9001: 2000, CE Condition New Color as Required Power 7.7kw Weight 330kg Guarantee 1year Feeding Capacity 500L Discharging Volume 350L Water Supply Mode Maunal Speed of Mixing Drum 35r/Min Working Cycle Period 2-4 Minutes Model Jq350 Transport Package Suitable for Sea Transport Specification 1270*1250*1250 Trademark Raytone Machinery Origin Shandong, China HS Code 84748020 Production Capacity 50 Sets Per Month

Product Description

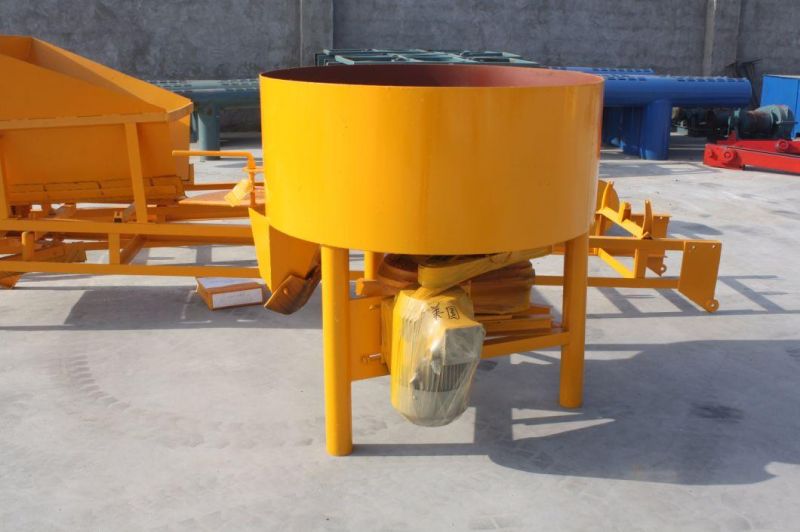

                                      JQ350 Pan Type Mixer
Mixer Introduction :
The industrial pan mixer is a kind of machine which specialized in mixing concrete.It can work independently and also can used for mixing plant while composed with other matched devices.The working principle is that it mixes material while rotating in clockwise direction,and discharging material while roating in anti
clockwise direction.The machine is widely be used for construction site such as real estate ,road,bridge,etc.

Jq350 Small Electric Vertical Pan Concret Pan Mixer


Advantage :
1.Simple and portable,easy to operate
2.Compact structure,reliable performance
3.Fast mixing,high efficiency,high uniformity
4.Long service time,low maintenance cost
Jq350 Small Electric Vertical Pan Concret Pan Mixer
Jq350 Small Electric Vertical Pan Concret Pan Mixer

Technical Parameters About JQ500
JQ MixerJQ350JQ500
Feeding capacity560L800L
Discharging volume350L500L
Productivity>=4m3/h>=4m3/h
agitating vane quantity2020
Total power7.7kw11KW
Overall dimension1500*1200*12001270*1250*1250
Total weight530kg530kg

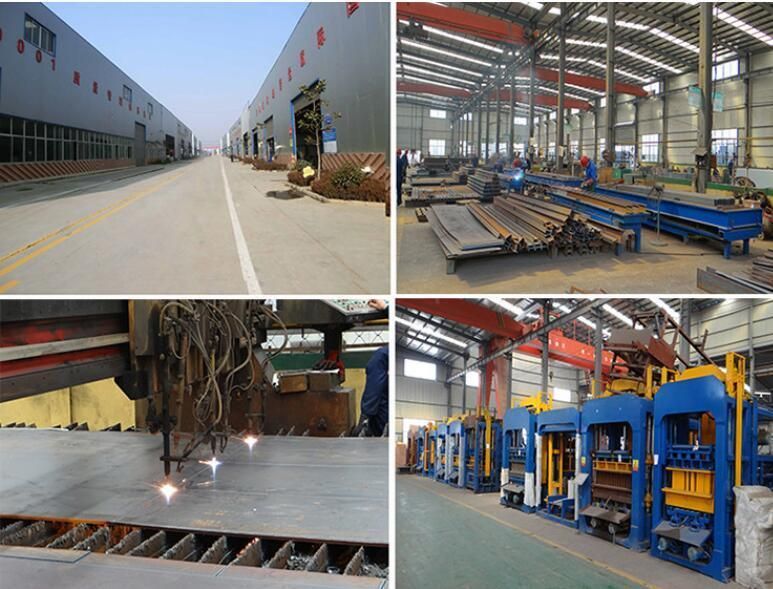

company show

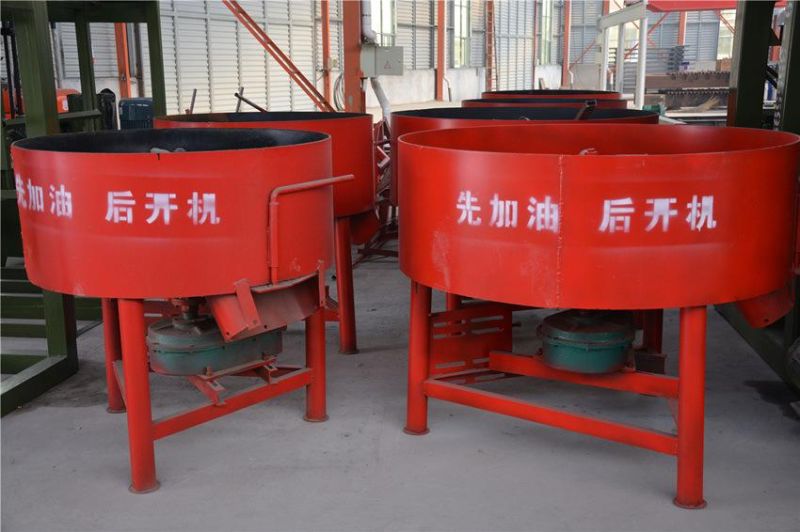

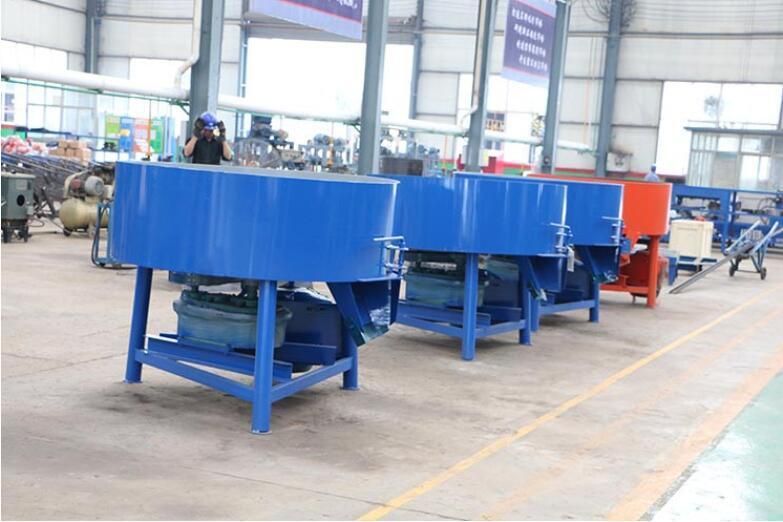

Jq350 Small Electric Vertical Pan Concret Pan Mixer
Jq350 Small Electric Vertical Pan Concret Pan Mixer

After-sale service
Selling is only the beginning of our service,
(1) Our good after-sale service would provide our customer with both the technology and the skills.
(2) Our overseas technicians would be there to help installation and teach the using method.
(3) We could provide the manual brochure if needed.

Welcome Contact me more details about our product .
