• Model NO.：ZID-230E
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Item：High Frequency Concrete Vibrator
• Power：1500 W
• Voltage：220-230 V
• Speed：17000 Rpm
• Packing Size：45*36*29.5cm,2PCS
• Weight：5.3 Kg
• Transport Package：Carton
• Specification：CE
• Trademark：KZW
• Origin：Ningbo, China
• HS Code：846729990
• Production Capacity：5000PC, Year

Basic Info.

Model NO. ZID-230E Vibrating Amplitude 1.2mm Certification ISO9001: 2000, CE Condition New Color Yellow Item High Frequency Concrete Vibrator Power 1500 W Voltage 220-230 V Speed 17000 Rpm Packing Size 45*36*29.5cm/2PCS Weight 5.3 Kg Transport Package Carton Specification CE Trademark KZW Origin Ningbo, China HS Code 846729990 Production Capacity 5000PC/ Year

Product Description

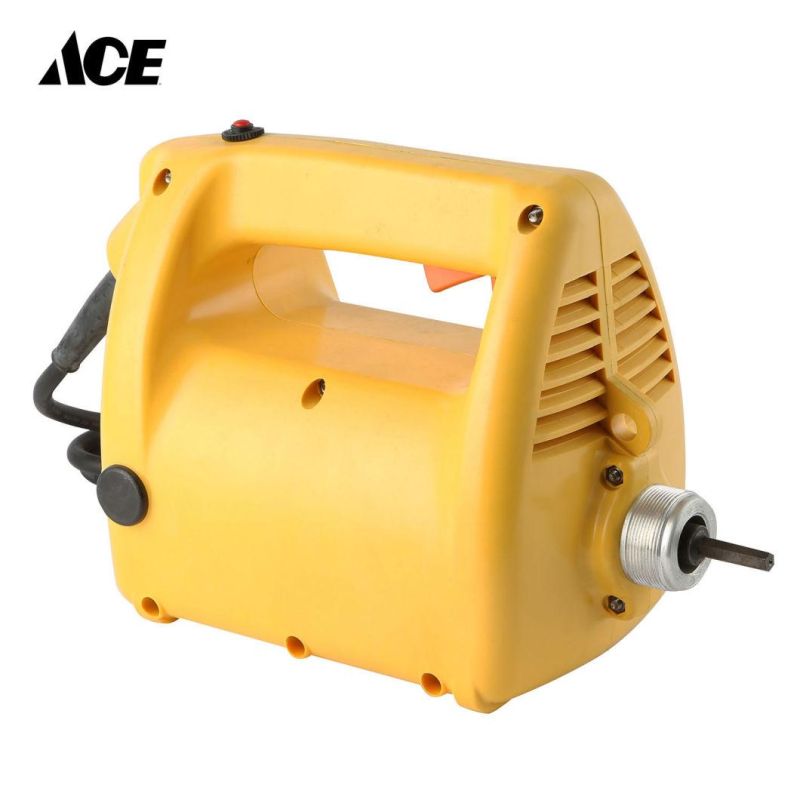

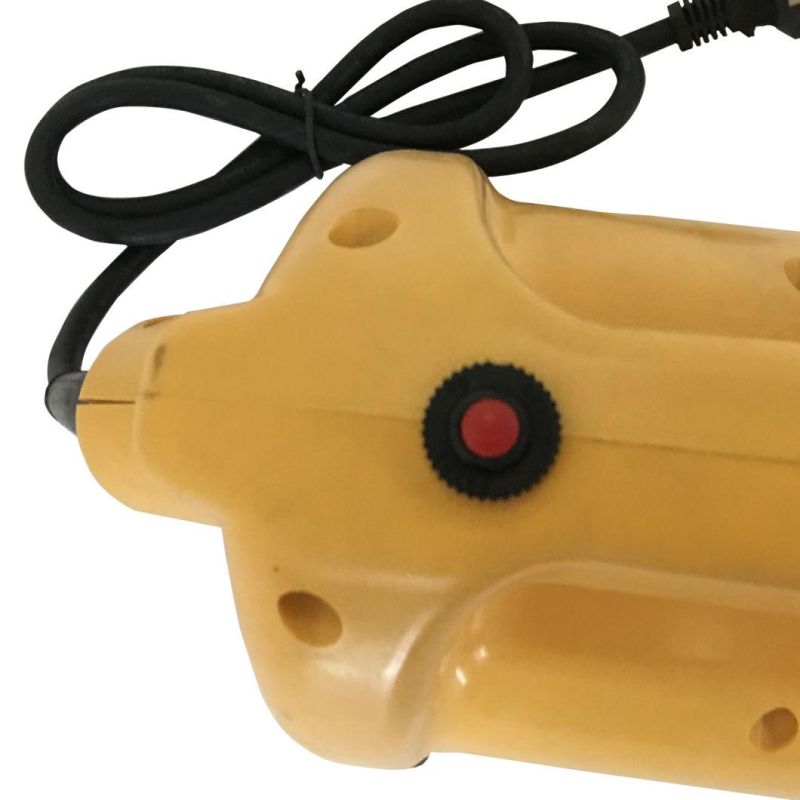

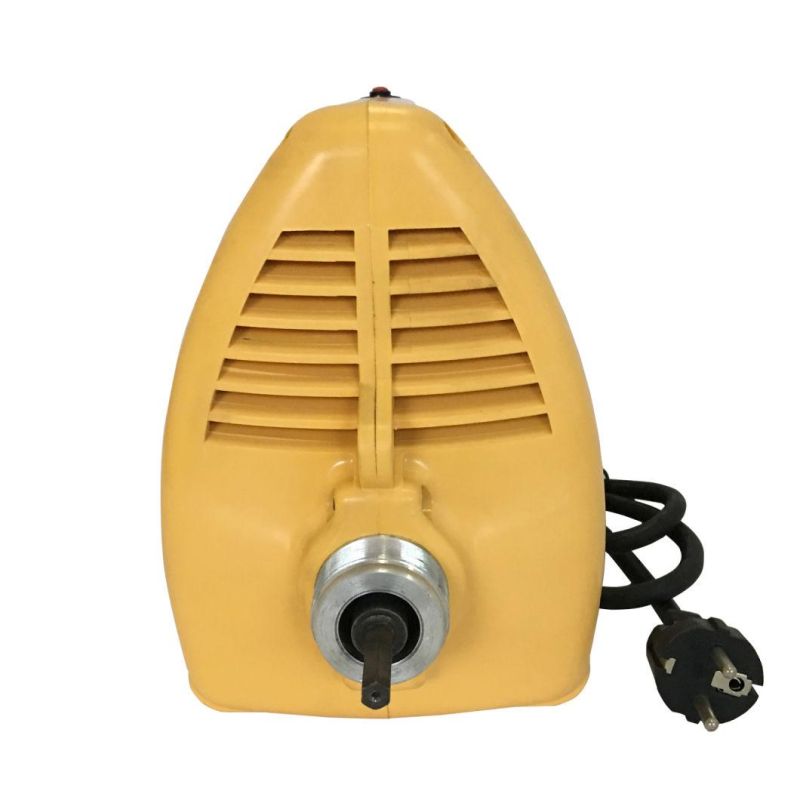

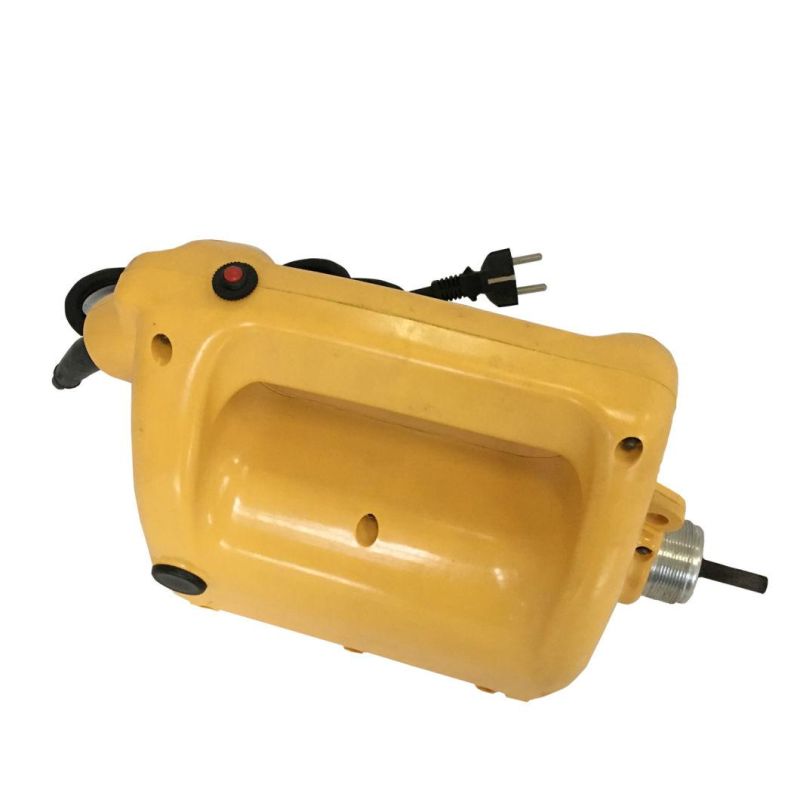

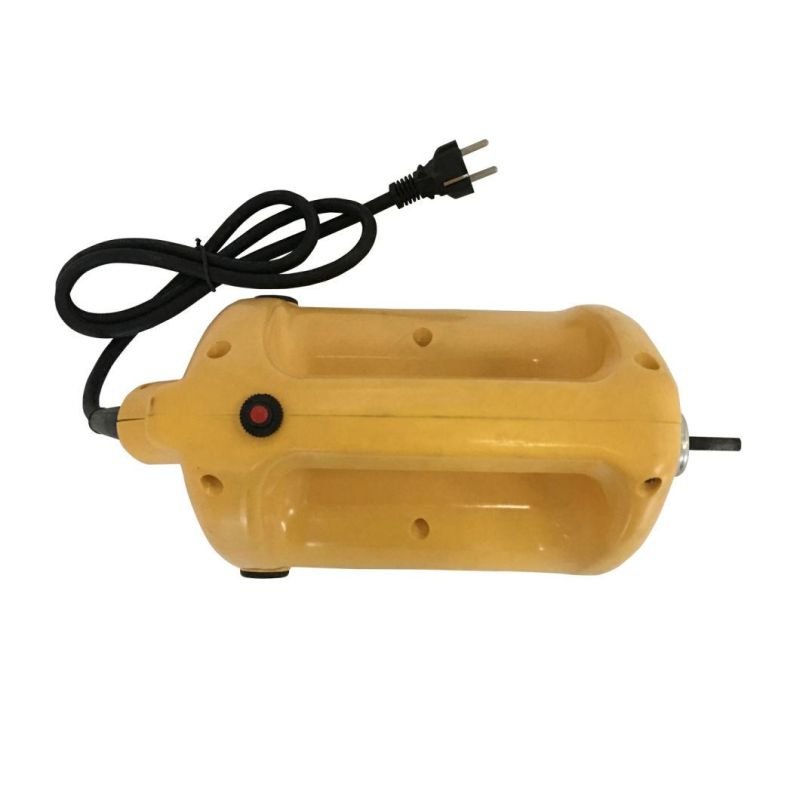

(ZID-150E/230E) Processing Machiery 18000rpm High Frequency Concrete Vibrator



Product Uses

 Hight Frequency Concrete vibrator is  suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket,crowded reinforcing stell bar net coagulation dirt wall and major and medium small architectural engineering. It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.



Product Description

1.The ZID Series high frequency concrete vibrator is an immersion type vibrator. During operation,the vibrating poker that is attached to the vibrator has to be immersed into the concrete .The poker has an eccentric vibrating element inside it .

2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration . Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube .It is spun as much as 12000 times per minute,which makes it easy to cause resonance with the poured concrete .

3. The lightweight vibrator only weights to 5.2kgs to 6kgs,giving ease of operation .It is one of the most widely used products,know for its low noise,energy efficiency, reliable functioning,high safety,and good vibrating performance.

Technical Specification:


Model	ZID-150E	ZID-230E	ZID-230C	ZID-200	PD-230
Power (W)	1500	2300	2300	2000	2300
Voltage (V)	220-230	220-230	220-230	220-230	220-230
Speed (rpm)	17000	17000	17000	17000	17000
Packing Size (cm)	45*36*29.5	45*36-29.5	44*36*28.5	44*36*28.5	44*36*28.5
Weight (kg)	5.3	5.5	6.2	5.9	6.0
