Zoomlion 36t Crawler Excavator with Optional Engine (ZE360E)

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Type：Crawler Excavator
  • Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
  • Bucket：Grab Shovel
  • Transmission：Hydraulic Transmission
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：>1.5m³

Base Info

  • Model NO.：ZE360E
  • Size：Medium-Sized
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Rated Power：198,2000kw,Rpm
  • Max. Torque：1157,1500n.M,Rpm
  • Digging Force of Bucket (ISO)：219kn
  • Digging Force of Stick (ISO)：171kn
  • Max. Excavating Radius：11075mm
  • Max. Excavating Distance：10888mm
  • Transport Package：Nude Package
  • Specification：34300kg
  • Trademark：Zoomlion
  • Origin：China
  • HS Code：8429521200
  • Production Capacity：100units,Month

Description

Overview Product Description

Product Parameters



ItemUnitZE360EZE360ESPKey ParameterWorking masskg3430034080Rated powerkw/rpm198/2000198/2000Standard bucket capacity(SAE)m31.61.6System flow (Max. pressure/ Max. flow)-32.4/35.3 Mpa
2×264 L/min32.4/35.3 Mpa
2×264 L/minEngine model-Cummins 6C8.3Cummins 6C8.3Max. torqueN.m/rpm1157/15001157/1500Traveling speed (low/high)km/h3.1/5.13.1/5.1Slewing speedrpm9.69.6Gradeability°°35°35°Max.  drawbar pullkN264264Digging force of bucket (ISO)kN219219Digging force of stick (ISO)kN171171Basic ParameterSlewing radius of tailmm34743474Tail lengthmm34533453Counterweight ground clearancemm11611161Min. ground clearancemm499499Ground contact lengthmm41404140Track lengthmm50425042Track gaugemm25902590Track widthmm31903190Track shoe widthmm600600Height of grousermm3636Slewing table widthmm29952995Operating RangeMax. excavating radiusmm1107510262Max. excavating distancemm1088810059Max. excavating heightmm101709796Max. discharging heightmm71106705Max. excavating depthmm73806522Max. vertical excavating depthmm64105742Min. slewing radius of frontmm43904225 Detailed Photos

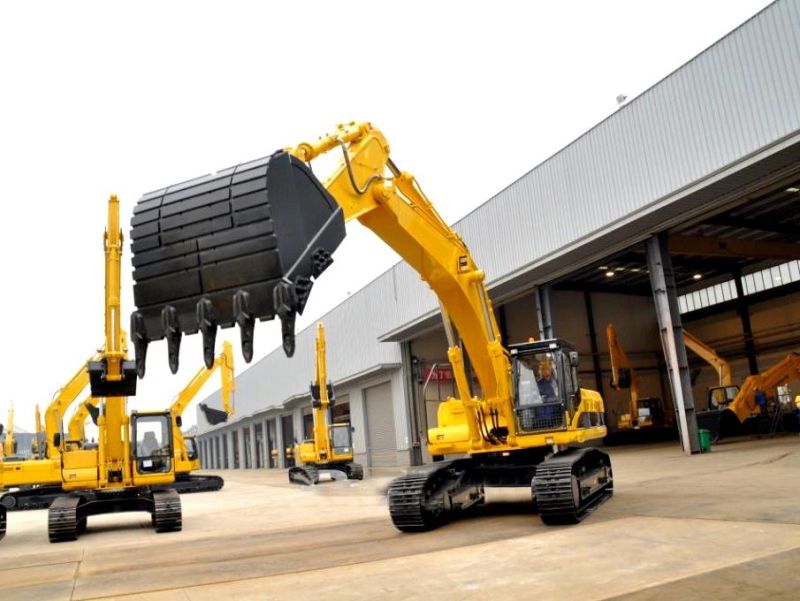

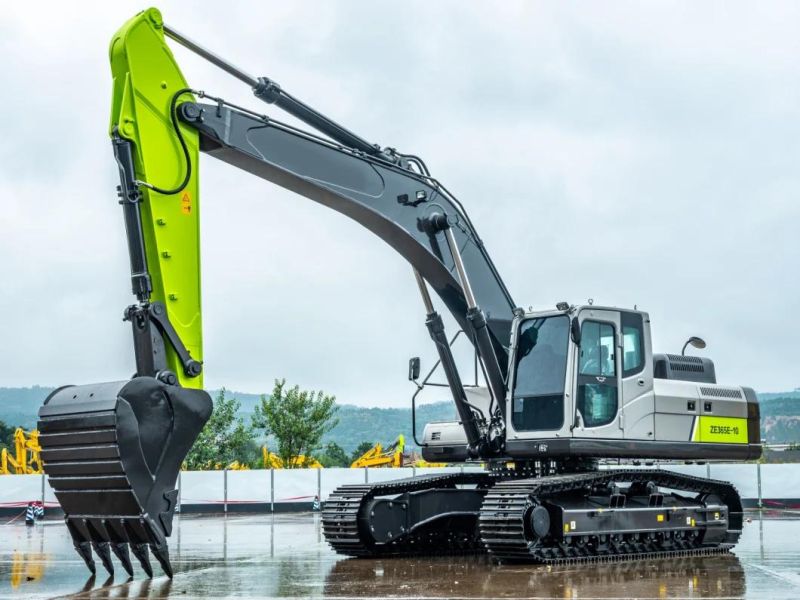

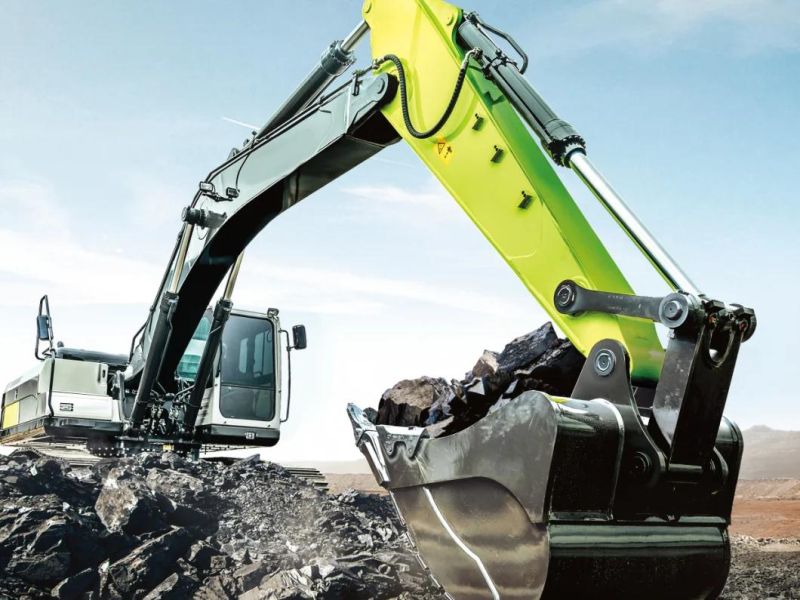

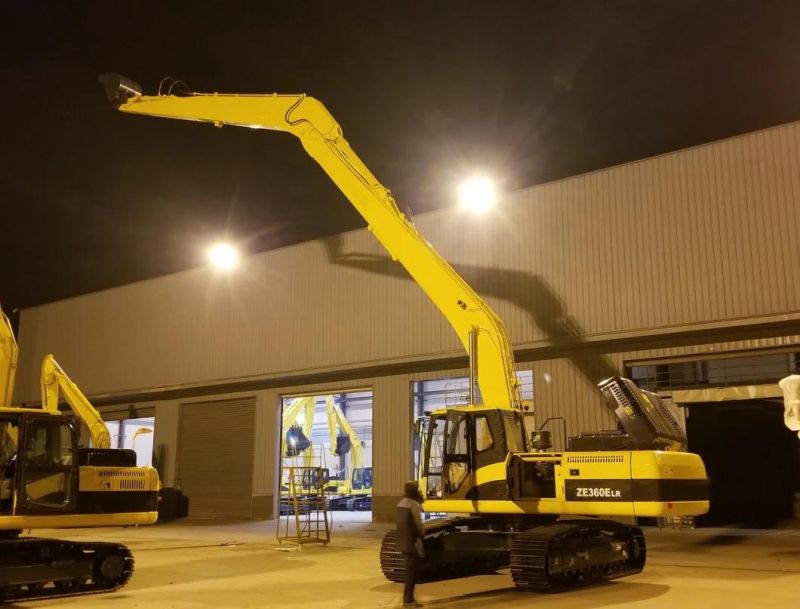

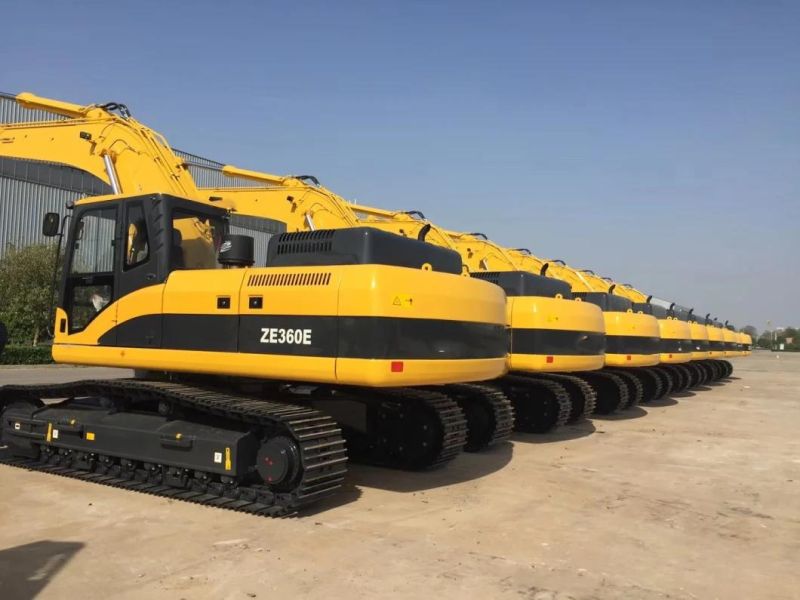

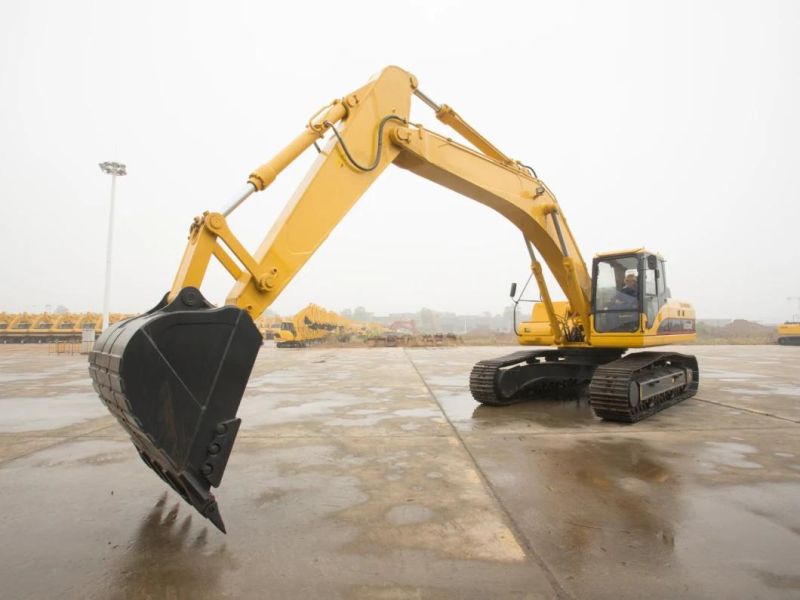

Zoomlion 36t Crawler Excavator with Optional Engine (ZE360E)Zoomlion 36t Crawler Excavator with Optional Engine (ZE360E)Zoomlion 36t Crawler Excavator with Optional Engine (ZE360E)Zoomlion 36t Crawler Excavator with Optional Engine (ZE360E)Zoomlion 36t Crawler Excavator with Optional Engine (ZE360E)Zoomlion 36t Crawler Excavator with Optional Engine (ZE360E)Zoomlion 36t Crawler Excavator with Optional Engine (ZE360E)
