• Model NO.：XS163J
• Compaction Depth：30cm
• Engine Type：Diesel Engine
• Travel Speed：0-10.8km,H
• Centrifugal Force：320,235 Kn
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Mass：16000kg
• Static Linear Load：449 N,Cm
• Working Width：2130mm
• Vibration Frequency：28,33 Hz
• Rated Power：125 ,2200 Kw,Rpm
• Engine Manufacturer：China Cum--Mins
• Max. Gradeability：39%
• Overall Dimensions：6200*2300*3200
• Engine Model：6btaa5.9-C170
• Axle Load, Front：9750kg
• Axle Load, Rear：6250kg
• Track Radius, out：6415mm
• Application：Asphalt Roller
• Color：Customized
• Vibration Amplitude：1.86,0.88mm
• Transport Package：Nude Package, Suitable for Shipment
• Specification：4780*2100*3200mm
• Trademark：Acntruck
• Origin：China
• Production Capacity：30000 Sets,Month

Basic Info.

Model NO. XS163J Compaction Depth 30cm Engine Type Diesel Engine Travel Speed 0-10.8km/H Centrifugal Force 320/235 Kn Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Operating Mass 16000kg Static Linear Load 449 N/Cm Working Width 2130mm Vibration Frequency 28/33 Hz Rated Power 125 /2200 Kw/Rpm Engine Manufacturer China Cum--Mins Max. Gradeability 39% Overall Dimensions 6200*2300*3200 Engine Model 6btaa5.9-C170 Axle Load, Front 9750kg Axle Load, Rear 6250kg Track Radius, out 6415mm Application Asphalt Roller Color Customized Vibration Amplitude 1.86/0.88mm Transport Package Nude Package, Suitable for Shipment Specification 4780*2100*3200mm Trademark Acntruck Origin China Production Capacity 30000 Sets/Month

Product Description

Single drum road roller for road construction works XS163
1. Product Description:
XS163 is a kind of medium vibratory roller, mainly applicable for compacting operation of base layer, sub-base layer of different materials, and filling engineering. It is an ideal choice for constructing high grade highway, airport, port, dam and industrial construction sites.

2. Main Technical Parameters:

Type	Unit	XS163J
Operating weight	kg	16000
Load on front drum	kg	9900
Load on rear wheels	kg	6100
Drum width	mm	2130
Static linear load	N/cm	464
Vibration frequency(Low/High)	Hz	28/35
Nominal amplitude(High/Low)	mm	1.86/0.88
Excitation force(High/Low)	KN	320/235
Travel speed	km/h	0~12
Steering angle	°	±33
Swing angle	°	±10
Theoretical gradeability	%	55
Min. external turning radius	mm	6415
Engine model		B5.9
Engine power	kw	125
Rated engine speed	r/min	2200
Engine oil consumption	g/kW.h	232
Hydraulic oil tank capacity	L	240
Fuel tank capacity	L	240

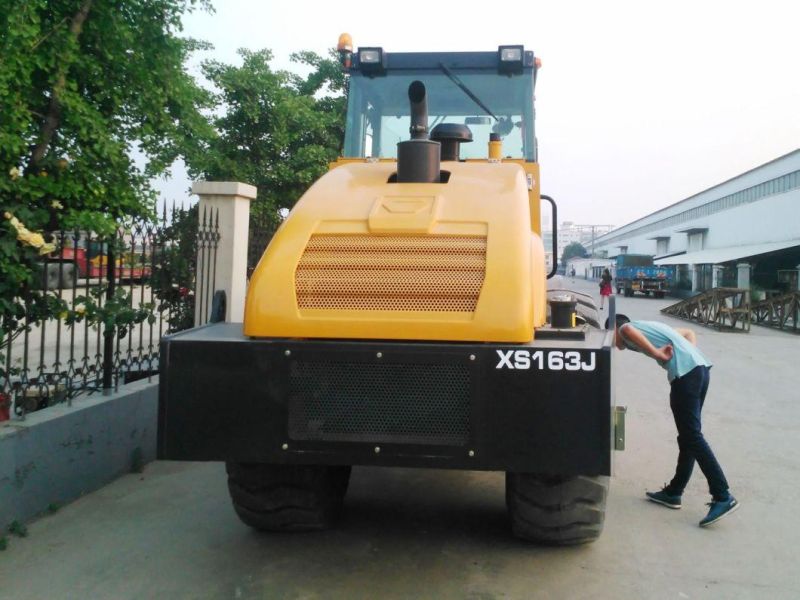

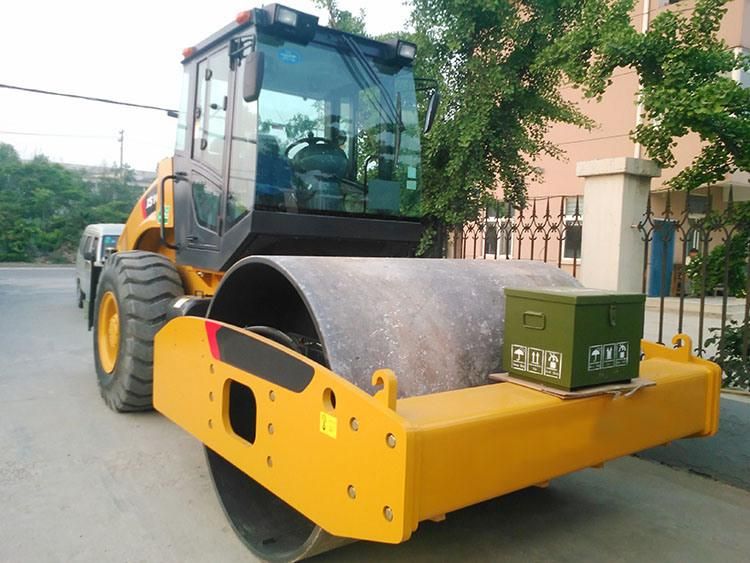

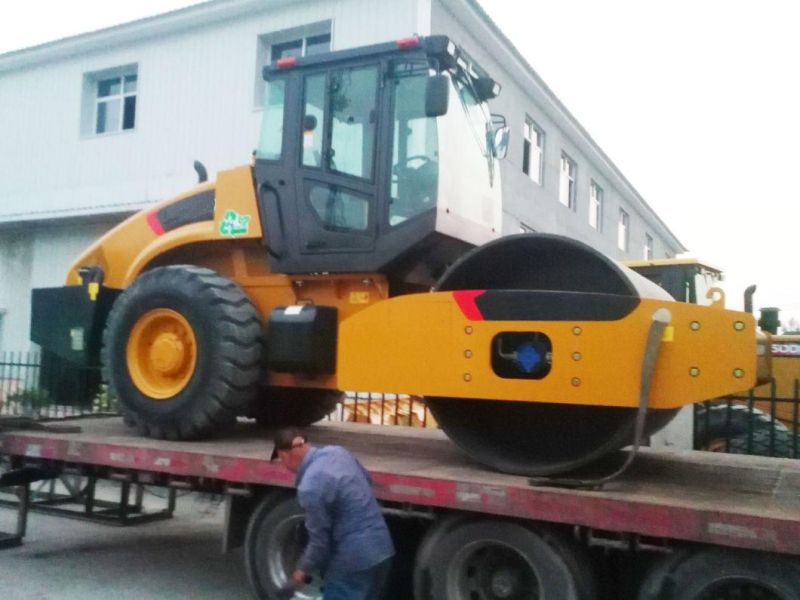

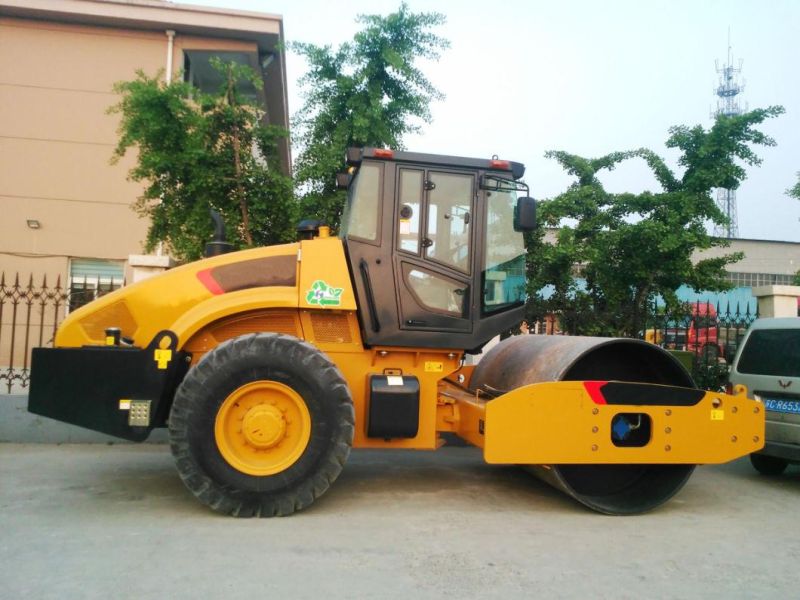

3. Products pictures:
