• Model NO.：OKW75
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：Used
• Operating Weight：6700
• Boom Length：3250
• Arm Length：1850
• Counterweight Ground Clearance：929
• Tail Swing Radius：1904
• Min Ground Clearance：220
• Wheel-Base：1670
• Max Digging Distance：6203
• Max Digging Depth：3633
• Max Digging Height：6832
• Engine Model：A498bzg-9
• Bore*Stroke：95,105
• Rated Speed：2400
• Rated Power：55
• Engine Weight：320

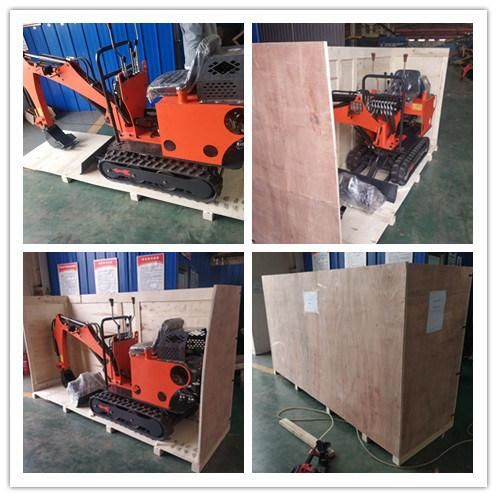

• Transport Package：Export Packing
• Specification：6700kg
• Trademark：OUKE
• Origin：Jining
• HS Code：8429521200
• Production Capacity：200

Item

data

BASIC

PARAMETERS

operating weight

6700kg

volume of bucket

0.28m3

overall length

6000mm

overall width

2150mm

upper structure width

2000mm

overall height

2729mm

boom length

3250mm

arm length

1850mm

ground clear ance

929mm

rear-end swing radius

1904mm

Min.ground clearance

220mm

tyre gauge

1670mm

wheel shaft diameter

2400mm

OPERATING

SCOPE

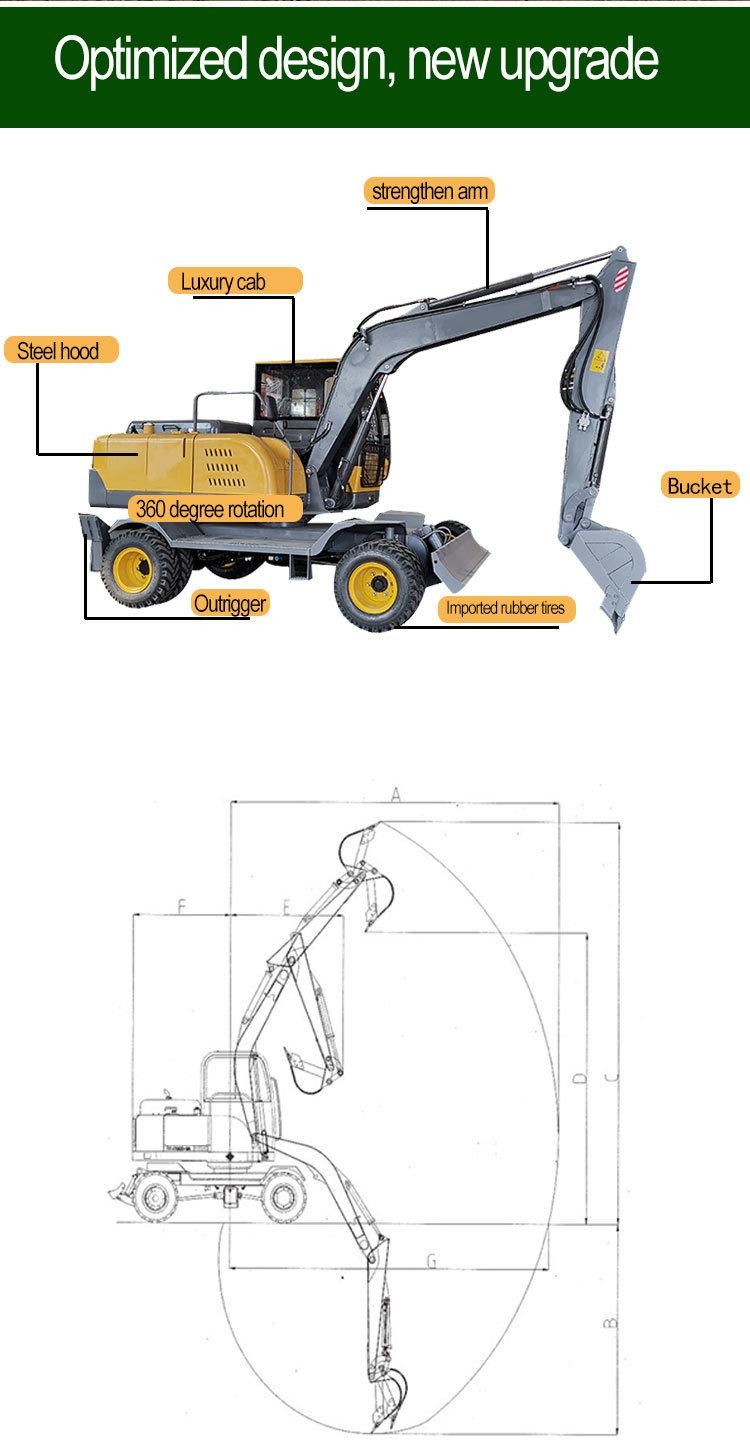

Max.digging reach

6203mm

Max.digging depth

3633mm

Max.digging height

6832mm

Min.swing radius

2138mm

 PERFORMANCE

PARAMETERS

 power system

engine model

YD4JZG

 modality

Water cooling / hydraulic

power

55/2400kw/rpm

Max.torque

245/1610N.m/rpm

 hydraulic ayatem

hydraulic pump

SGP1A2XF2H9

hydraulic pump

T5VP2D27

value

Parker

hydraulic oil tank

110L

fuel tank

130L

operating system

swing speed

12rpm

travel speed

35km/h

bucket digging force

44kn

arm digging force

35kn

Max.hauling force

65kn

gradeability

35°

parking brake

Air break

ervice brake

Air brake


Q: Are u the manufacturer ?

A: Yes, we are factory.

Q: What's your MOQ of this term?

A: 1 set.

Q: How long is your warranty?

A: Guarantee for 12 mounths starting from products arriving the destination port.

Q: Could you stick customers brand on the products?

A: Of course, we welcome the OEM orders.

Q: What's your delivery time?

A: Delivery timely about 7 days after receiving the deposit.
