Qinding Qd165y 165HP Bulldozer with High Performance
QINDING MACHINERY TOOLS (SHANDONG) CO., LTD.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：74~147kw
- Condition：New
Base Info
- Model NO.：QD165Y
- Color：Yellow
- Product Name：Qinding Qd165y 165HP Bulldozer with High Performan
- Key Word：165HP Bulldozer
- Model：Qd165y-5
- Engine：Weichai Wp10g178e355
- Rated Power：131kw
- Horsepower：165HP
- Weight：17800kg
- Transport Package：RO-RO

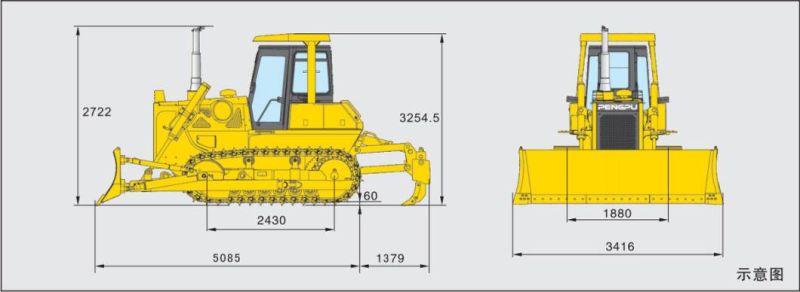

- Specification：5085x3416x3254.5
- Trademark：QINDING
- Origin：Shanghai, China
- HS Code：843149
- Production Capacity：150units , Month
Description
Floating seals are used in all track rollers,carrier rollers,sprocket and front idlers
Gear Box
The gear box is of the planetary gears type, by operating hydraulic control valve for traveling forward and backward. It features planetary gears, multi-disc clutch, hydraulically applied forced lubrication, 3 speeds forward and 3 speeds backwards.

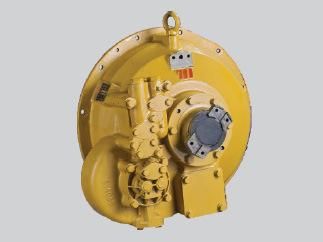

Torque Converter
The torque converters are of the single stage, single phrase, 3 elements hydraulic type with reasonable structure and excellent reliability, which provide optimum matching with the machines. The outstanding transmissions comparing to the normal ones means the automatic adjustment to the field condition, gradually speed change, improved machine lifetime and traveling ability, easy maintenance, improved working comfort and torque limit set protection function.

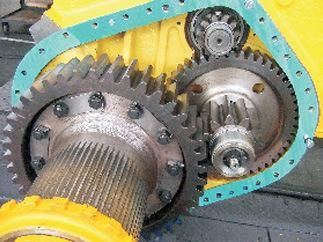

The Final Driving
For tip relieve and crowned gears which features large loading capacity, stable transmission and long lifetime
Blade type
Straight tilt blade
U dozerWidth * Height (mm) 3970*1050 3970*1514 Max.lift above ground (mm) 1180 1180 Max.drop below ground (mm) 440 440 Pitch adjustment (°) 55 55 Max.Tilt (mm) 700 700 Blade capacity (m³) 4.4 6.17
>>>Our Service

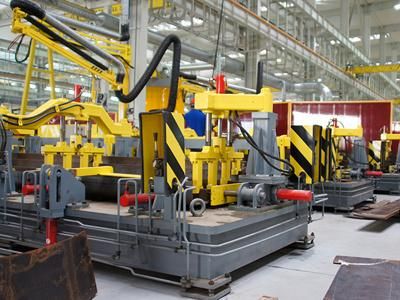

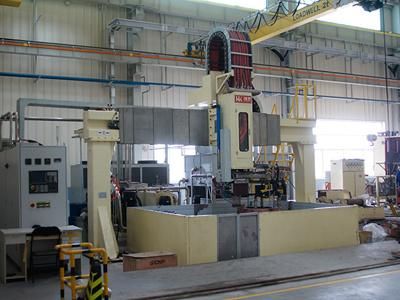

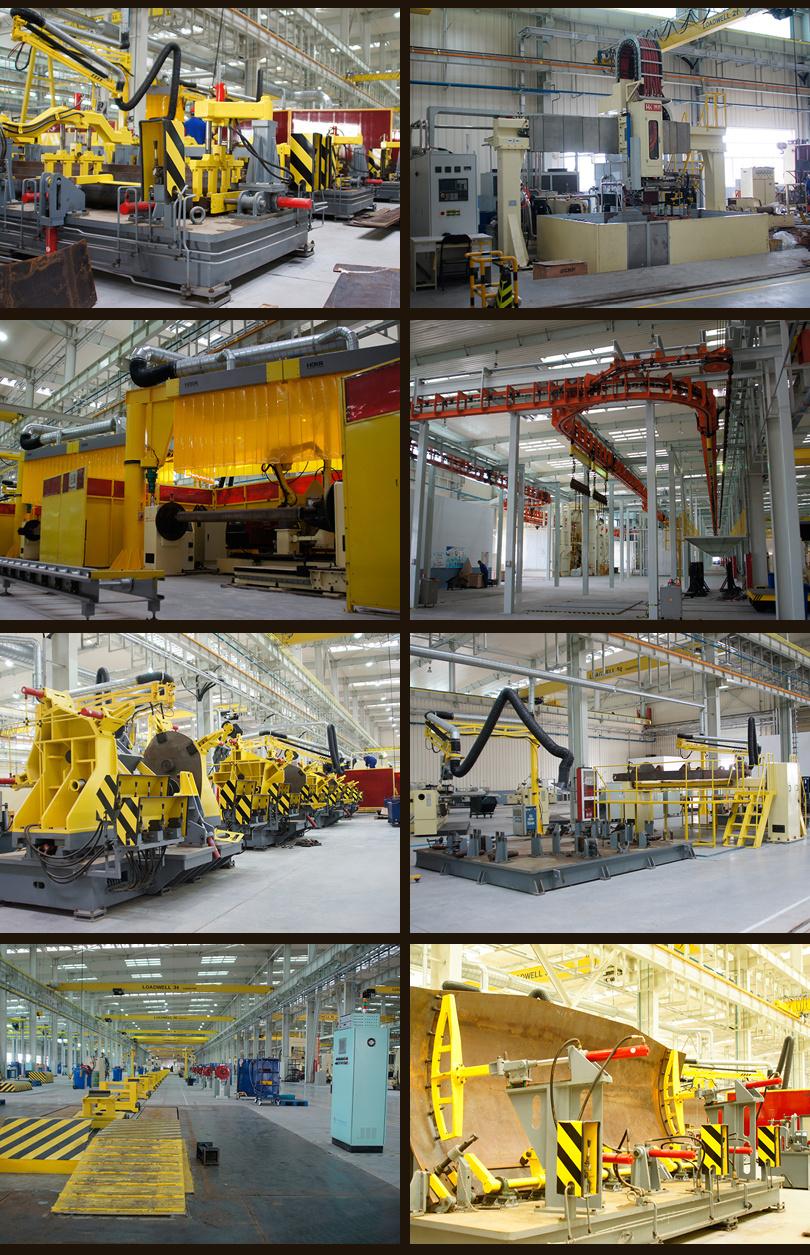

>>>Our workshop
>>>Contact us
Nancy
----------------
QINDING MACHINERY & TOOLS (SHANDONG) CO., LTD.
Add: No. 100, Lingong Road, Linyi City, Shandong Province, China
Tel: 86-539-853 6876
Mobile: 86-13235390332
The gear box is of the planetary gears type, by operating hydraulic control valve for traveling forward and backward. It features planetary gears, multi-disc clutch, hydraulically applied forced lubrication, 3 speeds forward and 3 speeds backwards.
Torque Converter
The torque converters are of the single stage, single phrase, 3 elements hydraulic type with reasonable structure and excellent reliability, which provide optimum matching with the machines. The outstanding transmissions comparing to the normal ones means the automatic adjustment to the field condition, gradually speed change, improved machine lifetime and traveling ability, easy maintenance, improved working comfort and torque limit set protection function.
For tip relieve and crowned gears which features large loading capacity, stable transmission and long lifetime
>>>Key parameter
Straight tilt blade
U dozer
