• Model NO.：CLG6120E,6120E
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：ISO 9001:2000, ISO 9001:2008
• Condition：New
• Mass on Vibrating Drum：10000kgs
• Mass on Drive Axle：10000kgs
• Drum Diameter：1600mm
• Drum Thickness：45mm
• Tyre Type：23.5-25-16pr
• Engine：Sc8d180.3G2b1
• Transport Package：40hq Container
• Trademark：LIUGONG
• Origin：China
• Production Capacity：200units,Month

Basic Info.

Model NO. CLG6120E/6120E Travel Speed 40cm/s Centrifugal Force 40KN Certification ISO 9001:2000, ISO 9001:2008 Condition New Mass on Vibrating Drum 10000kgs Mass on Drive Axle 10000kgs Drum Diameter 1600mm Drum Thickness 45mm Tyre Type 23.5-25-16pr Engine Sc8d180.3G2b1 Transport Package 40hq Container Trademark LIUGONG Origin China Production Capacity 200units/Month

Product Description

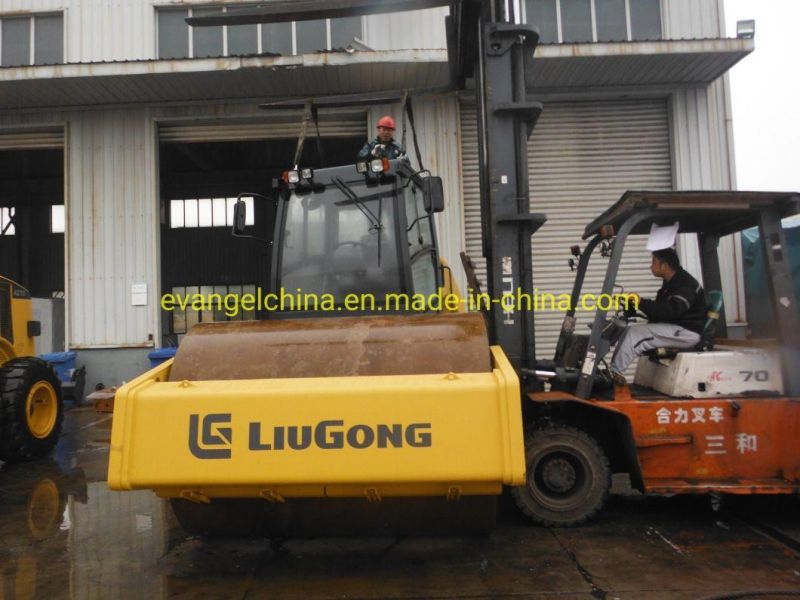

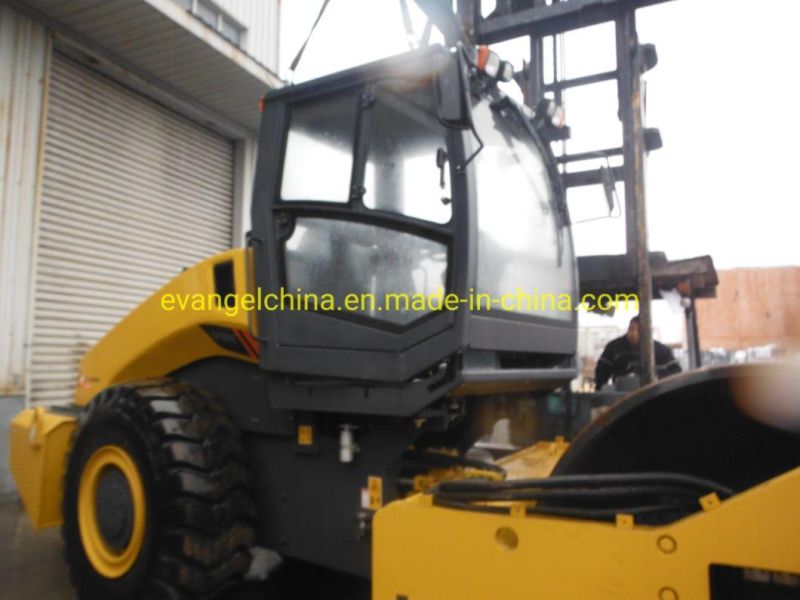

Liugong 20ton hydraulic single drum road roller compactor CLG6120E

• Low Vibration & Noise
  Ergonomic Design
  Foot and Hand Throttles
  Excellent Visibility
• Low Vibration & Noise
  Ergonomic Design
  Foot and Hand Throttles
  Excellent Visibility
• Easy Engine Access
  Convenient Maintenance Ports.
  Easily maintained LiuGong Axle
  Front Bump Cover Easy to Remove
• Dual Frequency Compaction
  Good Fuel Economy
  Large Fuel Tank
  Parallel Gull-Wing Radiator

Item			CLG6120E
Mass		(kg)      Operating Mass	20000
		(kg)       Mass On Vibrating Drum	10000
		(kg)                   Mass On Drive Axle	10000
		(N/cm)         Front Drum Static Linear Load	460
Compaction		(Hz)                  Vibration Frequency	28/33
		(mm)                  Nominal Amplitude	2.0/1.3
		(kN)                   Centrifugal Force	380/280
		(mm)                      Drum Diameter	1600
		(mm)                      Drum Width	2130
		(mm)                   Drum Thickness	45
Drive		(km/h)                   1st Maximum Speed,fwd	2.7
		(km/h)                   2nd Maximum Speed,fwd	5.2
		(km/h)                   3rd Maximum Speed,fwd	11
		(km/h)                   4th Maximum Speed,fwd
		(%)             Theoretical Gradeability	30
		(mm)                    Min. Ground Clearance	450
		(mm)                           Wheelbase	3230
		(°)                   Steering Angle	±35
		(°)                       Swing angle	±10
		(mm)                   Min. Outside Turning Radius	7000
		Tyre Type	23.5-25-16PR
		(kPa)                       Tyre Pressure	300-330
		(mm)                      Overall Length	6450
		(mm)                     Overall Width	2340
		(mm)                      Overall Height	3050
Engine		Brand	Shangchai
		Model	SC8D180.3G2B1
		Emission Regulation	TierII
		(kW)                       Rated Power	132
		(r/min)                       Rated Rotation Speed	1800
		(g/kW.h)                Theoretical Fuel Consumption	223
		(N.m)                        Max. Torque	720
		Number of Cylinders	6
		(L)                    Displacement	8.27
		Aspiration	Turbocharged
		Cooling Type	Water
Hydraulic	Travel Pump	Brand
		Model
		(mL)                         Displacement
	Vibrating Pump	Brand	Danfoss
		Model	90R055
		(mL)                       Displacement	55
	Travel Motor	Brand
		Model
		(mL)                        Displacement
	Vibrating Motor	Brand	Danfoss
		Model	90M055
		(mL)          Displacement	55
	Reduction Gear	Brand
		Model
		Reduction Ratio
Drive Axle		Brand	Liugong
		Model	50C
Volume		(V/Ah)                        Battery	24/200
		(V/A)                         Alternator	28/55
		(L)                                      Rear Axle	24
		(L)                                Vibrating Housing	2.7×2
		(L)                                Fuel Tank	285
		(L)                            Hydraulic Oil Tank	120
		(L)                        Engine Oil	19
		(L)                Transimission/Torque Converter	14.5
		(L)                           Coolant	32
		(L)                        Tyre Wetting	700×2
		(T)                          Weight on Front Axle
		(T)                           Weight on Rear Axle
Padfoot		(mm)                     Padfoot Thickness	18
		(mm)                     Padfoot Height	80
		(cm3)                 Unit Area of Per Padfoot	125
		(cm3)                   Grounding Area	748
		Number of Padfoot	132
		(kg)                     Gross Weight of Padfoot	1463
