0.45cbm 750kgs Weichai Engine Skid Steer Loader Xt740

Evangel Industrial (Shanghai) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：<1t
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：XT740
  • Type：Small Loader
  • Rated Power/Speed：40,2650kw,Rpm
  • Bucket Capacity：0.45cbm
  • Operating Weight：3130kgs
  • Dumping Clearance：2375mm
  • Dumping Reach：600mm
  • Transport Package：Container
  • Specification：3, 270mmx1, 807mmx1, 970mm
  • Trademark：EVANGEL
  • Origin：China
  • Production Capacity：200units,Month

Description

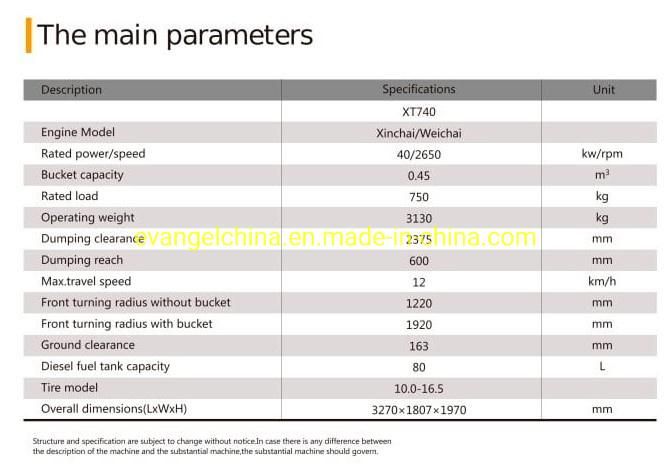

DescriptionSpecificationsUnit XT740 Engine ModelWeichai Rated power/speed40/2650Kw/rpmBucket capacity0.45m3Rated load750kgOperating weight3130kgDumping clearance2375mmDumping reach600mmMax. travel speed12Km/hFront turning radius without bucket1220mmFront turning radius with bucket1920mmGround clearance163mmDiesel fuel tank capacity80LTire model10.0-16.5 Overall dimensions(L*W*H)3270*1807*1970mm0.45cbm 750kgs Weichai Engine Skid Steer Loader Xt740
