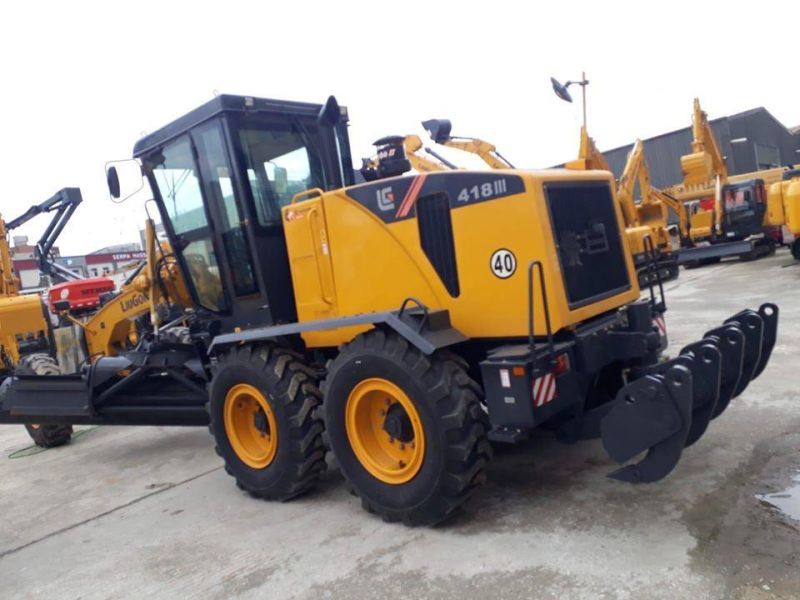

Liugong High Quality 180HP Motor Grader with Ripper
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic - Mechanical
- Walking Mode：Wheeled
- Type：Small Grader
Base Info
- Model NO.：CLG4180D
- Operating Weight：15500 Kg
- Weight on Front Wheels：4650 Kg
- Weight on Rear Tandem：10850 Kg
- Drawbar Pull：86 Kn
- Model：Cummins 6btaa5.9-C190
- Emission Regulation：Tier 2 , Stage II
- Rated Power：142 Kw (193 HP) @ 2200 Rpm
- Net Power：128 Kw (174 HP) @ 2200 Rpm
- Maximum Travel Speed, Forward：42 Km,H
- Maximum Travel Speed, Reverse：26.2 Km,H
- Turning Radius：7300 mm
- Maximum Overall Height：3500 mm
- Width Over Tires：2600 mm
- Blade Width：3960 mm
- Overall Length：9265 mm
- Transport Package：Nude
- Specification：9385*2600*3580 mm
- Trademark：Acntruck
- Origin：China
- HS Code：8429209000
- Production Capacity：200 Units, Month
Description
- Fuel Efficient Dongfeng Cummins Engine.
- Low Vibration, Noise, Dust +UV Resistant cab
- Meritor wet axle with "no-spin" differential lock as standard
- Balance box enables the 4 rear wheels to swing up and down by +/- 15°
| Model | CLG4180 |
| Operating weight | 15500 kg |
| Weight on front wheels | 4650 kg |
| Weight on rear tandem | 10850 kg |
| Drawbar pull | 86 kN |
| Model | Cummins 6BTAA5.9-C190 |
| Emission regulation | Tier 2 / Stage II |
| Rated power | 142 kW (193 hp) @ 2200 rpm |
| Net power | 128 kW (174 hp) @ 2200 rpm |
| Type | Power shift |
| Speeds | 6f / 3r |
| Maximum travel speed, forward | 42 km/h |
| Maximum travel speed, reverse | 26.2 km/h |
| Turning radius | 7300 mm |
| Articulation angle | ±20° |
| Maximum overall height | 3500 mm |
| Width over tires | 2600 mm |
| Blade width | 3960 mm |
| Overall length | 9265 mm |
