Road Machine 22t Soil Compactor Sem522 Road Roller Single Drum Roller
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Single-Foot
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Slot Grind
- Compaction Depth：40cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：SEM522
- Travel Speed：40cm,s
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Machine Mass：22000kg
- Freqency：30,28Hz
- Static Linear：507n,Cm
- Engine：129kw
- Engine Speed：2000r,Min
- Fuel Tank：262L
- Hydraulic Oil Tank：80L
- Compaction Width：2130mm
- Drum Diameter：1600mm
- Drum Thickness：50mm
- Tire：20.5-25
- Dimension：6250X2310X3200mm
- Wheelbase：3100mm
- Speed：2.98-5.88-9.60km,H
- Max. Gradeability：34%
- Transport Package：Roro
- Specification：22000kg
- Trademark：SEM
- Origin：Shandong, China
- HS Code：8429401100
- Production Capacity：10000 Units, Year
Description
Basic Info.
Model NO. SEM522 Travel Speed 40cm/s Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Machine Mass 22000kg Freqency 30/28Hz Static Linear 507n/Cm Engine 129kw Engine Speed 2000r/Min Fuel Tank 262L Hydraulic Oil Tank 80L Compaction Width 2130mm Drum Diameter 1600mm Drum Thickness 50mm Tire 20.5-25 Dimension 6250X2310X3200mm Wheelbase 3100mm Speed 2.98-5.88-9.60km/H Max. Gradeability 34% Transport Package Roro Specification 22000kg Trademark SEM Origin Shandong, China HS Code 8429401100 Production Capacity 10000 Units/ YearProduct Description
Road Machine 22t Soil Compactor SEM522 Road Roller Single Drum Roller

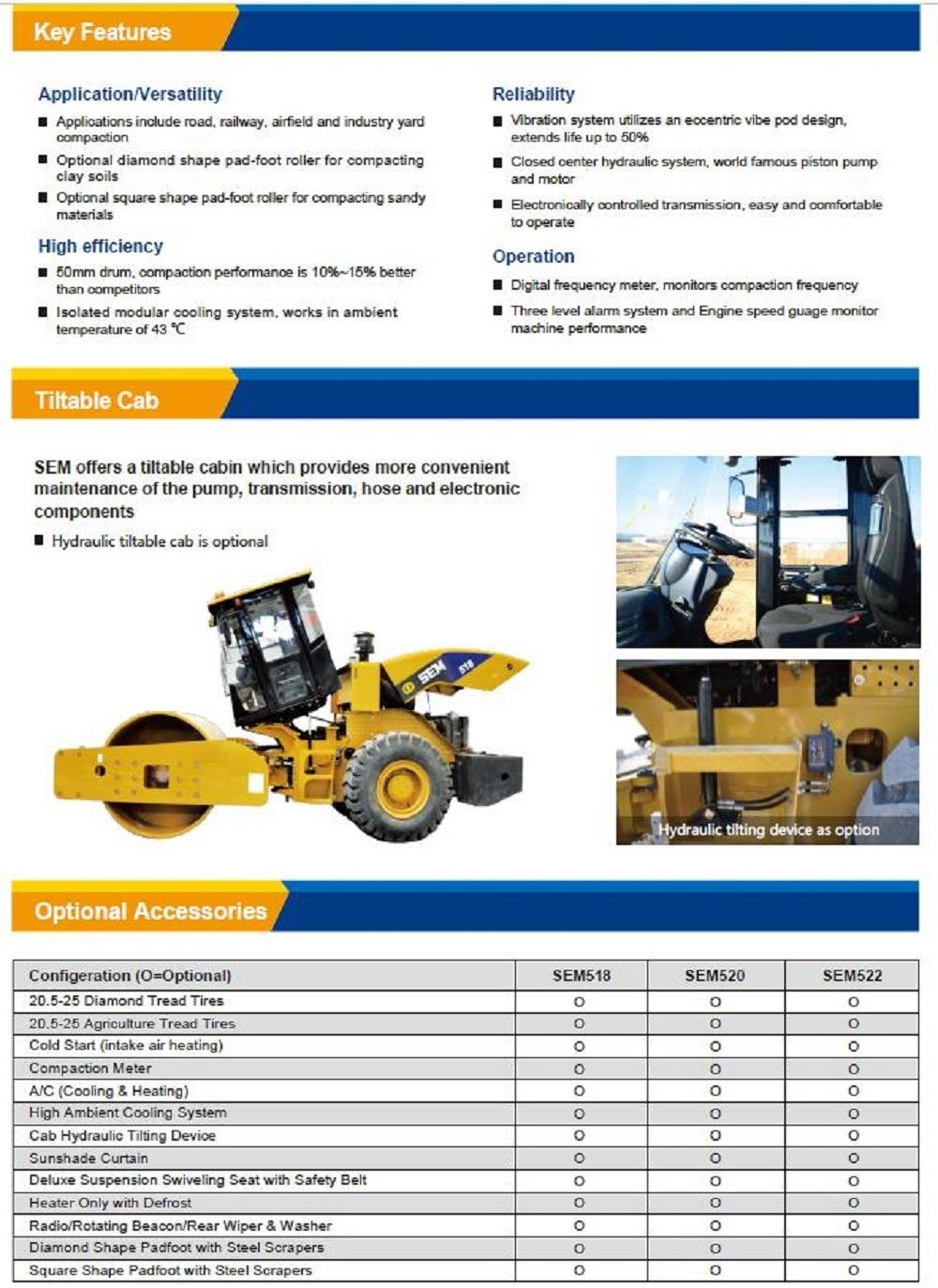

Advantages:
* High Efficiency: The unique vibratory pod design along with 50 mm thick drum provides superior compaction performance

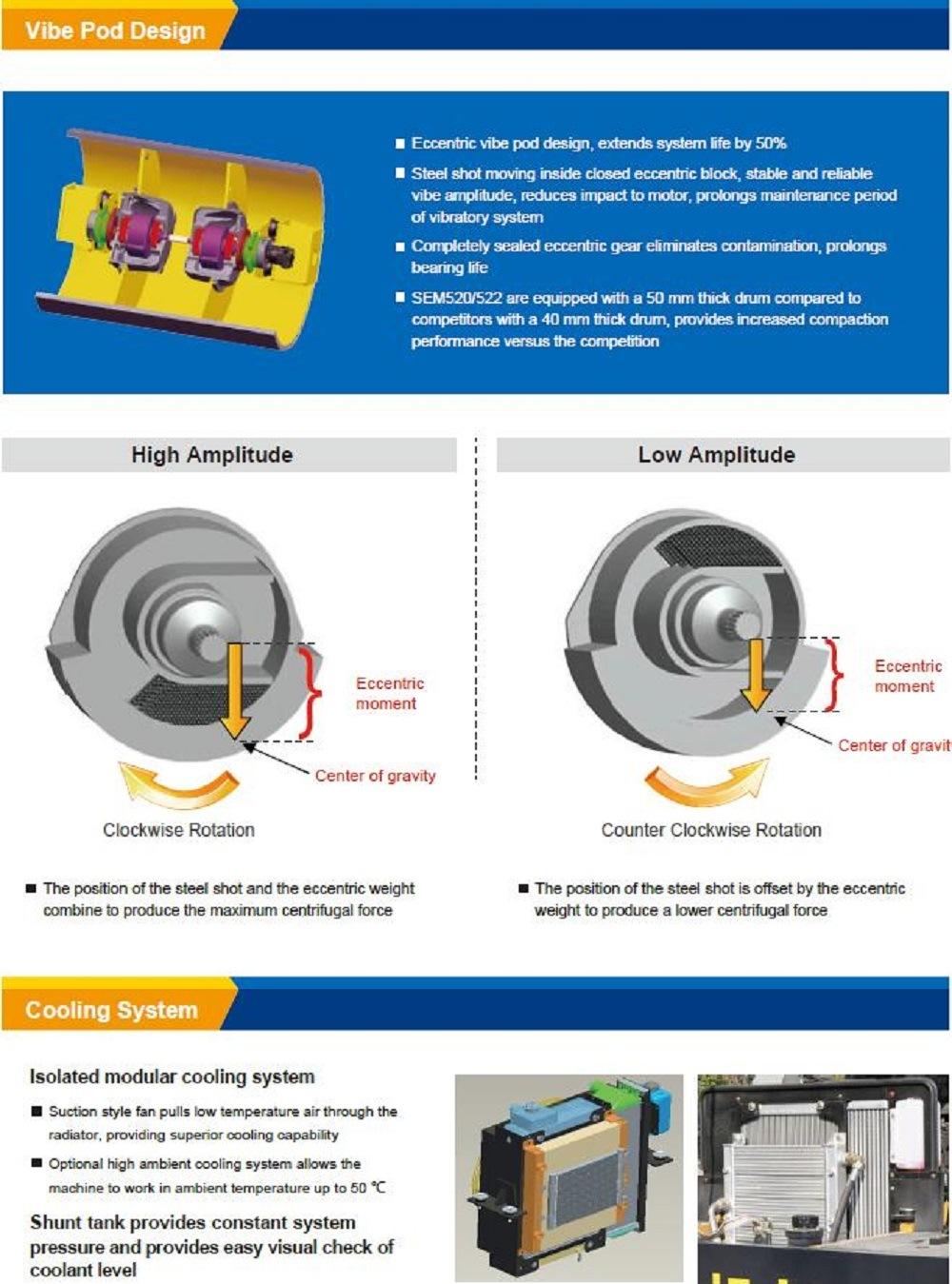

* Reliability: Vibration system utilizes eccentric vibe pod design, extends life over 50%

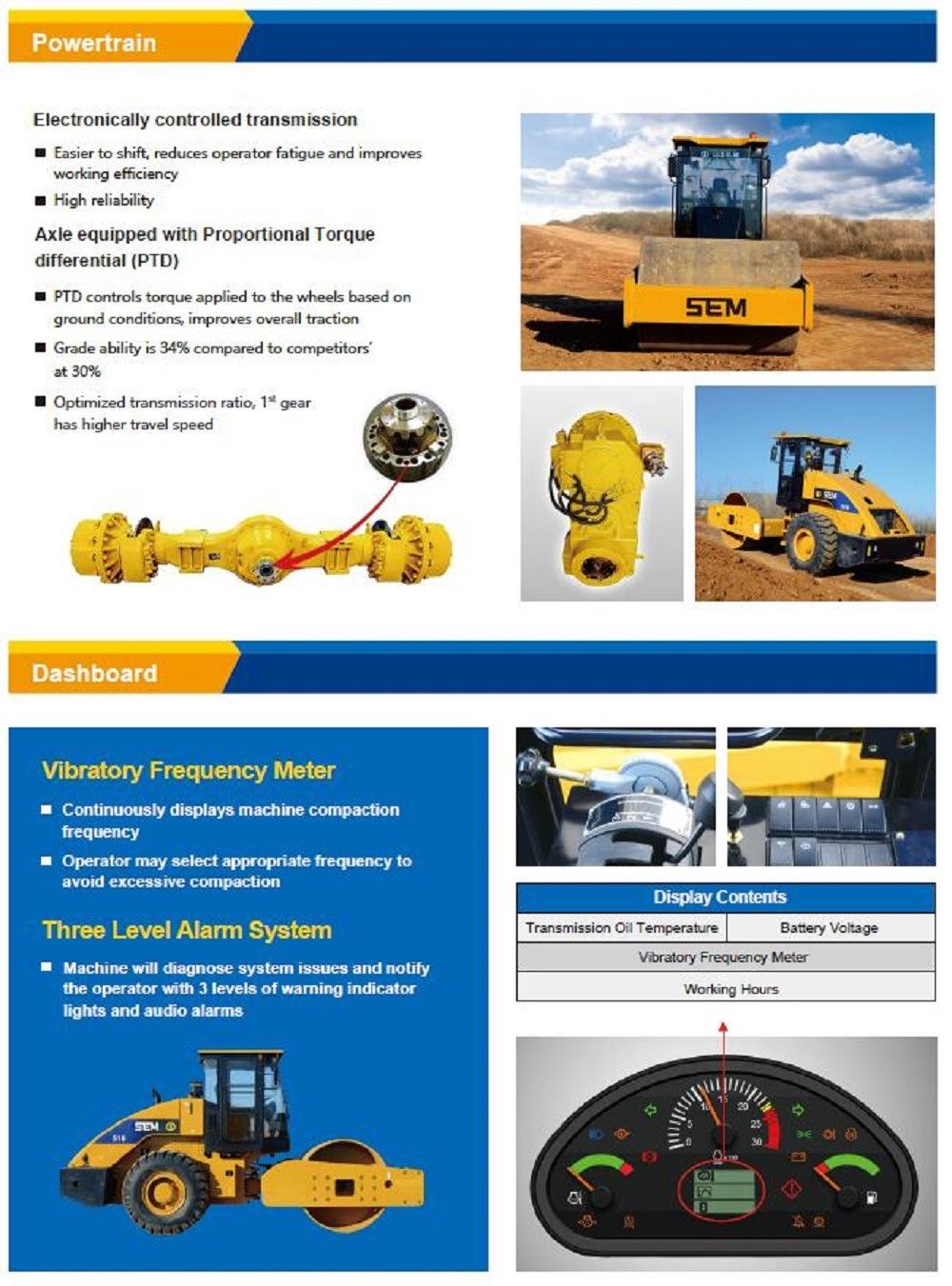

* Operation: Digital frequency meter and three level alarm system monitor machine performance

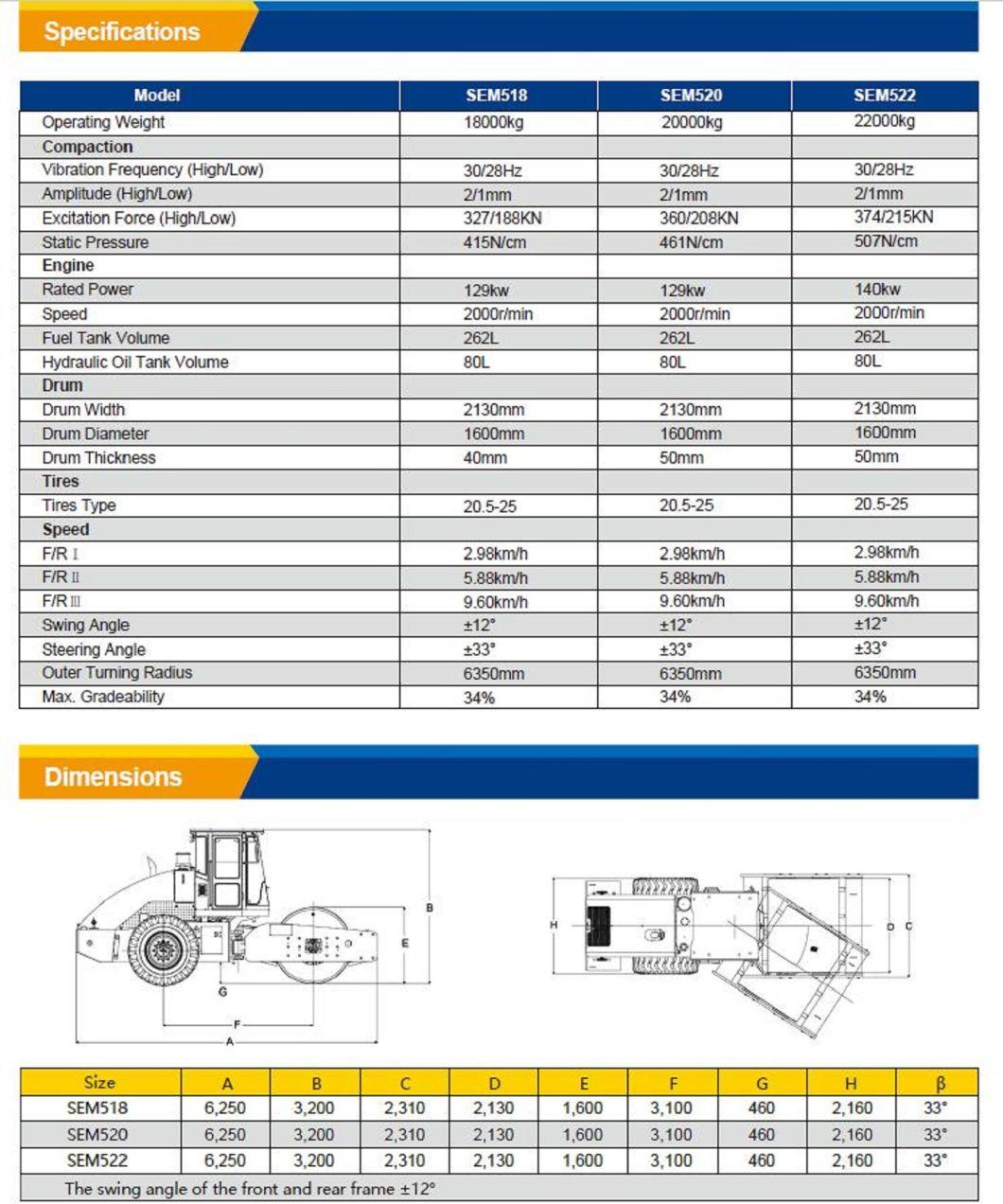

Specification:
