• Model NO.：SEM618D
• Type：Medium-sized Loader
• Operating Weight：5940kg
• Bucket Capacity：0.9-1.0m3
• Max. Drawbar Force：55kn
• Dump Clearance：2,691mm
• Rated Power：60r,Min
• Displacement：4.76L
• Power：232kw
• Transport Package：Nude
• Specification：8180x3024x3423 mm
• Trademark：Maxizm
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：1000 Units,Year

Basic Info.

Model NO. SEM618D Type Medium-sized Loader Operating Weight 5940kg Bucket Capacity 0.9-1.0m3 Max. Drawbar Force 55kn Dump Clearance 2,691mm Rated Power 60r/Min Displacement 4.76L Power 232kw Transport Package Nude Specification 8180x3024x3423 mm Trademark Maxizm Origin Shandong, China HS Code 8429510000 Production Capacity 1000 Units/Year

Product Description

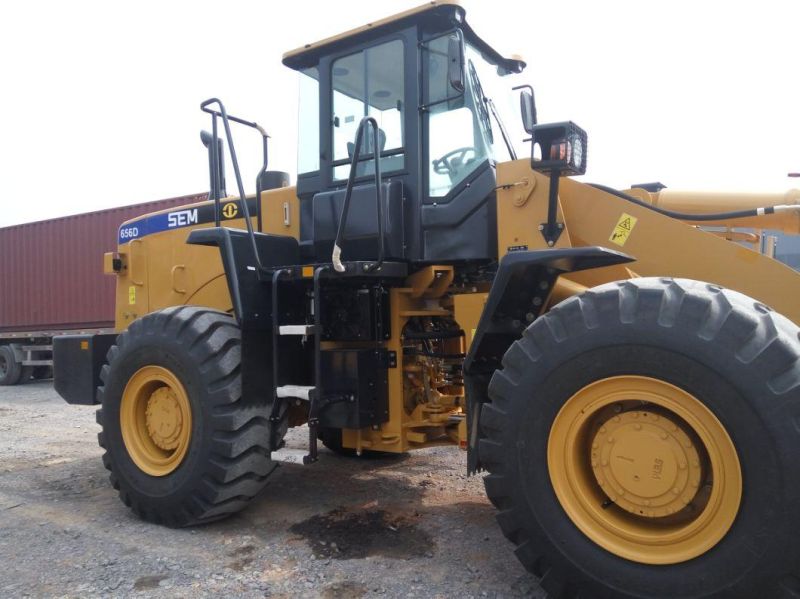

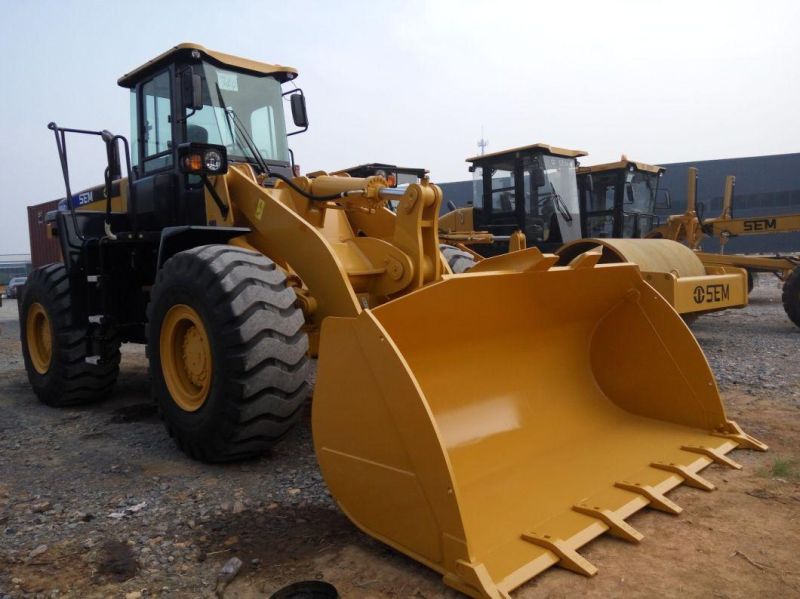

Caterpillar 1.8ton Heavy SME Wheel Loader SME618D Hot Sale

Durability: Famous YTO engine, mature countershaft transmission & axle, proved made in house frame all of them providing the longer usage life

High Efficiency: Larger breakout fore and rimpul, fast HYD cycle time ensure high working

efficiency O&O Cost: Low speed engine, flow shared HYD system helps to save fuel and raise efficiency

Comfortable: Premium fiber seat with 4 direction and suspension adjustable, lower noise cab make operation environment more comfortable



Engine

• High efficiency thermal energy control technology, provide higher reliability and efficiency
• Powerful engine with 30% torque reserve, make this machine suitable for most of applications
• Special technology control oil consumption, special design on piston and sleeves make this happen. Fuel/oil rate lower than 0.2%
• Strength engine body design for more durability and lower noise

Efficient Hydraulic System

• Full load-sensing steering hydraulic system bring lower fuel consumption and good operation feeling
• Professional pump, valve and hose deliver higher reliability
• Excellent line routing reduce abnormal leakage make hydraulic system more reliable
• Quick movement with 7.8s cycle time deliver higher productivity

Operator Station

• First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable
• AC optional for better temperature control inside cab

Drivetrain

• Professional counter shaft transmission and axle make machine more reliable
• One stage, 3 elements torque convert higher efficiency

Cooling System

• High performance aluminum cooling package provides high reliability
• Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications
• Damping design reduce vibration failure

Solid Structure

• Validated by Cat technology FEA( Finite Element Analysis) and OMSA(On Machine Stress Analysis)
• Middle articulation frame less work space requirement, reduce tire resistance and save fuel
• Large spread hitch design in acticulation section can stand more load

Serviceability

• Quick pressure test ports on HYD and brake lines make diagnose easier
• Large wing hood door make service easier, approach to air cleaner, fuel filter and oil filter
• Large spread hitch design in articulation section make operator easier to approach

Safety

• High decibel Beacon and backup alarm make person around easy to attention
• Two boosters design make brake effective

Machine Applications

• Widely used in Municipal, livestock production and farms
• Also in industrial, recycled material processing in countryside, cement making and etc.

• Item     Unit    Params
• Main Specifications
• Rated Load
  kg   1,800
• Operating Weight with Standard Bucket
  kg
  5,940
• Bucket Capacity
  m3
  0.9-1.0
• Wheel Base
  mm
  2,200
• Overall Dimension
  mm
  5,901*2,000*2,822
• Max. Drawbar Force
  KN
  55
• Breakout Force
  KN
  63
• Dump Clearance
  mm
  2,691
• Transmission
• Transmission Type

  Countershaft, power shift
• Transmission Gears

  F2/R2
• Torque Converter Type

  Single stage, 3 elements
• Maker & Type

  ZL15
• Forward I/Reverse I

  9.8/9.6
• Forward II/Reverse II

  24/23.6
• Axle
• Main Drive Type

  Spiral bevel gear, single stage
• Final Drive Reduction Type

  Planetary type, single stage
• Rear - Oscillating +/

  ±12
• Engine
• Model

  YT4B4-22
• Rated Power
  kW
  60
• Rated Speed
  r/min
  2,200
• Displacement
  L
  4.76
• Implement Hydraulic
• Implement System Type

  Open center
• Boom Raise Time
  s
  4.35
• Hydraulic Cycle Time
  s
  7.8
• System Pressure Setting
  Mpa
  17
• Brake System
• Service Brake

  Dry&caliper, air to oil control
• Parking Brake

  Disk & Caliper
• Steering System


• System Type

  Shared flow
• Steering Pump Type

  Gear pump
• System Pressure Setting
  Mpa
  14
• Steering Angle (L/R)

  35±1
• Tires
• Size

  16/70-20
• Type

  PR
• Layer

  14
• Textured Type

  L-3
