• Model NO.：PY130
• Pitch Length：18.5mm
• Overall Length：1369mm
• Transport Package：Pallet
• Specification：130*18.5*74
• Trademark：according to buyers
• Origin：Shanghai China
• HS Code：8431499900
• Production Capacity：1000

Basic Info.

Model NO. PY130 Pitch Length 18.5mm Overall Length 1369mm Transport Package Pallet Specification 130*18.5*74 Trademark according to buyers Origin Shanghai China HS Code 8431499900 Production Capacity 1000

Product Description

Product Information:

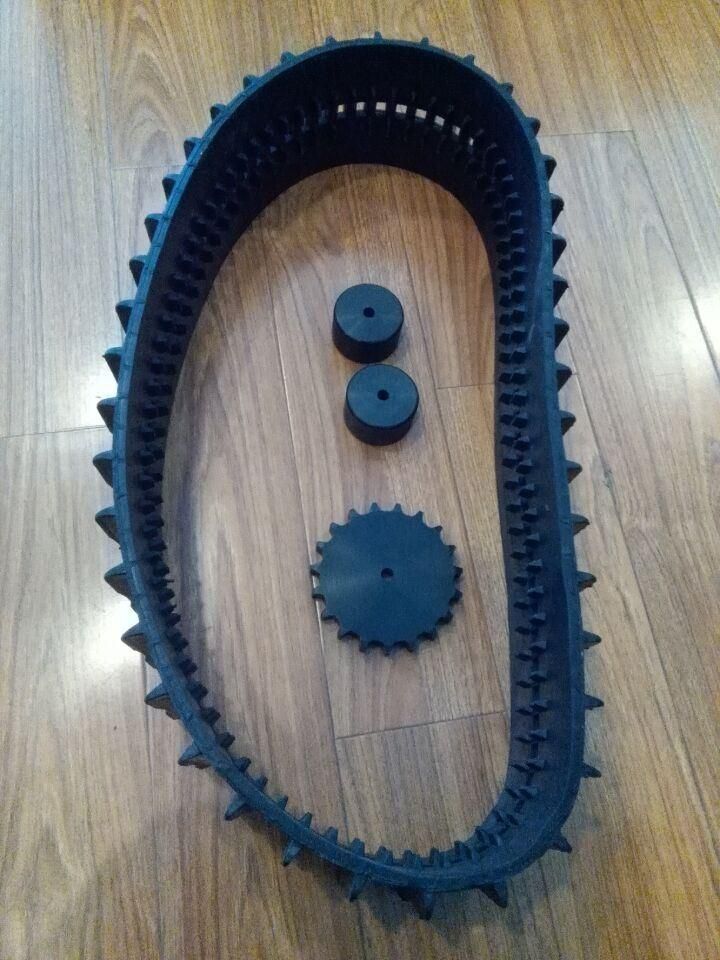

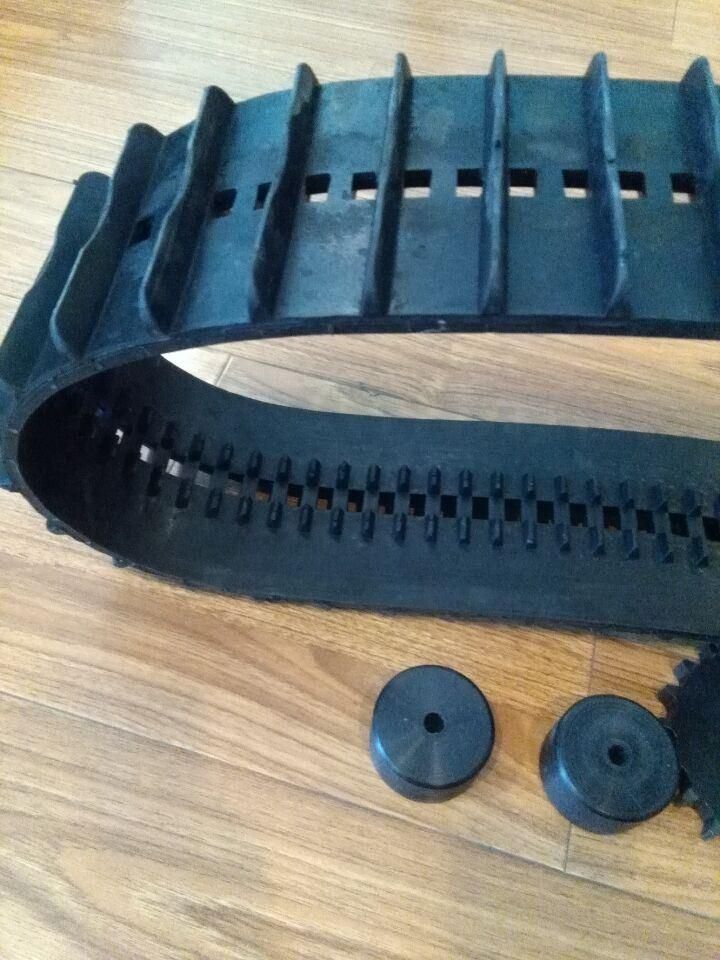

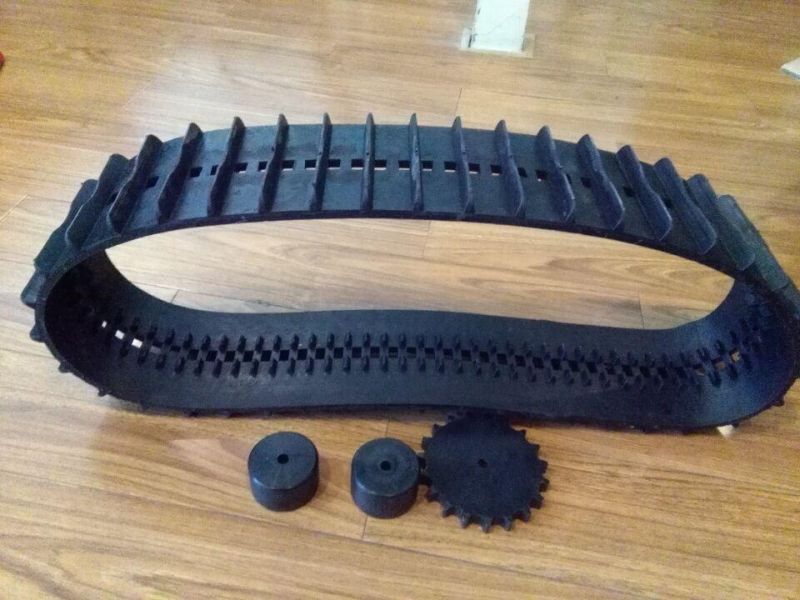

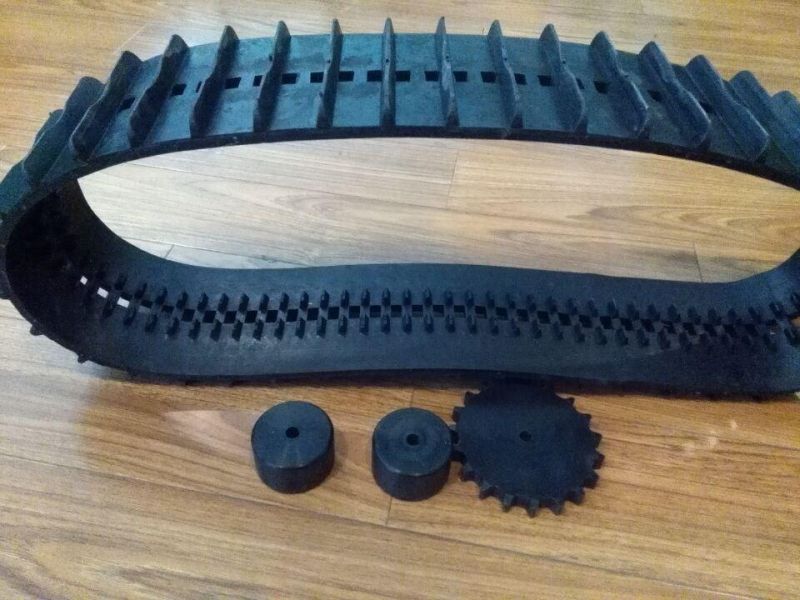

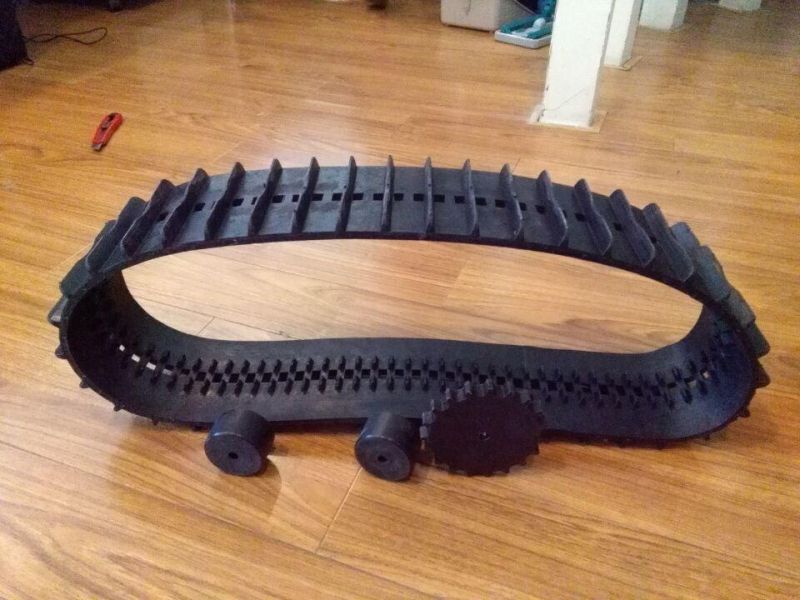

Supplier for High Quality Small Robot Rubber Track (130X18.5X74)
1. Small order accept
2. Fast delivery
3. Advanced technique

Specifications:
1. Characteristics of High Quality Small Robot Rubber Track:
1). Rubber track with Less damage to the ground surface
2). Low noise rubber track
3). High running speed rubber track
4). Less vibration rubber track;
5). Low ground contack specific pressure rubber track
6). High tractive force rubber track
7). Light weight rubber track
8). Anti-vibration rubber track

2. Convontional type or interchangeable type rubber track

3. Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, carrier vehicle, agriculture machinery, paver and other special machine.

4. The gap between iron cores is very small so that can sopport the track roller completely during driving, reduces the shock between machine and rubber track.

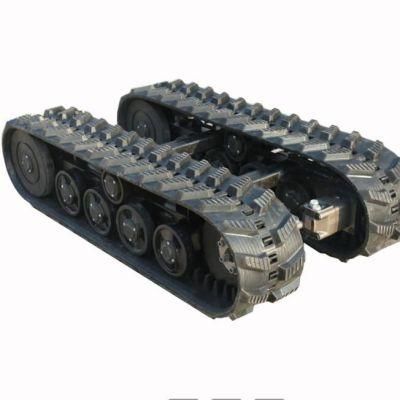

5. The length can be adjusted to meet your needs. You can use this model on robot, rubber track chassis.

Please send us your requirement towards the width and length of the rubber tracks,we will make a recommendation for you.
Wheels diameter adjustable according to your need,so if you also want the wheels,please send us the diameter to us.

Rubber track we can supply:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76
