• Model NO.：350Kx55Bx70
• Pitch：55mm
• Link：70
• Weight：161.7kg
• Length：3850mm
• Material：Rubber and Steel
• Delivery：30 Days After Payment
• Warranty：Guarantee 12 Months Under Normal Use
• Export Market：Global
• Transport Package：Bare Packing or Wooden Pallets
• Specification：350K*55B*70
• Trademark：POOYERT , OEM
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000 Per Month

Basic Info.

Model NO. 350Kx55Bx70 Pitch 55mm Link 70 Weight 161.7kg Length 3850mm Material Rubber and Steel Delivery 30 Days After Payment Warranty Guarantee 12 Months Under Normal Use Export Market Global Transport Package Bare Packing or Wooden Pallets Specification 350K*55B*70 Trademark POOYERT / OEM Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Per Month

Product Description

Product Information:

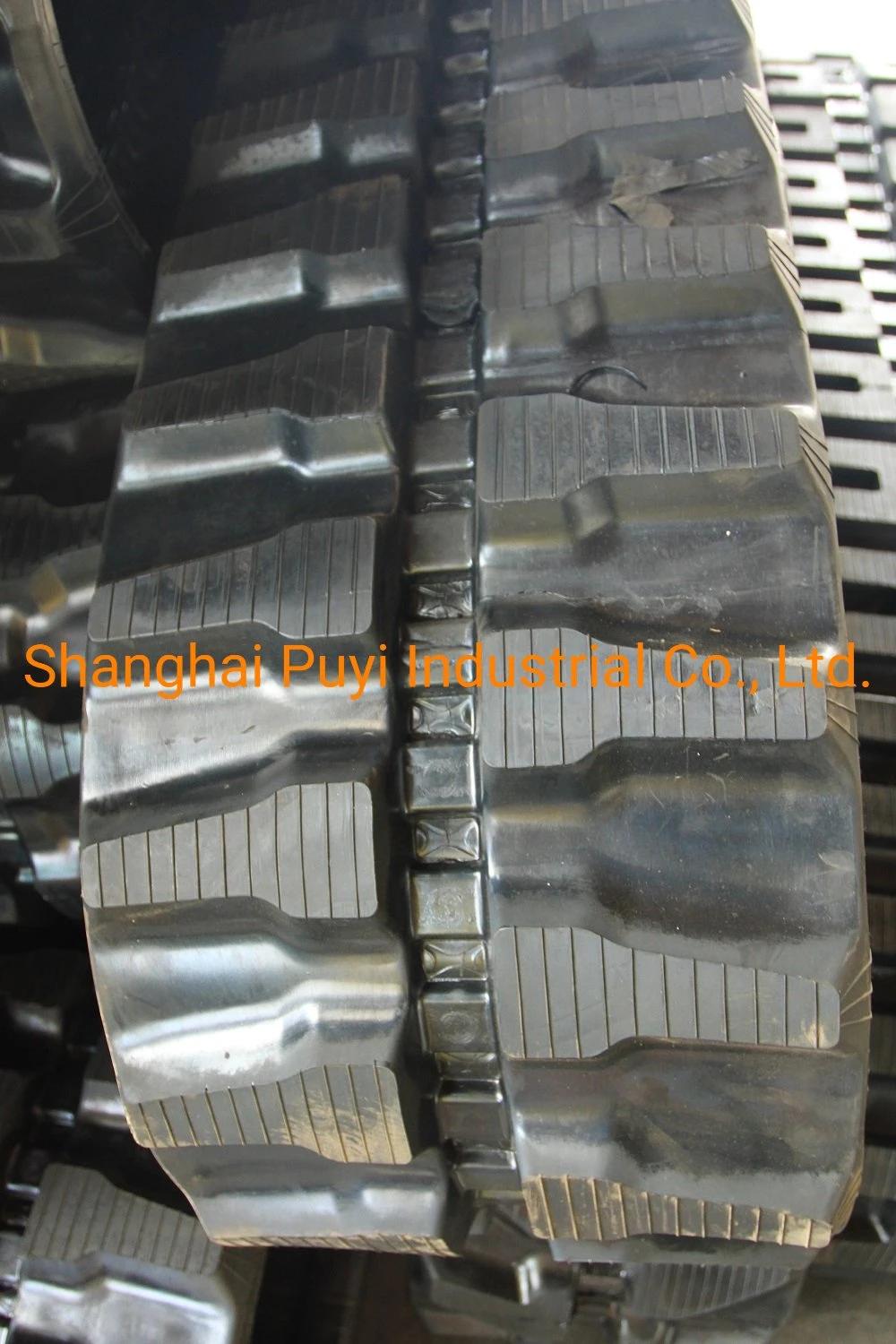

Width350K*Pitch55B*Link70

Manufacture of excavator rubber tracks, small rubber track for robot, mini-excavator rubber

tracks, combine harvester rubber tracks, rice harvester rubber tracks, wheat harvester rubber

tracks, ATV rubber tracks ASV rubber tracks and UTV rubber tracks, snow mobile rubber tracks,

scooters rubber tracks, all-terrain carrier rubber tracks, crawler robot rubber tracks, swamp

truck, amphibious tank rubber tracks, agriculture machinery rubber tracks and construction

machinery rubber tracks.

We have ISO9001 quality certification. All of our products have both competitive price

and excellent quality.


1. Installation of the Rubber Tracks
A. Too small strength: Easily causes jumping teeth, riding a tooth or steering failure of the guide wheels and supporting wheels and leads to track derailment or escapes.
B. Too large strength: Track wire will be deformed at the elongation by the excessive strain tensile, which will make the pitch changed, and track core iron and the drive wheels abnormally worn, also will make teeth touched and the track broken, the machine power loss larger, track wear exacerbated, belt crack easier as well as the track life shorter. After the track is strained, the maximum sag distance is 10-15mm, just as the pitch below.

2. Attention
In order to extend the life of rubber tracks, please complete the following work:
A. Never turn urgently on the concrete floor, gravel road, or hard and sharp road, in order to avoid speeding up the wearing, twisting and chapping of the rubber track.
B. Try not to work in the rotten field, to avoid rubber track skid and wear.
C. When the stones or other objects come into the crawler and chassis, stop immediately, and clear gravels or obstacles.

3. Warns
A. Do not travel on the road full of footstone, spinous-stone, scrap iron and other objects.
B. Do not drive in the rivers, streams and on the seacast or any rugged road.
C. Do not make the track unilaterial landing.
D. Forbid aggressive driving.
E. Avoid making a turn rapidly, please slow down and make a turn gradually.

Parameters for more size:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

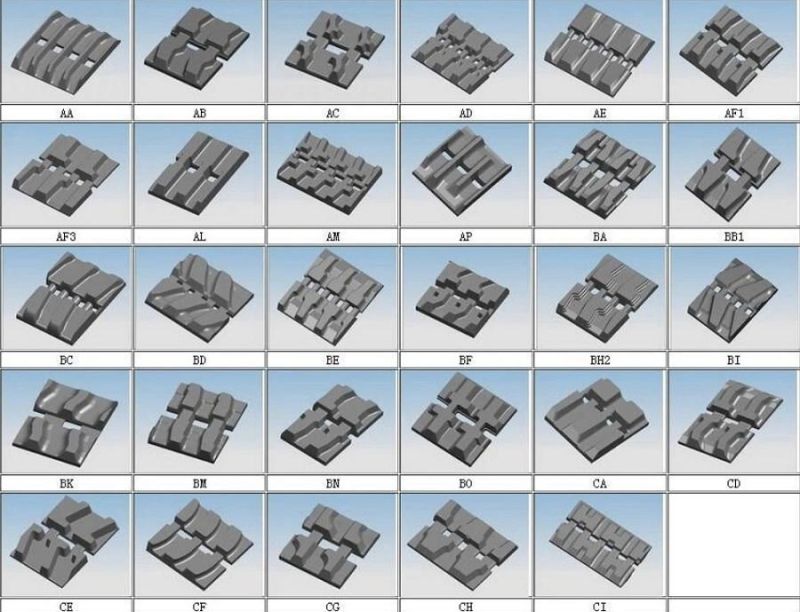

Patterns of lug


About us

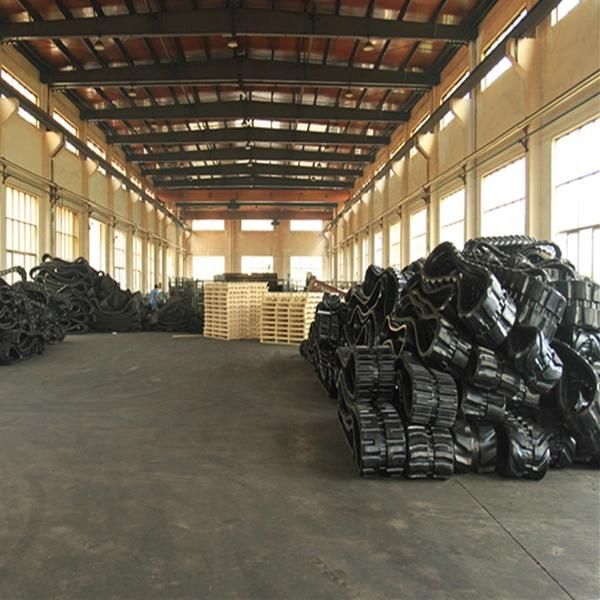

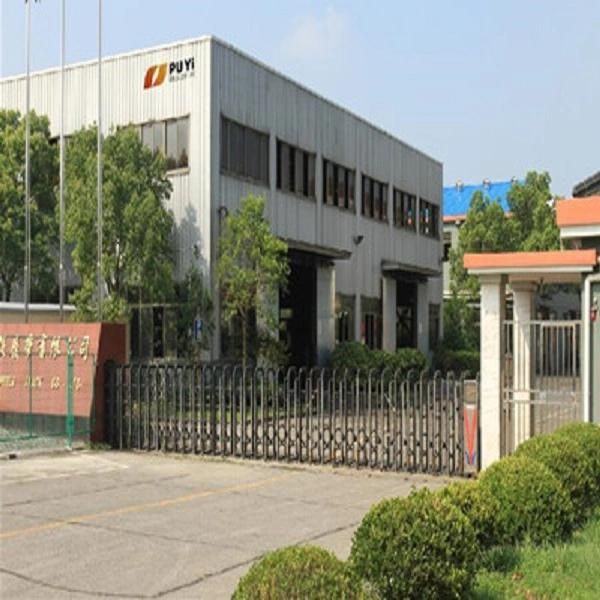

Shanghai Puyi Industrial Co., Ltd mainly produce Rubber Tracks in China. With rubber factory in Shanghai we are strong in offering various of rubber tracks for: crawler, bulldozer, excavator, asphalt paver, (mini)harvester, snowblower, snowmobile, wheelchair, robot…ect.  OEM are available.



FAQ
1. Are you a trading company or Manufacturer?
We maufacture products ourself and we source from other collaborative factories too which guarantees a competitve price and product variety.

2. How do I know your quality?
We can take parts photoes for your reference and show you different quality and you can compare with others

3. I'm a end user and I need small quantity, what do I do?
Pls check with our sales team if it's in stock, if have stock and we can send you via Dhl, Fedex and so on.

4. Can I get a sample first? And how does it charge?
As practice, we will charge the sample, and after we received the bulk order, we will return the sample fee to our customer

5. What's the benefit for long term importers or distributors?
For those regular customers, we offer incredible discount, sample free shipping, free sample for custom design, custom packaging and QC as per custom requirements.

6. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We received paypal western union and directly bank transfer to our company account, you also can transfer to our alibaba company bank account.

7.Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

8.Do you test all your goods before delivery?
Yes, we have 100% test before delivery

9.How do you make our business long-term and good relationship?
We have good quality and competitive price to ensure our customers benefit.
We respect every customer as our friend and we sincerely do business with them.
Welcome to contact with us, Thank you very much.
