• Model NO.：Excavator Mounted PD90
• Size：All Size
• Certification：CE, ISO9001: 2000
• Condition：New
• Available Rigidity Rock：F=6-16
• Drill Scope：27-64mm
• Drill Speed：500-1000mm,Min
• Lowest Horizontal Hole Height：250mm
• Once Propel Travel：3m
• Compressor Type：1.8m3-3.2m3
• Drifter Weight：90kg
• Whole Weight：1.2t
• Transport Package：Standard Package
• Specification：CE, SGS
• Trademark：PRODRILL
• Origin：China
• HS Code：82071990
• Production Capacity：10pec,Months

Basic Info.

Model NO. Excavator Mounted PD90 Size All Size Certification CE, ISO9001: 2000 Condition New Available Rigidity Rock F=6-16 Drill Scope 27-64mm Drill Speed 500-1000mm/Min Lowest Horizontal Hole Height 250mm Once Propel Travel 3m Compressor Type 1.8m3-3.2m3 Drifter Weight 90kg Whole Weight 1.2t Transport Package Standard Package Specification CE, SGS Trademark PRODRILL Origin China HS Code 82071990 Production Capacity 10pec/Months

Product Description

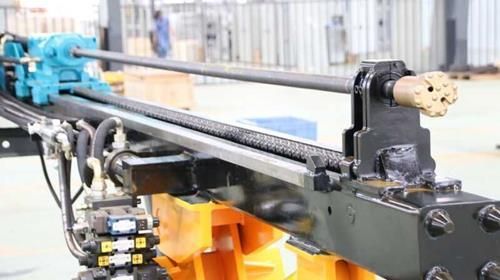

Prodrill Excavator Mounted PD90 Rock Drill Machine Construction Machinery


Excavator Mounted Drill Rig attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concretre demolition, construction works, etc. ProDrill rock drills' percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator's boom.

Besides demanding conditions, ProDrill Excavator Mounted Drill Rig can also be used as hydraulic rock splitter to demolish over sized rock bad and huge concrete building removal.

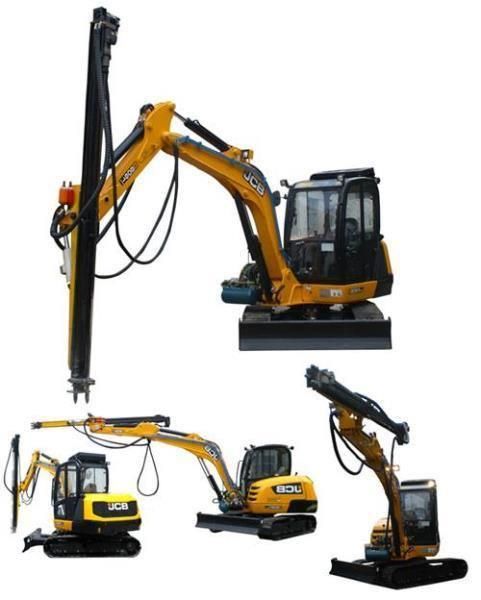

1. Excavator Mounted Drill Rig
1 meter per Min
Excavator mounted rock drilling attachments are designed to be used in various job sites such as drilling and blasting, quarrying & Mining, rock bolting, rock and concretre demolition, construction works, etc. ProDrill rock drills' percussion hour to engine hour ratio is exceptionally good at 60 %, which is substantially higher than what can be achieved with conventional drilling rigs. This is best proven in difficult conditions where other solutions fail to drill holes without the exceptional reach of the excavator's boom.
A. QL-Y90 EXCAVATOR MOUNTED HYDRAULIC DRILL RIG

FOCUS ON BIG HOLE


2-3/, . QL-Y90, 38-89mm, , QL-Y90. Excavator Mounted Drill Rig

Drilling speed can up to 2-3 meters per minute, but don"t need a big compressor.
The drill hole diameter of QL-Y90 excavator mounted hydraulic drill rigrange from 38 to 89 mm, it is the best choice for the big hole.
B. QL-Y45 EXCAVATOR MOUNTED
HYDRAULIC DRILL RIG

products type	PD-90
available rigidity rock	F=6-20
drill scope	38-89mm
drill speed	500-1000mm/min
lowest horizontal hole height	250mm
once propel travel	3m
oil pressure	≤19Mpa
compressor type	1.8m3-3.2m3
size	7488*140*252mm
drifter weight	115kg
whole weight	1.2t
