Dam Foundations Grouting Plant Station for Building and Bridge Repair
Zhengzhou Lead Equipment Co., Ltd.- Type：Cement Grout Plant
- Shotcrete Type：Cement Grout Plant
- Machining Process：Hydraulic
- Structure：Piston Type
- Productivity：0-80L,Min
- Certification：ISO9001: 2000, CE, SGS
Base Info
- Model NO.：LGP400,700,80PL-E
- Condition：New
- Color：Green

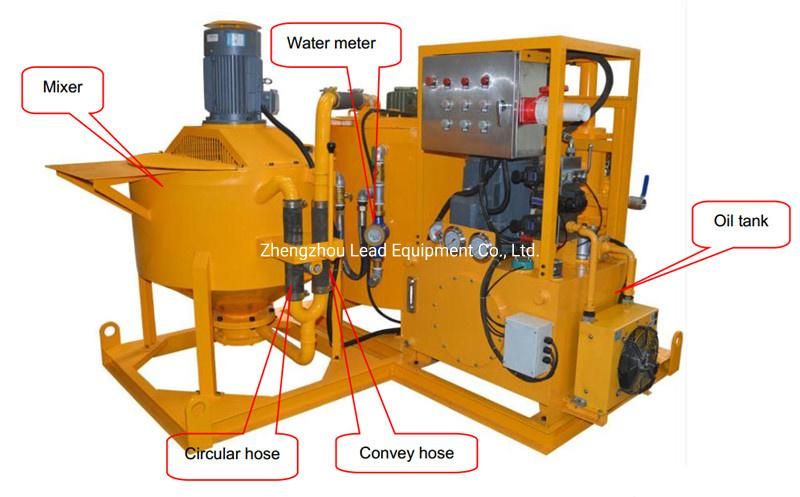

- Model：Injection Pump Plant

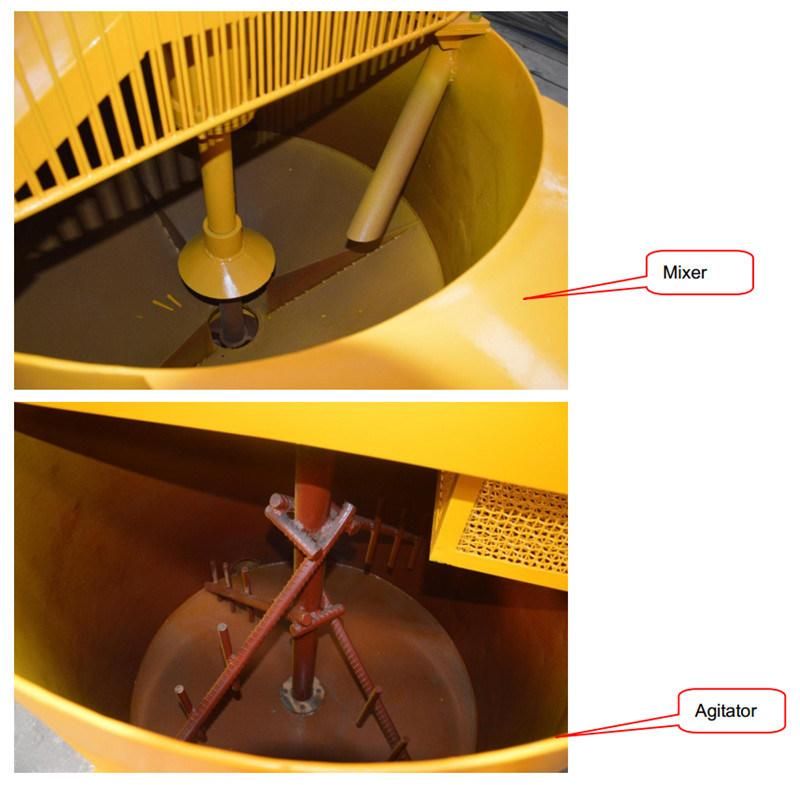

- Mixer Volume：400L
- Mixer Output：6m3,H
- Mixer Power：7.5kw
- Agitator Volume：700L
- Agitator Rated Rev.：36rpm

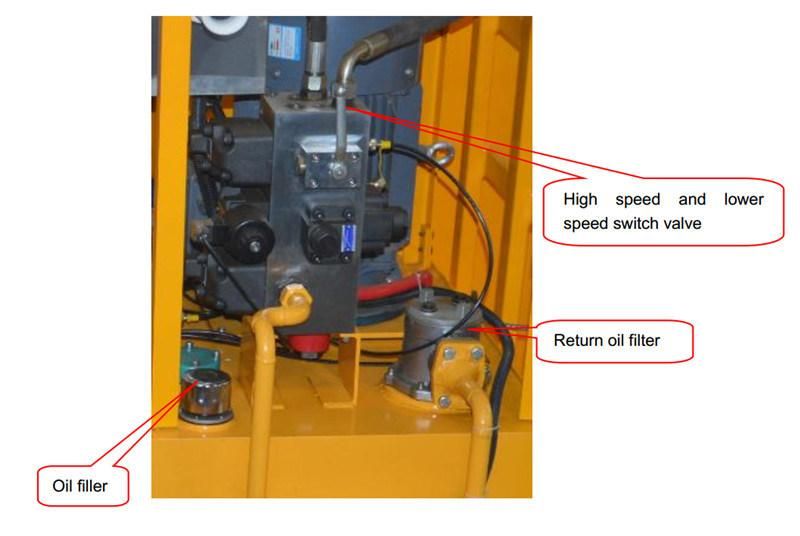

- High Speed Pressure / Output：0-2.5MPa 0-80L,Min
- Low Speed Pressure / Output：0-4.5MPa 0-58L,Min
- Grout Station Weight：1350kgs
- Suitable W/C Ratio：≥0.5:1
- Warranty：12 Months
- Transport Package：Nude Package or According to Customer Requirement
- Specification：2500*2200*1730mm
- Trademark：Leadcrete
- Origin：China
- HS Code：8413509090
- Production Capacity：15sets,Month
Description
Low speed: 0-4.5MPa 0-58L/min
Application:
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting.
Acted as a grouting plant in the Pipe Jacking Machine
Company Information:
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.
