• Model NO.：HQ915T
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000, Rops&Rops,SGS
• Condition：New
• Max Lift Height：4.6m
• Loading Weight：1.5 Ton
• Egnine：Yanmar Engine , Euro 5
• Transport Package：2 Units in a Hq40 Container
• Specification：CE, ISO, SGS, ROPS&FOPS
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：8000 Units , Year

Basic Info.

Model NO. HQ915T Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Small-Scale Certification CE, ISO9001: 2000, Rops&Rops,SGS Condition New Max Lift Height 4.6m Loading Weight 1.5 Ton Egnine Yanmar Engine / Euro 5 Transport Package 2 Units in a Hq40 Container Specification CE, ISO, SGS, ROPS&FOPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / Year

Product Description

Haiqin Brand  Farm Telescopic Small Front End Loader (HQ915T) with Ce and Euro 5 engine



1, HQ915T  Farm Telescopic Small Front End Loader Standard Equipment:

China Yunnei or Xinchai498BT Engine(EuroIII Engine), Standard Bucket, Real Rops & Fops Cabin, Quick Hitch, Joystick Handle, Comfortable high quality Seat, Adjustable Steering Wheel, 23.5/70-16 Agricultural Tyre, Wheel-reducer Axle, Disc Brake, 130W Heater, Backward camera, Blinking Lamp Without Key, Free Service Spare Parts.

2, Details Specifications of HQ915T  Farm Telescopic Small Front End Loader

1.0 Engine Details
(1) Model: China YUNNEI or  Euro III Xinchai A498BPT
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW (50.32H. P. )
(4) Rated Speed: 2200 r/p. Min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw. H

2.0 Transmission System :Hydraulic converter + drive shaft + axles

3.0 Bucket
(1) BucketCapacity: 0.65 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 1500kg including attachment

4.0 Overall Dimensions
(1) Overall Length: 5920mm
(2) Overall Height: 2650mm
(3) Overall Width: 1800mm
(4) Max. Lifting Height: 4600mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick handle
(6) Self levering

6.0 Brake System

(1) Service Brake: Disc brake

(2) Parking Brake: Hand operated

7.0 Tyre: Model: 23.5/70-16
8.0 Wheelbase: 2400mm
9.0 Track: 1415mm
10. System pressure: 20Mpa; Hydraulic output: 70L/min
11, Operation weight:4400kg

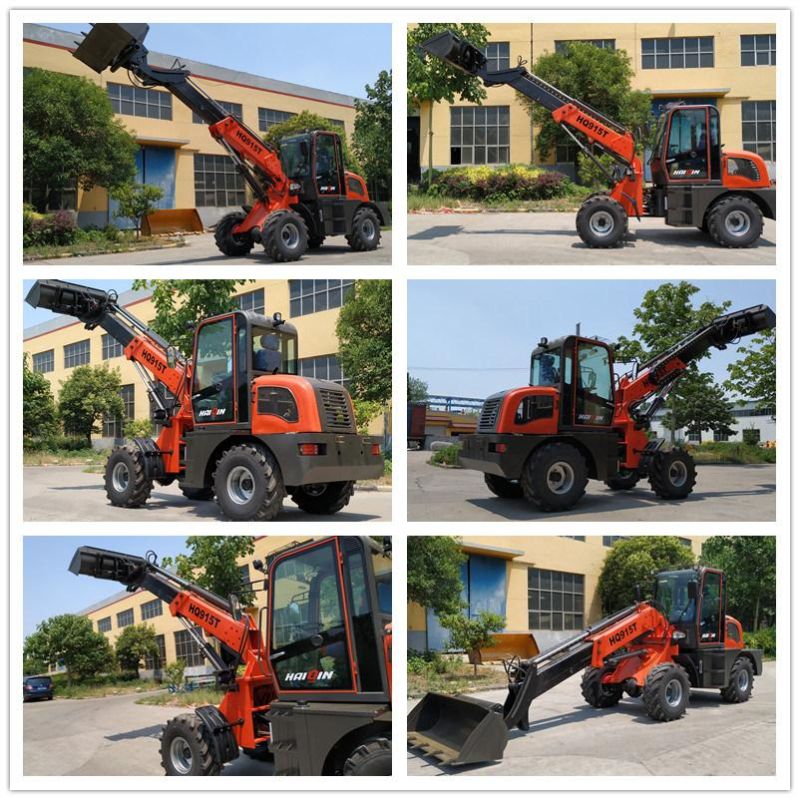

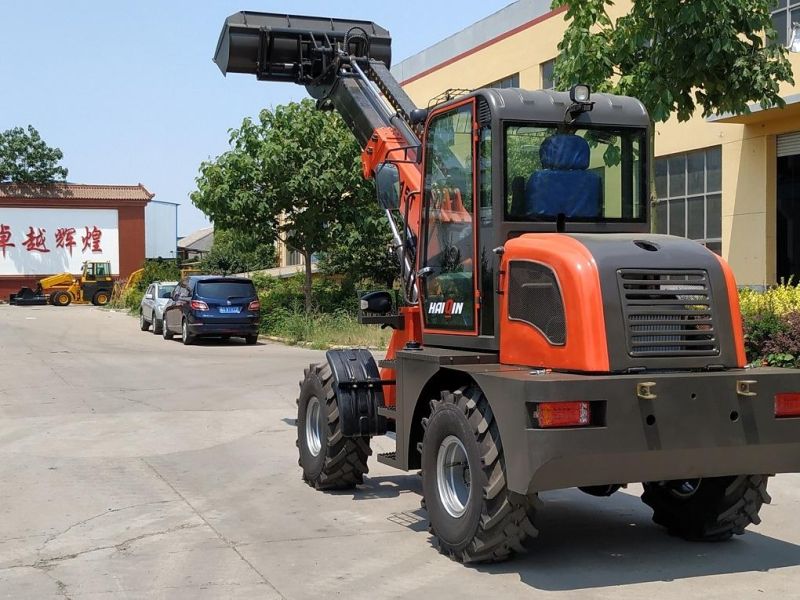

3, Details Photos of HQ915T  Farm Telescopic Small Front End Loader

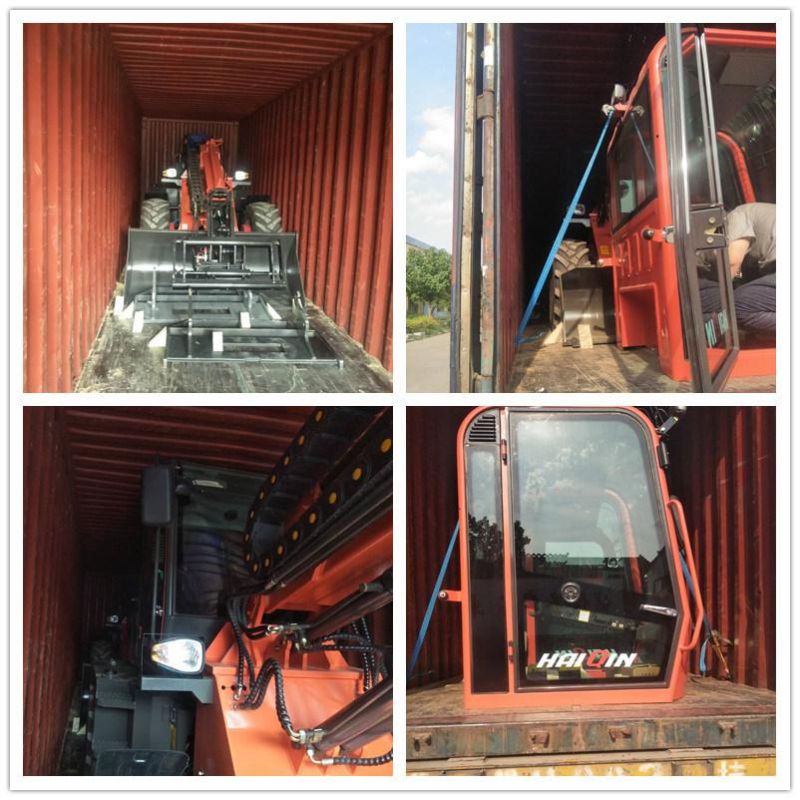

4, Professional Loading and Packing of HQ915T  Farm Telescopic Small Front End Loader

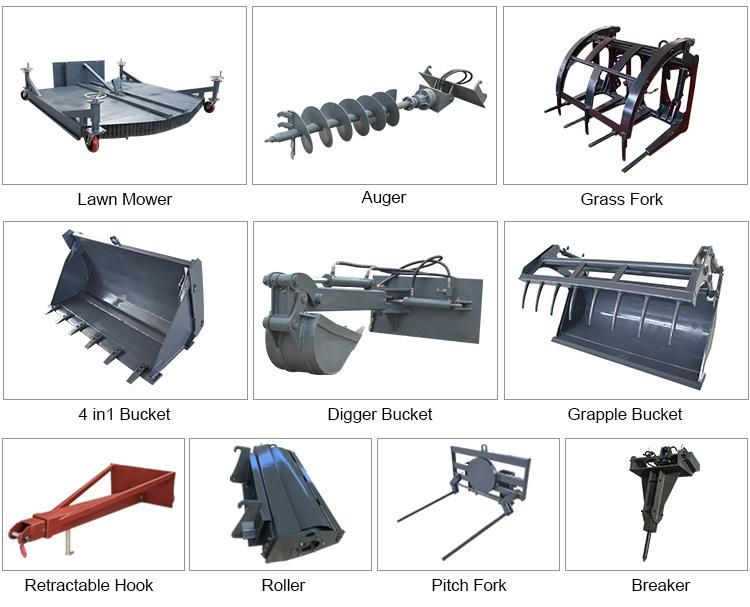

5, Optional Attachments for HQ915T Telescopic Loader

6, Factory introduction of Haiqin Machinery

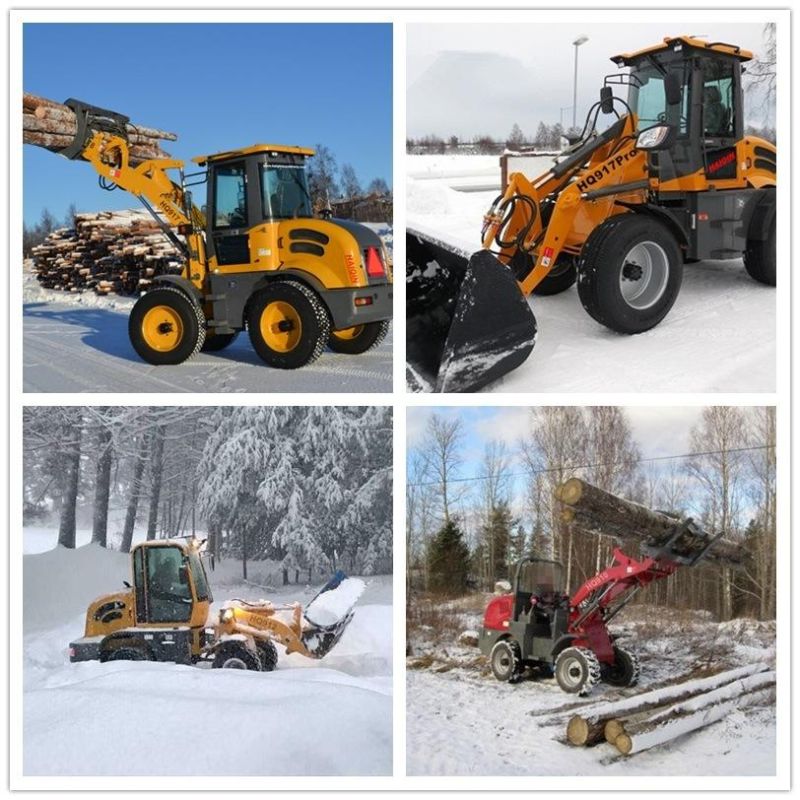

7, Working Case in the foreign countries of Haiqin Machinery' Loaders.

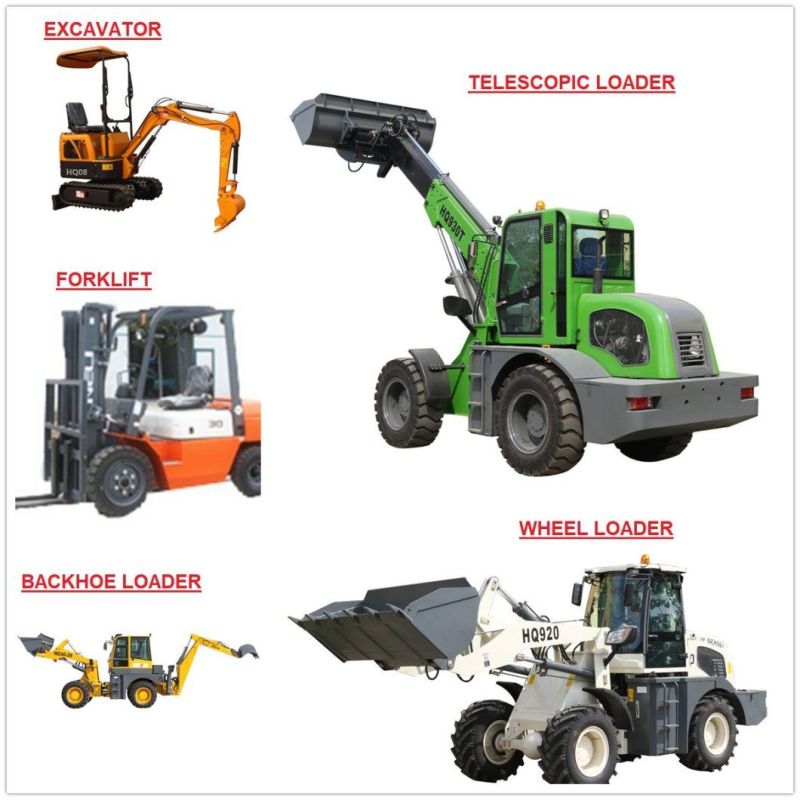

8, MORE PRODUCT CATEGORIES

9, Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
