• Model NO.：HB37A
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Chassis Model：Isuzu
• Emission Stage：Euro III
• Concrete Output：120 M3,H
• Max. Vertical Reach：37 M
• Transport Package：Nude
• Specification：CE, ISO, GOST
• Trademark：Oriemac
• Origin：Jiangsu, China
• Production Capacity：4000PC,Month

Basic Info.

Model NO. HB37A Vibrating Amplitude 2.6mm Certification ISO9001: 2000, CE Condition New Color Yellow Chassis Model Isuzu Emission Stage Euro III Concrete Output 120 M3/H Max. Vertical Reach 37 M Transport Package Nude Specification CE, ISO, GOST Trademark Oriemac Origin Jiangsu, China Production Capacity 4000PC/Month

Product Description

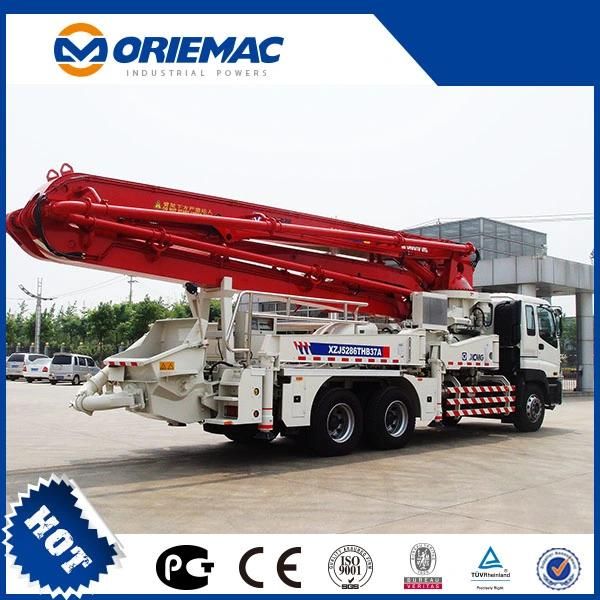

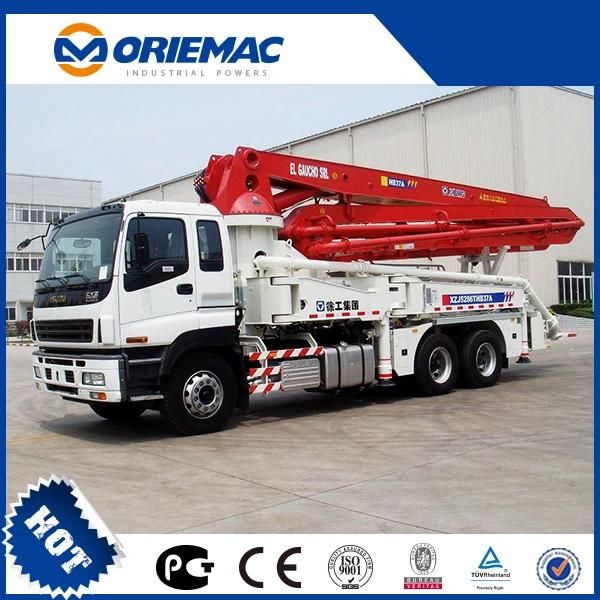

37m Concrete Pump with ISUZU Truck HB37A


No.	Item	Unit	Parameter
1	Max. speed	km	90
2	Min. turning diameter	m	18.4
3	Brake distance	m	7
4	Approach angle	°	31
5	Departure angle	°	12
6	Chassis model		CXZ51Q ( Japan )
7	Total weight	kg	28150
8	1st axle load	kg	6780
9	2nd, 3rd axle load	kg	21220
10	Engine model		6WF1
11	Max. Engine power	kW	287
12	Max. Engine torque	N.m	1862
13	Max. grade-ability	%	38
14	Fuel consumption limit	L/100km	34
15	Outline dimensions (Length´ Width ´Height)	mm	11990´2490´3900

Technical Data for Pumping Operation


No.	Item	Unit	Parameter
1	Theoretical output	m 3 /h	138/90
2	Max. delivery pressure	MPa	8.7/13
3	Reach height	m	37.4
4	Reach depth	m	23.7
5	Front outrigger transverse span	mm	7280
6	Rear outrigger transverse span	mm	6600
7	Outrigger longitudinal span	mm	6860
8	Delivery pipe diameter	mm	125
9	Remote control distance	m	100
10	Placing boom slewing range	°	370
