• Model NO.：QY50K
• Base Boom：11m
• Min. Rated Working Radius：3m
• Max. Grade Ability：40%
• Max. Lifting Torque：1764kn.M
• Brake Distance：24m
• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• HS Code：8705109100
• Production Capacity：100PCS,Month

Basic Info.

Model NO. QY50K Base Boom 11m Min. Rated Working Radius 3m Max. Grade Ability 40% Max. Lifting Torque 1764kn.M Brake Distance 24m Transport Package Nude Specification CE Trademark KUDAT Origin China HS Code 8705109100 Production Capacity 100PCS/Month

Product Description

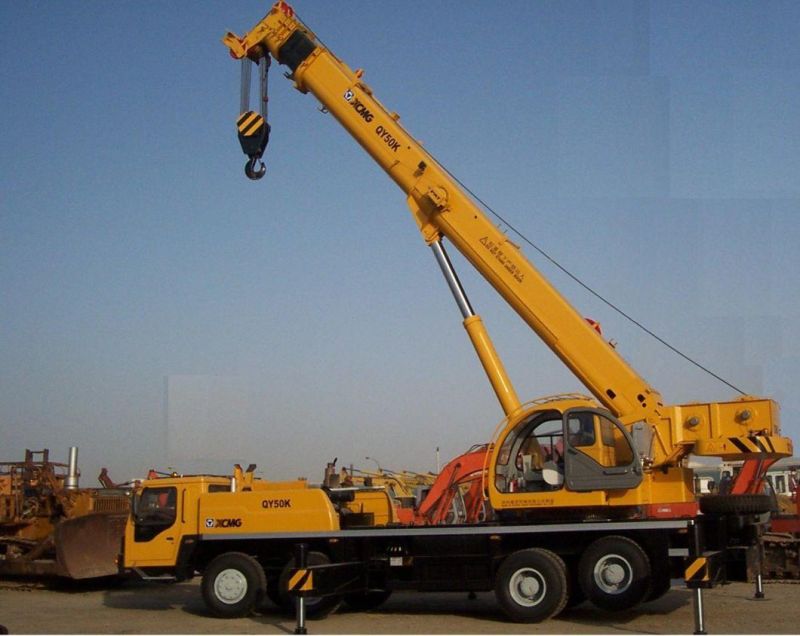

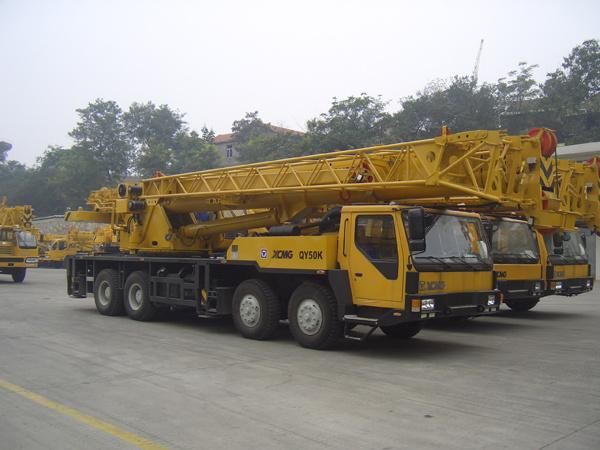

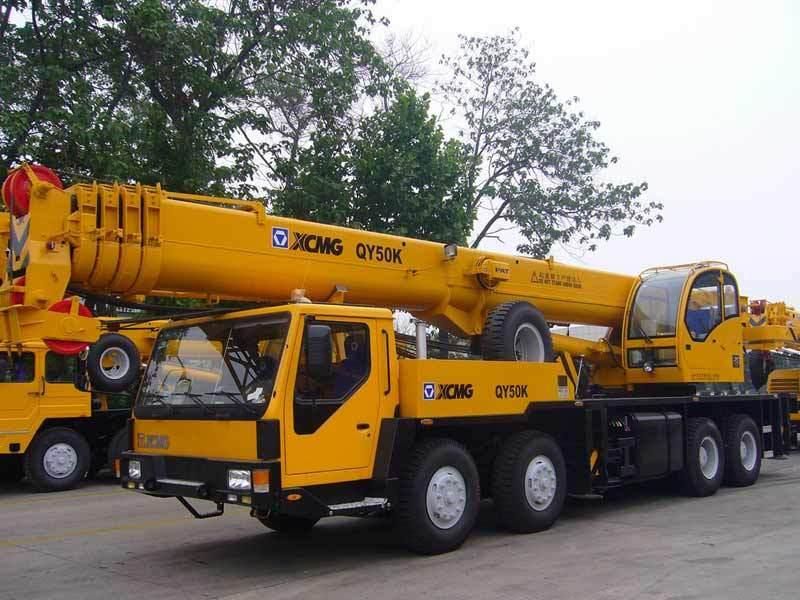

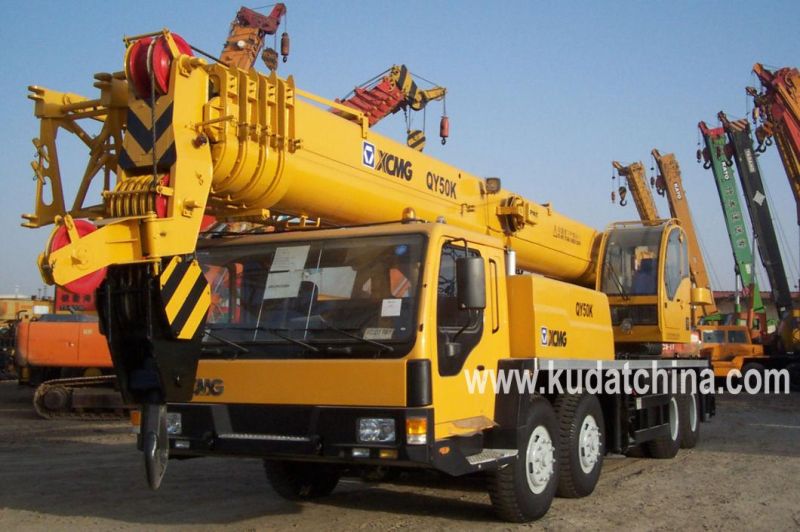

Main Specification for the QY50K Truck Crane
Dimension Unit  QY50K
Overall length  mm  13750
Overall width  mm  2800
Overall height  mm  3520
Weight
Total weight in travel  kg  41000
Front axle load  kg  15000
Rear axle load  kg  26000
Power
Engine model  WD615.334(domestic III)
Engine rated power  kW/(r/min)  247/2200
Engine rated torque  N.m/(r/min) 1350/1400
Travel
Max. travel speed  km/h  80
Min. turning diameter  m  24
Min. ground clearance  mm  291
Approach angle  °  17
Wuhan Kudat Industry & Trade Co., Ltd.

Add: Room 401 E1 Building, Optical Valley Software Park, East Lake High-Tech. Development
Zone, Wuhan 430073 China
Departure angle  °  11
Max. grade ability  %  40
Fuel consumption for 100km  L  45
Main performance
Max. rated total lifting capacity  t  50
Min. rated working radius  m  3
Turning radius at turntable tail  m  3.482
Max. lifting torque  kN.m  1764
Base boom  m  11.3
Fully extended boom  m  42.7
Fully extended boom+ jib  m  57.7
Longitudinal outrigger span  m  5.91
Lateral outrigger span  m  6.9
Working speed
Boom luffing time  s  88
Boom full extension time  s  180
Max. swing speed  r/min  ≥2.0
Max. speed of main winch (single
rope) (no load)
m/min  ≥110
Max. speed of aux. winch (single
rope) (no load)
m/min  ≥110
