• Model NO.：QY20B
• Base Boom：11m
• Min. Rated Working Radius：3m
• Max. Grade Ability：30%
• Max. Lifting Torque：1010kn.M
• Brake Distance：10m
• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• HS Code：8705109100
• Production Capacity：100PCS,Month

Basic Info.

Model NO. QY20B Base Boom 11m Min. Rated Working Radius 3m Max. Grade Ability 30% Max. Lifting Torque 1010kn.M Brake Distance 10m Transport Package Nude Specification CE Trademark KUDAT Origin China HS Code 8705109100 Production Capacity 100PCS/Month

Product Description

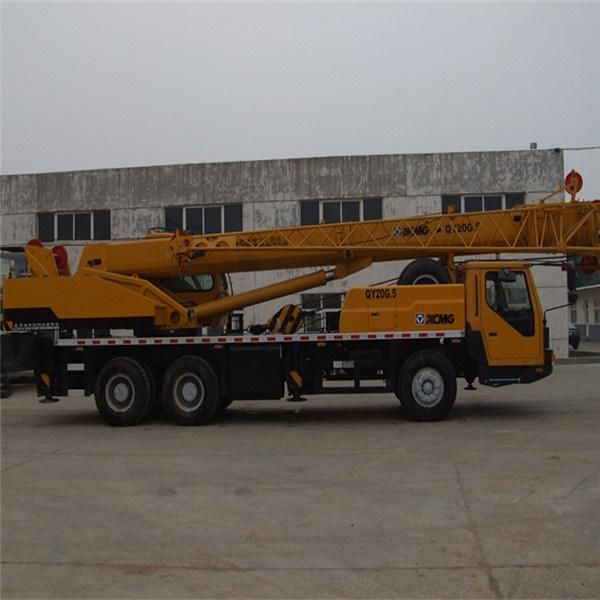

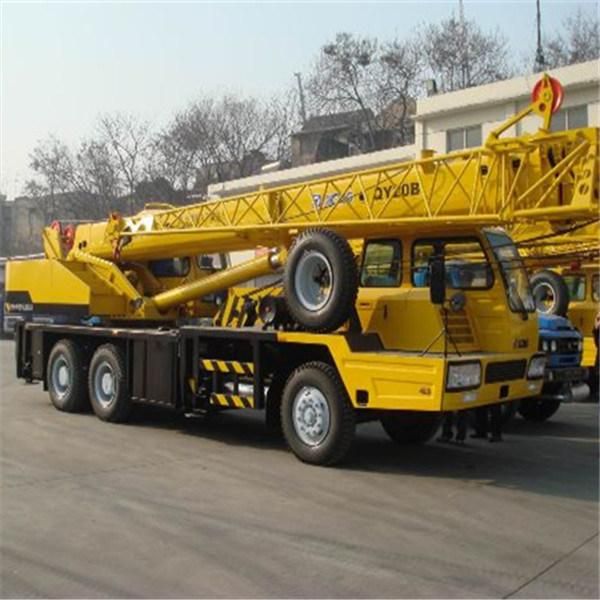

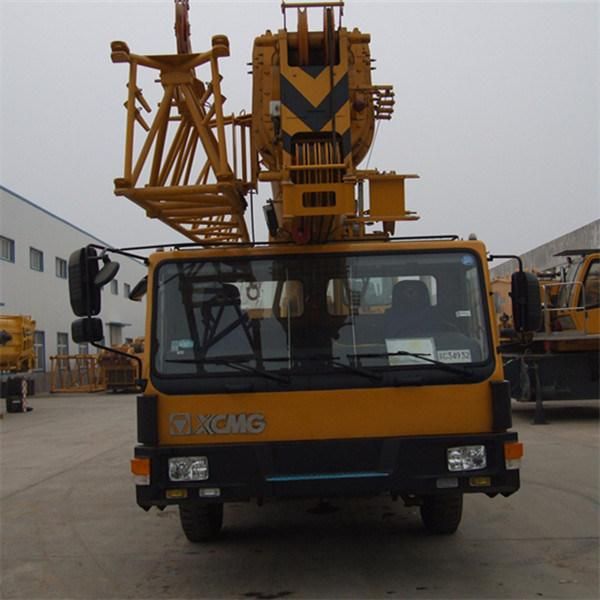

Main Specification for the QY20B.5II Truck Crane
Dimension  Unit  QY20B.5II
Overall length  mm  12990
Overall width  mm  2500
Overall height  mm  3430
Wheel base  mm  4425+1350
Weight
Total weight in travel  kg  29000
Front axle load  kg  7000
Rear axle load  kg  25400
Power
Engine model  SC8DK260Q3
Engine rated power  kW/(r/min)  192/2200
Engine rated torque  N.m/(r/min)  1000/1400
Travel
Max. travel speed  km/h  75
Min. travel speed  km/h  2.5-3
Wuhan Kudat Industry & Trade Co., Ltd.

Add: Room 401-3, E1 Building Optical Valley Software Park, East Lake High-Tech. Development
Zone, Wuhan, 430073 China.
Min. turning diameter  m  20
Min. ground clearance  mm  272
Approach angle  °  16
Departure angle  °  13
Max. grade ability  %  30
Brake distance  m  10
Fuel consumption for 100km  L  ≈40
Main performance
Max. rated total lifting capacity  t  25
Min. rated working radius  mm  3000
Turning radius at turntable tail  m  3.370
Max. lifting torque  kN.m  1010
Base boom  m  10.85
Fully extended boom  m  34.19
Fully extended boom+jib  m  42.3
Longitudinal outrigger span  m  5
Lateral outrigger span  m  6
