• Model NO.：HY700
• Type：Medium-sized Loader
• Machine Weight：2860kg
• Bucket Capacity：0.1cbm
• Power：44.7 Kw
• Transport Package：Container
• Specification：3400*1670*2810mm
• Trademark：SINOMADA
• Origin：China
• HS Code：84295100
• Production Capacity：50000pieces,Year

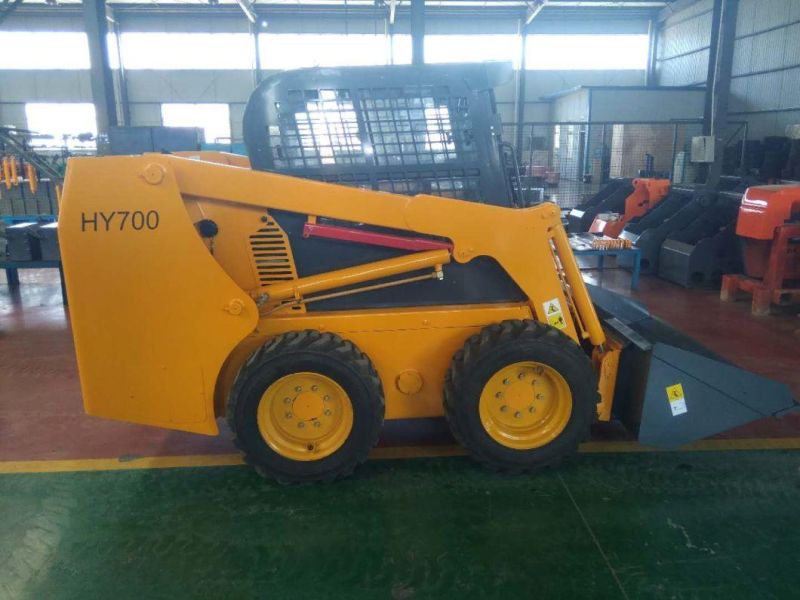

HY700 Chinese skid steer loader main performance parameters

Item

Data

Item

Data

1

Max working height(A)

3490mm

1

Loading capacity

700KG

2

Max pin height(B)

3028mm

2

Weight

2860kg

3

Max height on bucket level state(C)

2814mm

3

Engine

Diesel engine

4

Max dumping height (D)

2266mm

4

Rated speed

2500r/min

5

Max Dumping distance(F)

437mm

5

Type of engine

Four cylinder, water-cooling, four-stroke

6

Wheel base(G)

1044mm

6

Rated power

45KW

7

Total height(H)

1979mm

7

Fuel consumption rate on standard

lower than 240g/KW·h

8

Ground clearance(J)

196mm

8

Fuel consumption rate on max torque

lower than 238g/KW·h

9

Overall length without bucket(K)

2621mm

9

Noise

lower than 117dB(A)

10

Total length(L)

3400mm

10

Generator power

500W

11

Skip width(M)

1720mm

11

Voltage

12V

12

Total width(W)

1665mm

12

Storage battery

105AH

13

Tread width to center line (P)

1425mm

13

Speed

0-10 Km/h

14

Tire's thickness N)

240mm

14

Drive mode

Hydrostatic four-wheel drive

15

Departure angle(α)

19°

15

Tire

10-16.5

16

Bucket dump angle(β)

41°

16

Hydraulic pump flow for running

110L/min

17

Retracting angle(θ)

18°

17

Hydraulic pump flow for working

50L/min

18

Turn radius(R)

2056mm

18

System pressure

15MP

19

Fuel tank capacity

103L

20

Hydraulic oil tank capacity

63L

21

Motor

Big torque motor

22

Piston double pump

America brand
