• Model NO.：L36-C3
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Operating Weight (Kg)：10500
• Transport Package：Roro
• Specification：7240*2484*3235 mm
• Trademark：shantui
• Origin：China
• HS Code：8429510000
• Production Capacity：500,Month

Basic Info.

Model NO. L36-C3 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Operating Weight (Kg) 10500 Transport Package Roro Specification 7240*2484*3235 mm Trademark shantui Origin China HS Code 8429510000 Production Capacity 500/Month

Product Description

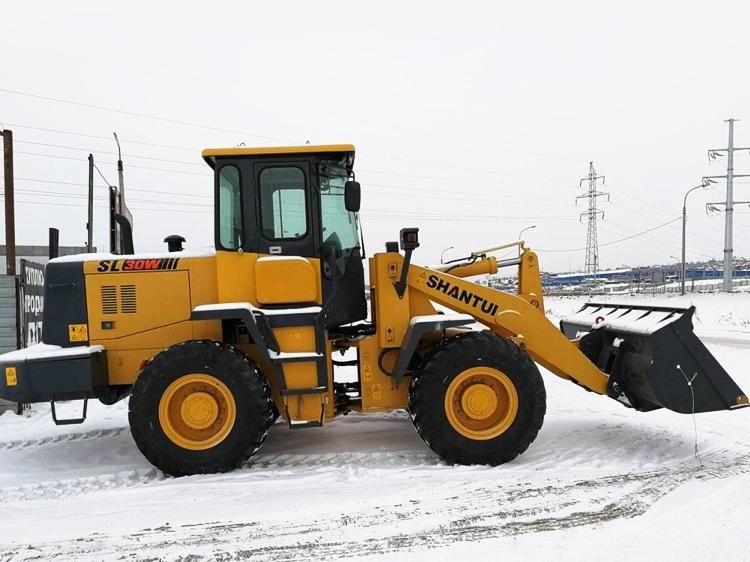

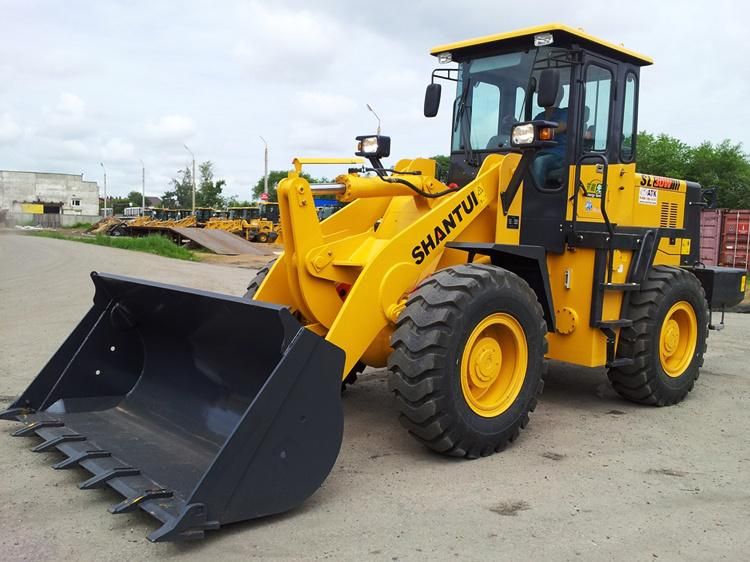

Chinese Top Brand SHANTUI small 3ton L36-C3 log clamp wood wheel loader



Product Description



Power System

  China-III low-speed engine features low malfunction rate, low noise, and low fuel consumption under composite working condition.

Good site adaptability

 The fixed shaft 428 transmission with 4 forward gears and 2 reverse gears achieves more extensive site adaptability.

Good heat dissipation performance

 The number of engine  blades is adjusted from 7 to 9 to increase the airflow output by 10~15% and achieve better heat dissipation performance. The radiator structure is adjusted to eliminate overheating during long-distance driving and further broaden the application scope.

Optimization of hydraulic system

 The series connection sequence of the multi-way valve core is adjusted in such manner that the boom lifting priority is changed to bucket tilting priority to better coincide with the actual working situation.

Parameter name	L36-C3 SG (Sandstone version)	L36-C3 CH (Coal version)	L36-C3 MH (Ore version)	L36-C3 MW (Mining version )
Performance parameters
Operating weight (Kg)	10500	10500	10500	10500
Maximum dumping height (mm)	3057 (Extended boom)3200 (Long Boom)	3055 (Long Boom)	3040 (Extended boom)	2875 (Standard boom)
Dumping reach (mm)	906 (Extended boom)886 (Long Boom)	1057 (Long Boom)	936 (Extended boom)	955 (Standard boom)
Maximum breakout force (kN)	≥105	≥100	≥105	≥96
Total cycle time (s)	9	9	9	9.5
Engine
Engine model	WP6	WP6	WP6	WP6
Rated power/rated speed (kW/rpm)	92/2000	92/2000	92/2000	92/2200
Overall dimensions
Overall dimensions of machine (mm)	7240*2484*3235	7460*2450*3235	7337*2470*3235	7113*2484*2775
Driving performance
Forward speed (km/h)	F1:0-7,F2:0-12,F3:0-23,F4:0-37	F1:0-7,F2:0-12,F3:0-23,F4:0-37	F1:0-7,F2:0-12,F3:0-23,F4:0-37	F1:0-5.8,F2:0-10.8,F3:0-18.4,F4:0-35
Reversing speed (km/h)	R1:0-8.3,R2:0-28	R1:0-8.3,R2:0-28	R1:0-8.3,R2:0-28	R1:0-7.8,R2:0-27
Chassis System
Wheelbase (mm)	2700	2700	2700	2700
Tank capacity
Fuel tank (L)	150	150	150	150
Working device
Rated bucket capacity (m³)	1.7	2.2	1.7	1.7
Rated loading capacity (t)	3	3	3	3
