• Model NO.：ZD220S-3
• Condition：New
• Color：Orange
• Blade Type：Tilt Blade
• Working Mass：26050kg
• Blade Capacity：6.8m3
• Engine Model：Nt855-C280
• Rated Power：175kw
• Height of Blade：1271mm
• Transport Package：Roro,Container
• Specification：7273mm*3725mm*3395mm
• Trademark：Zoomlion
• Origin：Hunan, China
• Production Capacity：1000 Pieces,Per Month

 ItemUnitZD220S-3ZD220SH-3Key    Technical ParameterBlade type-Tilt BladeSanitation BladeWorking masskg2605026300Blade capacitym36.812Engine model-NT855-C280(BC3)NT855-C280(BC3)Rated power/Slewing speedkW/rpm175175Max. torqueN.m/rpm1078/12501078/1250Min. fuel consumptiong/kW.h208208Max. Drawbar pullKn230230Ground pressurekPa4141Gradeability°°3030Traveling speed of forwardkm/h3.6/6.5/11.23.6/6.5/11.2Traveling speed of Reversekm/h4.3/7.7/13.24.3/7.7/13.2Basic    Technical ParameterHeight of cabmm34353435Height of ROPSmm34463446Ground contact lengthmm34803480Height of blademm12711971Track center distancemm22502250Height of grousermm123123Track shoe widthmm910910Operating    RangeMax. lift height of dozermm13001300Max. drop depthmm550550Max. lift height of rippermm----Max. ripping depth of rippermm----Max. tiltmm500500

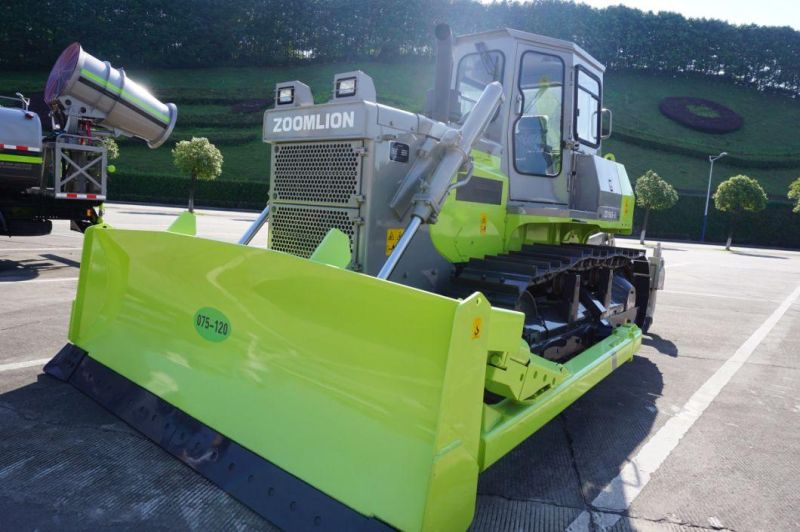

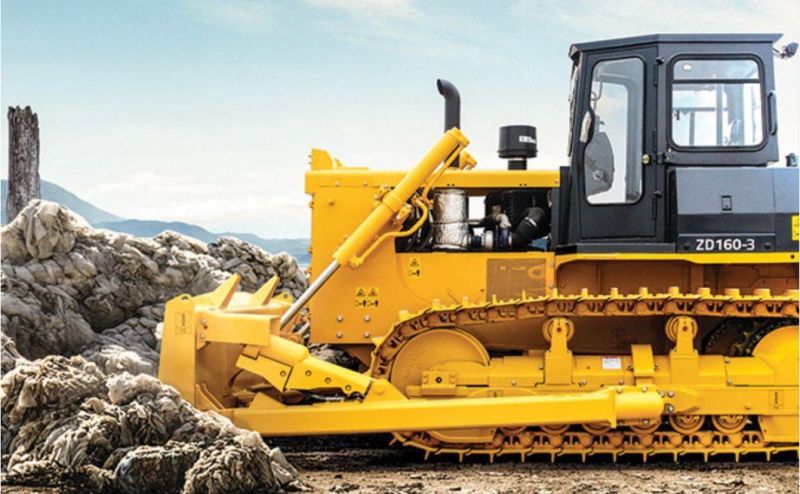

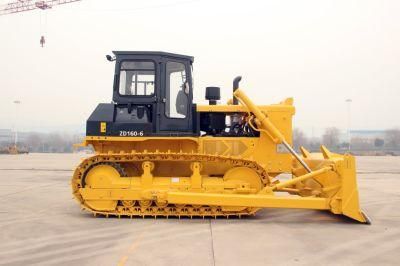

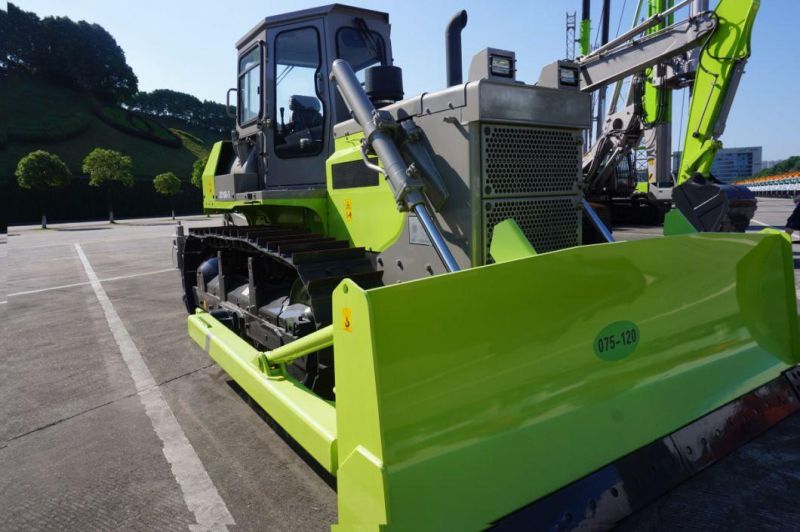

Construction Case Picture
