• Model NO.：43X-5RZ
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White
• Structure Type：43X-5rz
• Pumping Frequency：27,17min-1
• Hopper Capacity：550L
• Placing Depth：43m
• Boom Number：5
• Max. Horizontal Distance：39m
• Transport Package：Roro,Nude
• Specification：8220× 8800× 8900mm
• Trademark：Zoomlion
• Origin：Hunan, China
• Production Capacity：1000 Pieces,Per Month

ModelUnit43X-5RZPump UnitMax. Theor. output                       m³/h140/90Max. Theor. concrete output Pressure     MPa7/11Rated working pressure                      MPa35Pumping frequency                             min-127/17Hopper    capacity                    L550Filling height                                  mm1540Hydraulic system type opened loopDistribution valve S valveOil cylinder dia.×stroke                   mmφ130×2100Concrete cylinder    dia.×stroke            mmφ230×2100Hydraulic oil cooling Wind coolingRecommended concrete slump                   cm12~23Max. aggregate dimension                    mm40Boom    SectionStructure type 43X-5RZPlacing depth                               m43Max. horizontal distance                     m39Max. placing depth                          m30.46Slewing angle ±270°Boom number 5The length of boom section                       mm8350/7250/7050/7930/8420Sections folding angle 90°/180°/180°/240°/200°Pipe diameter                               mm125End hose lengthmm3000Min. height of opening placing boom       mm9100Outriggers span     (front×rear×side)  mm8220×8800×8900

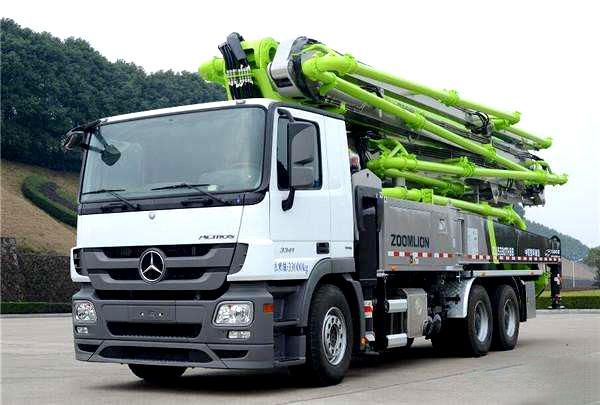

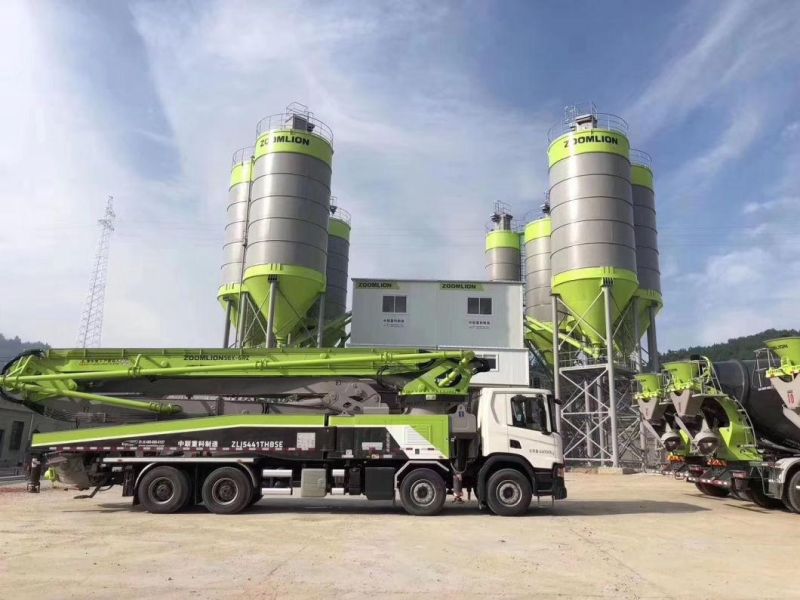

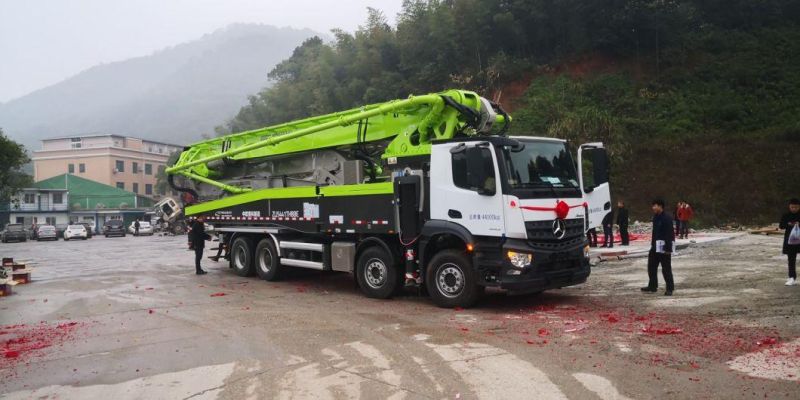

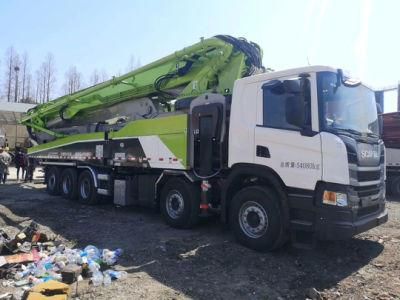

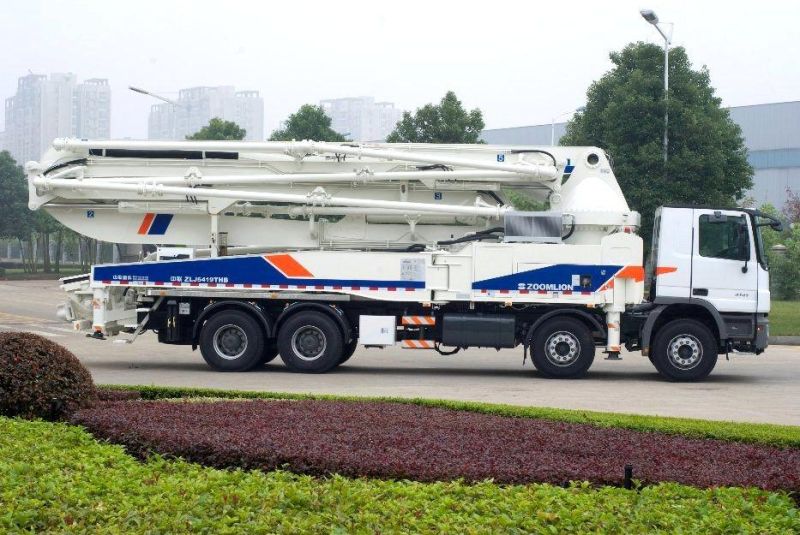

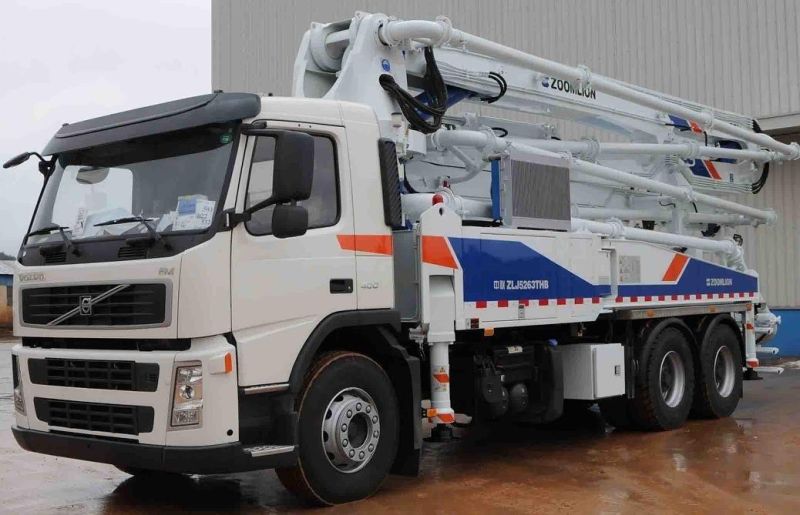

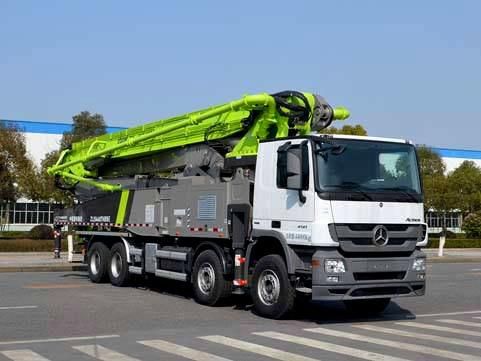

Construction Case Picture Truck Mounted Pumps 43X-5RZ

FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
