• Model NO.：Xe150W
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight：15318
• Rotating Speed：8.5r,Min
• Slewing Speed：13.7r,Min
• Max Speed：30km,H
• Bucket Positioning Accuracy：10cm
• Min.Ground Clearance：359mm
• Min.Turning Radius：6500mm
• Min.Tail Swing Radius：2300mm
• Wheelbase：2800mm
• Track Gauge：1920mm
• Transport Package：Nude
• Specification：6482*2552*3158mm
• Origin：China
• HS Code：84295212
• Production Capacity：1000 Set Per Month

Item
Unit
XE150W
Operation Weight
kg
15318
Bucket Capacity
m3
0.58
Engine
Model
--
QSB4.5
Rated Power
kW/ r/min
104/2000
Max Torque
N.m
586
Displacement
L
4.5
Fuel Tank
L
250
Hydraulic system
Main Pump/Pilot Pump
--
2
Performance
Rated Flow
L/min
2×160
Working Pressure
MPa
31.4/34.3
Hydraulic oil Tank
L
220
Slewing Speed
r/min
13.7
Bucket Digging Force
kN
90
Rod Digging Force
kN
65
Max Traction
kN
136
Travel Speed
km/h
30/11
Grade Ability
%
70
Dimension
Length
mm
6482
Width
mm
2552
Cabin Height
mm
3158
Chassis Width
mm
2495
Blade(w/h)
mm
2495×564
Max Scope
Max Digging Radius
mm
8296
Max Ground Reach
mm
8085
Max Digging Height
mm
9150
Max Dumping Height
mm
6684
Max Digging Depth
mm
5040
8 Inch plane digging depth
mm
4825
Blade Max Lifting Height
mm
515

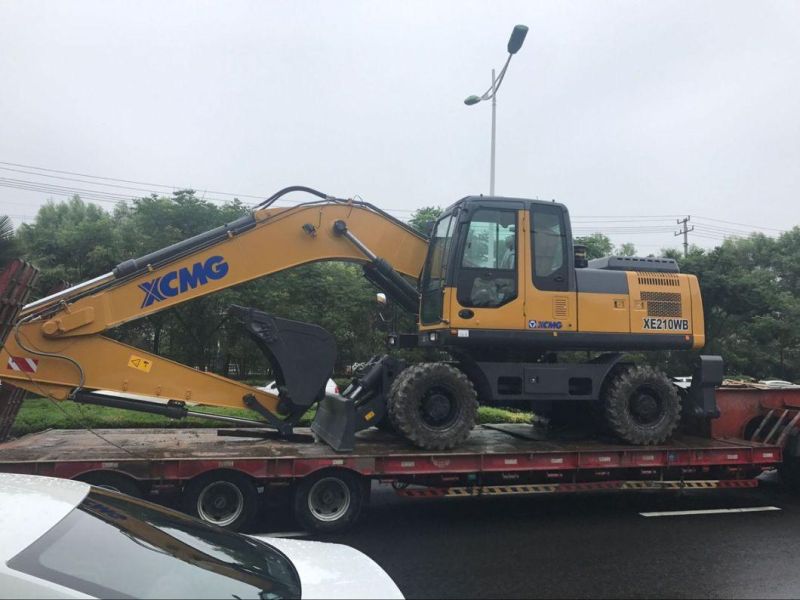

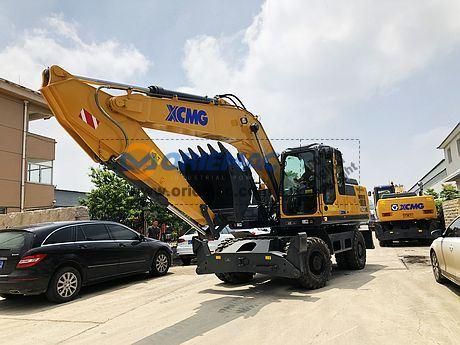

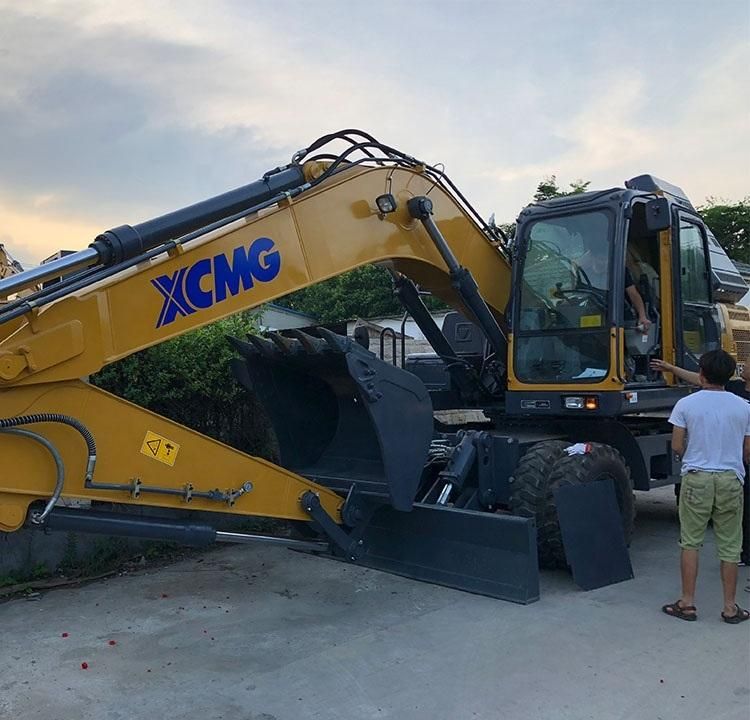

Product Show



Company Information

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

       Oriemac is a leading Chinese construction machinery exporter, located in Shanghai, and has introduced top Chinese machinery enterprises and their products to international markets.

      Oriemac brings you a wide range of construction machionery series as follows:

-- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and Truck-mounted Crane
-- Earthmoving Machinery, such as Wheel loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
-- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump and Concrete Mixer
-- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig and Roadheader
-- Logistics Machinery, such as Telescopic Handler and Forklift
-- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Form, and Fire Truck

Our company will offer you the high quality products with a low price, quick delivery, and professional after-sale services.
