• Model NO.：SD13S
• Condition：New
• Color：Yellow
• Transport Package：Nude Package
• Specification：4492*3185*2950
• Trademark：Shantui
• Origin：China
• HS Code：8429119000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. SD13S Condition New Color Yellow Transport Package Nude Package Specification 4492*3185*2950 Trademark Shantui Origin China HS Code 8429119000 Production Capacity 50000PCS/Year

Product Description

Power System

Strong power, high efficiency and energy-saving, and low maintenance cost.
The rated power reaches 105kW, featuring high torque reserve coefficient.
The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.

Parameter name	SD13 (Standard version)	SD13S (Wetland version)	SD13R (Environmental sanitation version)	SD13C (Coal version)
Performance parameters
Operating weight (Kg)	13700	14900	15200	13900
Ground pressure (kPa)	53.8	38.4	39.2	54.6
Engine
Engine model	SC8D143G2B1(China-II)/SC8DK(China-III)	SC8D143G2B1(China-II)/SC8DK(China-III)	SC8D143G2B1(China-II)/SC8DK(China-III)	SC8D143G2B1(China-II)/SC8DK(China-III)
Rated power/rated speed (kW/rpm)	105/1900	105/1900	105/1900	105/1900
Overall dimensions
Overall dimensions of machine (mm)	4492*3185*2950	4492*3510*3000	4492*3510*3000	4492*3700*2950
Driving performance
Forward speed (km/h)	F1:0-3.2 F2:0-5.9 F3:0-9.8	F1:0-3.2 F2:0-5.9 F3:0-9.8	F1:0-3.2 F2:0-5.9 F3:0-9.8	F1:0-3.2 F2:0-5.9 F3:0-9.8
Reversing speed (km/h)	R1:0-3.9 R2:0-7.1 R3:0-11.9	R1:0-3.9 R2:0-7.1 R3:0-11.9	R1:0-3.9 R2:0-7.1 R3:0-11.9	R1:0-3.9 R2:0-7.1 R3:0-11.9
Chassis System
Center distance of track (mm)	1880	1880	1880	1880
Width of track shoes (mm)	460	700	700	560
Ground length(mm)	2365	2365	2365	2365
Tank capacity
Fuel tank (L)	300	300	300	300
Working device
Blade type	Straight tilting blade	Straight tilting blade	Sanitation blade	Coal blade
Digging depth (mm)	590	590	590	590

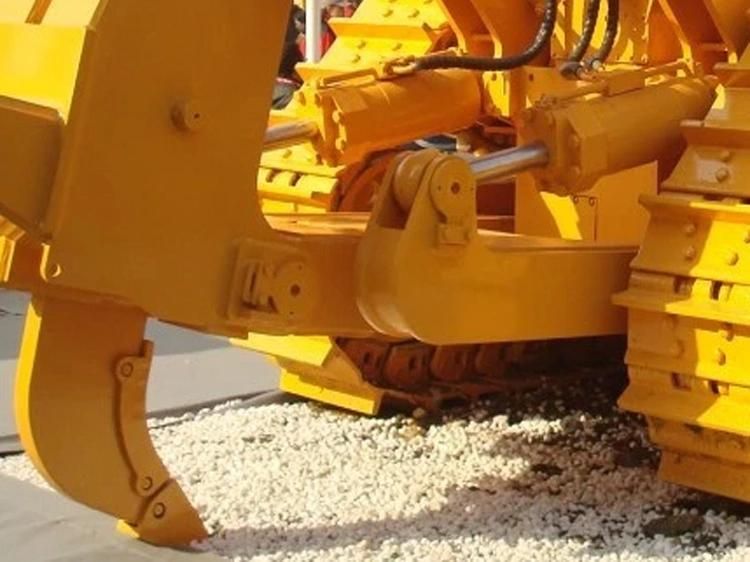

Ripper type	Three-shank	--	--	--
Ripping depth (mm)	567	--	--	--
