• Model NO.：8 ton
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Model：Yunnei,Yuchai
• Power：50,65kw
• Max Digging Radius：6147mm
• Max.Digging Depth：3623mm
• Max.Digging Height：6647mm
• Max.Dumping Height：4863mm
• Boom Length：3450mm
• Stick Length：1850mm
• Bucket Digging Force：44kn
• Gradeability：35degree
• Maximum Walking Speed：35km,H
• Radius of Tail Gyration：2138mm
• Tire Diameter：850mm
• Wheelbase：1670mm
• Fuel Tank Volume：130L
• Transport Package：40hq
• Specification：6000*2730*2020mm
• Trademark：HW
• Origin：China
• HS Code：8429521100
• Production Capacity：200 Units ,Month

Model

Unit

HWL80

Machine weight

kg

7200

Working device mode

/

Backhoe

Bucket capacity

m³

0.28

Engine model

/

Yunnei YN4L

Rated power

Kw/rpm

65/2200

Dimensions(LxWxG)

mm

6000*2020*2730

Max digging radius

mm

6147

Max.digging depth

mm

3623

Max.digging height

mm

6647

Max.dumping height

mm

4863

OUTSTANDING PERFORMANCE

Excavating, pipelaying and groundworks in tight city sites can be difficult, but not with HW80L wheeled excavator. It's an ultra-compact machine that offers a digging depth of 3623 mm (TPA boom), a reach of 6647 mm (TPA boom) and a dumping height of 4863 mm (TPA boom). These class-leading figures are ideal for urban jobsites, highway construction projects and landscaping.

SPEED AND MOBILITY

Moving from one job to another can be a costly and sometimes complex operation. With the HW80L, however, you get a top speed of 38 km/h, a variable drive system, low fuel consumption and a comfortable cab, so moving sites is effortless. It's also safe, thanks to our hydrostatic travel drive, which works as an additional braking system, and a joy to drive with its additional accelerator pedal for delicate machine movements.

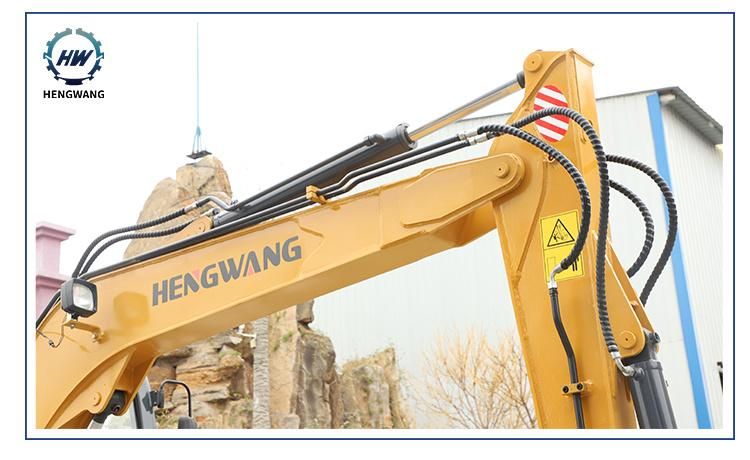

TWO BOOM OPTIONS FOR A REDUCED SWING RADIUS

The HW80L comes with a two-piece articulated boom as standard for great manoeuvrability and flexible articulation. You can extend the excavation radius with an optional longer dipperstick (1,950 mm). However, working on city sites, you'll need a tight swing radius to avoid hitting obstacles. That's why we can also fit the HW80L with a circular boom that reduces the front swing radius by 40%. With either option, you can thereby be more efficient and productive.

HW80L 8 ton wheel excavator with various kinds of accessories can be changed for different jobs ,like hydraulic breaker/hammer,grapple, auger drill ,auger drill , quick couplers,powertilt couplers and so on .

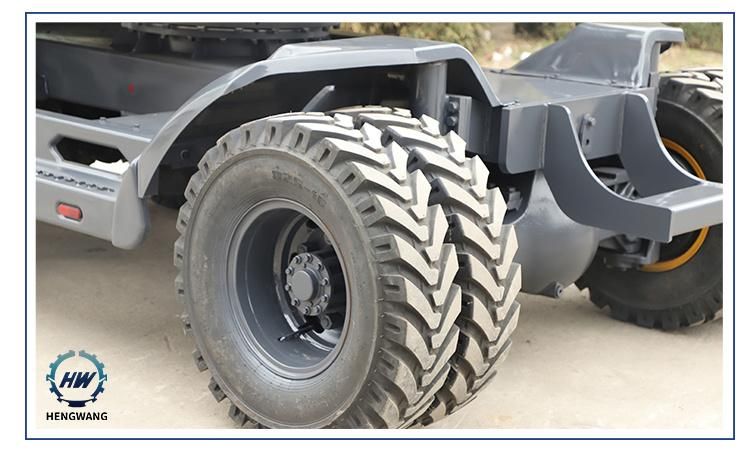

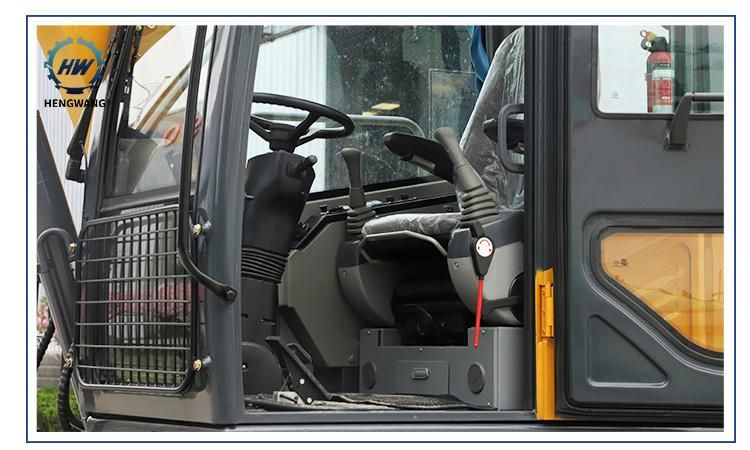

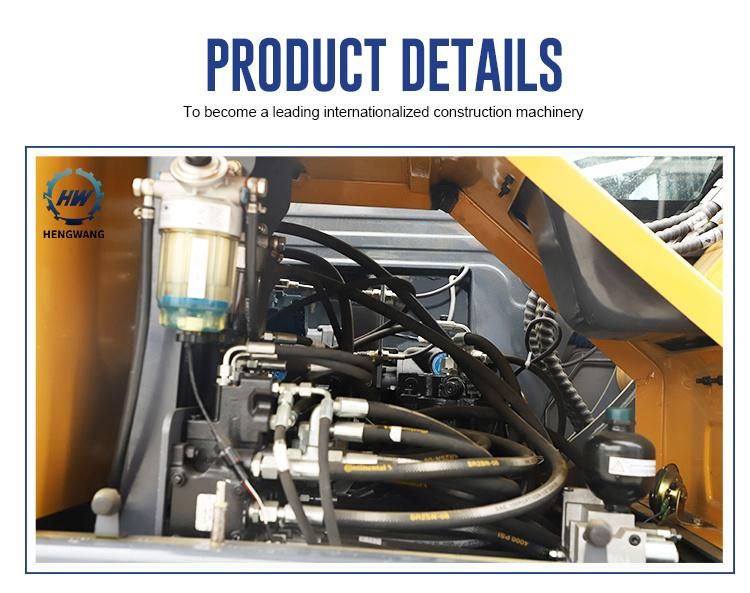

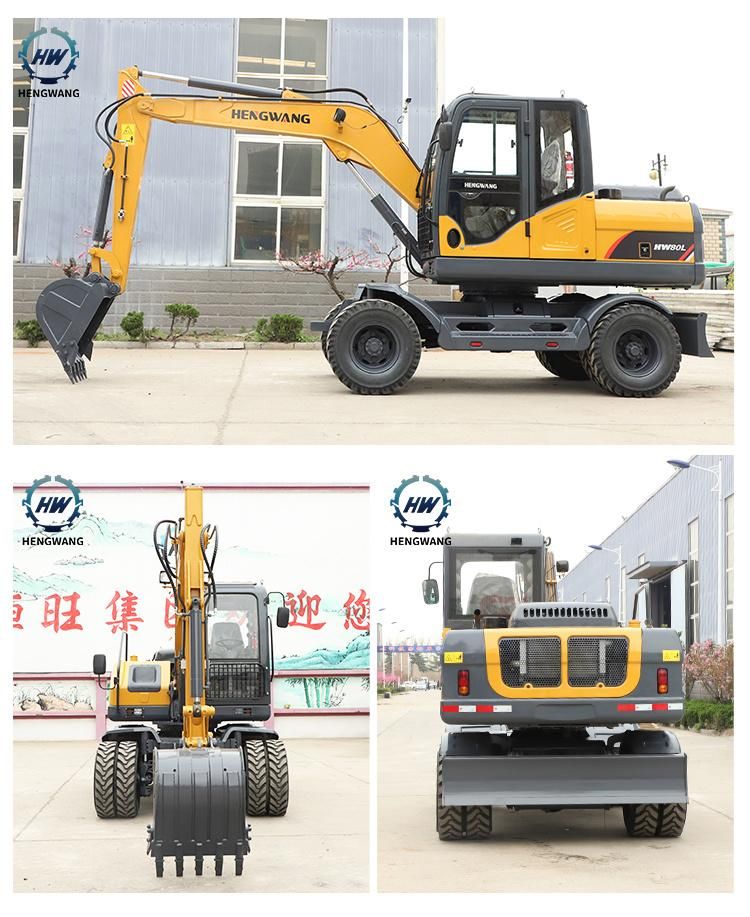

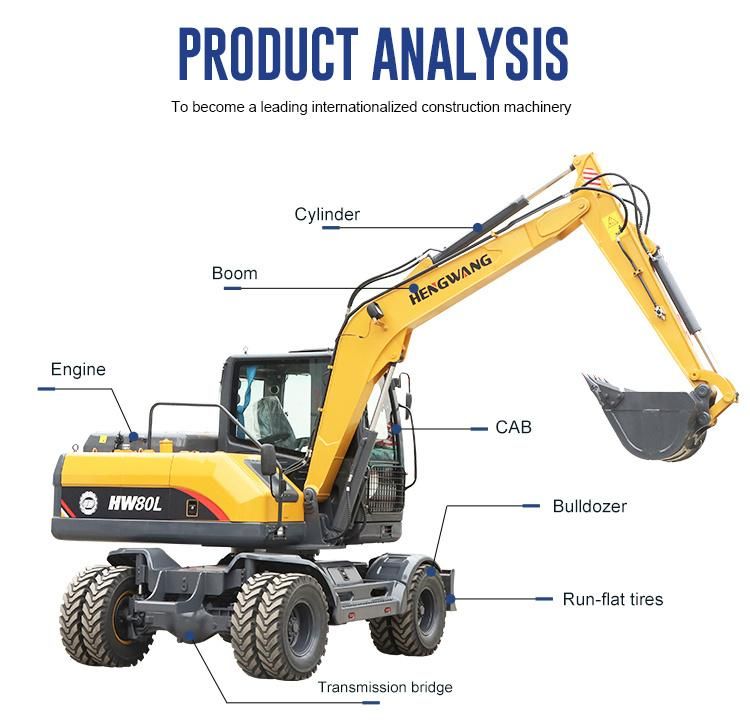

HW80L 8 ton wheeled excavator details as follows:

HW80L 8 ton wheeled excavator application:

With its distinctive features of mobility, flexibility, and efficiency, wheel digging has been widely used in the excavation and removal of materials such as municipal maintenance projects, highway transportation construction, and road repairs.
