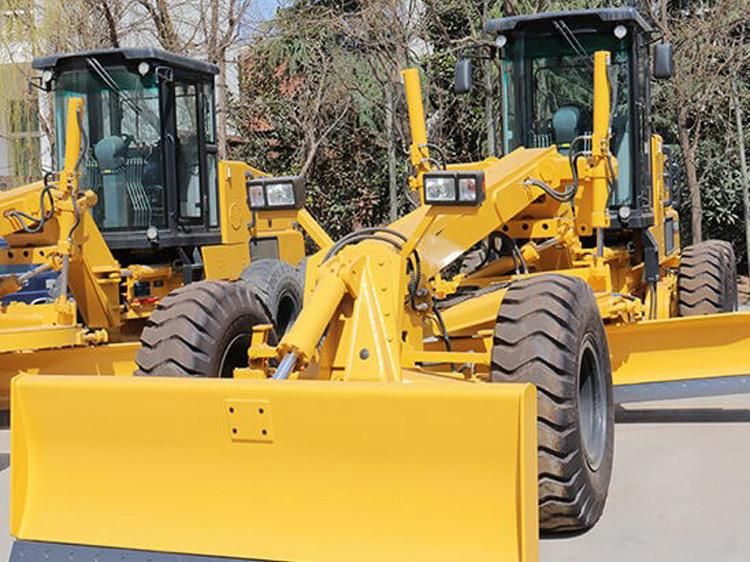

Py130 92kw Motor Grader with Attachment

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Online Support
  • Warranty：Online Support
  • Certification：CE
  • Condition：New
  • Application：Railway, Mine, Farmland
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：PY130
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader
  • Engine Power：160kw
  • Transport Package：6501*3151*2562mm
  • Specification：26000kg
  • Trademark：sinomada
  • Origin：China
  • Production Capacity：50000PCS,Year

Description

Overall sizeLength×width×height7900×2050×3200mmMinimum ground clearance of front axle450mmMinimum ground clearance of rear axle410mmWheelbase1590mmWheelbase (front/rear)6120mmBlade width3350mmRear axle wheelbase1410mmenginemodelYN48GBZformIn-line, water-cooled, direct injection, four-strokerated power92kwengine capacity4.8LBore/stroke108mm/132mmMinimum fuel consumption rate≤225g/(kw-h)Transmission systemMaximum speed (forward, backward)40km/h 30km/hGearbox typeFixed axis power shiftTorque converter typeSingle-stage single-phase three-elementGearFirst four and last fourMachine parametersTotal Weight7450kgMaximum swing angle of front axle±16°Maximum steering angle of front wheel±45°Blade specifications (length×width×thickness)3350×500×18mmCutter diameter1250mmFrame articulated steering angle±23°Swivel angle of blade360°Blade ground clearance450mmBlade cutting depth260mmBlade tilt angle47° forward / 5° backwardBlade sliding rangeLeft 550mm/Right 550mmHydraulic systemTypeOpen systemSystem pressure16MPaRefueling capacityOlefin oil105LHydraulic oil75L
