• Model NO.：M630-60
• Type：Medium-sized Loader
• Engine：Chinese,Yanmar,Kohler
• Rated Power：75~100HP
• Bucket Capacity：1.5cbm
• Categoery：Multifunction Farming & Construction Machine
• Driving Type：Hydrostatic 4X4
• Steering：All Wheel Steering (4 Wheel,Front,Crab Steering)
• Weight：5700kg
• Max. Lifting Height：6000mm
• Speed：12,24km,H Two Speed
• Dimension：3970X2090X2150mm
• Min. Turning Radius：3220mm
• Usage：Multipurpose, Agricultural, Bee Keeping, Farming
• Similar Loader Brands：Manitou, Jcb, Deici,
• Attachments：Qucik Hitch
• Color：Yellow or Customized
• Transport Package：Container
• Specification：1.5 ton wheel loader
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：600 Sets, Year

Basic Info.

Model NO. M630-60 Type Medium-sized Loader Engine Chinese/Yanmar/Kohler Rated Power 75~100HP Bucket Capacity 1.5cbm Categoery Multifunction Farming & Construction Machine Driving Type Hydrostatic 4X4 Steering All Wheel Steering (4 Wheel/Front/Crab Steering) Weight 5700kg Max. Lifting Height 6000mm Speed 12/24km/H Two Speed Dimension 3970X2090X2150mm Min. Turning Radius 3220mm Usage Multipurpose, Agricultural, Bee Keeping, Farming Similar Loader Brands Manitou, Jcb, Deici, Attachments Qucik Hitch Color Yellow or Customized Transport Package Container Specification 1.5 ton wheel loader Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 600 Sets/ Year

Product Description

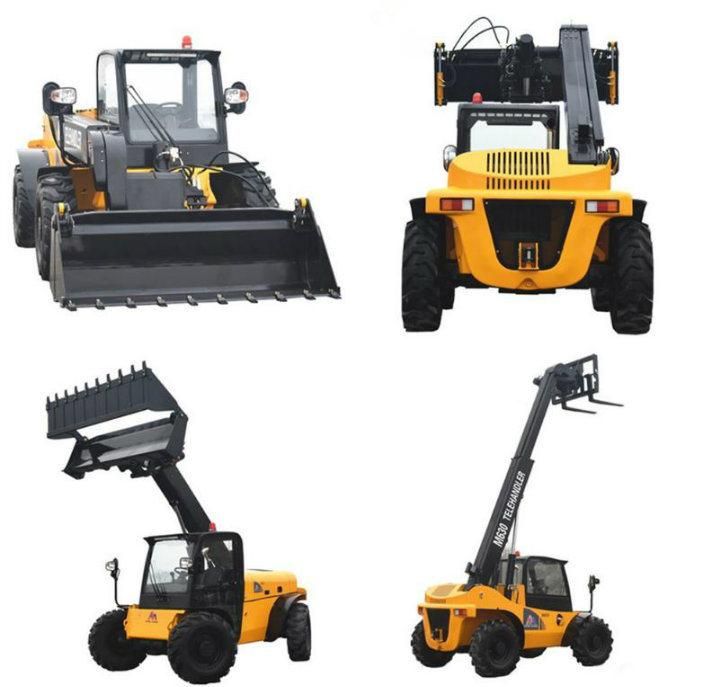

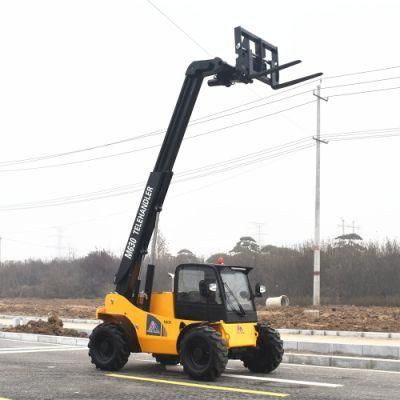

Agriculture all wheel steering side boom telescopic handler loader with forklift

Good features of STEEL CAMEL brand telescopic forklift handler:

1.Hydrostatic transmission, 4 wheel drive and 4 wheel steering, have fantastic manuverability in the rough farming and construction terrain. 2.Compact size, only 2090mm wide, 2150mm high, enable it to come through the hourse door. 3.Hydraulic quick coupling system can hook various attachments for different work 4.3ton capacity, 6 m reach, most needed size for material handling work 5.ROPS cabin, electrical loading indicator guarantee the operating safety. 6.One hand joystick control, simple and convenient 7.Heavy duty engine and drive axle, powerful and strong 8.Wide view luxuary cabin, best operating comfort. 9.Engine speed regulation, never power off.




Main specification:


Engine	Yanmar/Chinese/Kohler EPA Tier 4
Rated power	55~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	6000mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

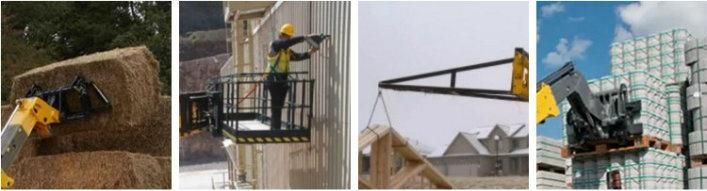

Applications:

The Telescopic handler forklift is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-mechanical transmission, hydraulic power steering, hydraulic brake, rear-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.
