• Model NO.：M910
• Type：Small Loader
• Name：Mini Wheel Loader
• Engine：Diesel Perkins,Yanmar,Chinese
• Rated Power：33HP
• Rated Loading Capacity：1000kg
• Weight：1850kg
• Max. Lifting Height：3000mm
• Max. Hydraulic Output：67L,Min
• Attachments Available：Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
• Similar Brand：Avant, Multione, Weidemann, Giant
• Loader Usage：Farming, Construction, Gardening, Landscaping
• Delivery Time：10~30 Days
• Warranty：1 Year Free Parts
• Color：Yellow or Customized
• Transport Package：Container
• Specification：1200kg load capacity, 3000mm lifting height
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：800 Sets,Year

Basic Info.

Model NO. M910 Type Small Loader Name Mini Wheel Loader Engine Diesel Perkins/Yanmar/Chinese Rated Power 33HP Rated Loading Capacity 1000kg Weight 1850kg Max. Lifting Height 3000mm Max. Hydraulic Output 67L/Min Attachments Available Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe... Similar Brand Avant, Multione, Weidemann, Giant Loader Usage Farming, Construction, Gardening, Landscaping Delivery Time 10~30 Days Warranty 1 Year Free Parts Color Yellow or Customized Transport Package Container Specification 1200kg load capacity, 3000mm lifting height Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 800 Sets/Year

Product Description

Hot sale mini avant loader M910 telescopic boom loader with CE
 EASY OPPERATION:

1) humanzied design for operating
2) Multifunction joystick, one hand operating
3) Forward/Reverse two foot pedal control the loader's driving;
4) Hydraulic quick coupling for attachments

QUALITY AND RELIABLITY:

1) Famous brand engine and main hydraulic components
2)Strict QC system in the whole production procedure;
3) Rough performance test after assemble, thorough inspection on every details before delivery

MULTIFUNCTION FOR VARIOUS USAGE:

1) Telecopic boom with floating function
2) Front hydraulic output,  quick coupling system, hundreds of attachments can be a loader, forklift, mower, log grapple, etc.
3) Rear hydraulic output and 3 point linkage, can be used as a tractor.

TECHNICAL DATA:


Model	STEEL CAMEL M910 mini telescopic loader
Dimension (LxWxH)	2690 X1240 X 2285mm
Max. lifting height (boom extended)	3030mm
Max. lifting height (boom retracted)	2512mm
Max. dumping height	2630mm
Bucket capacity	0.5cbm
Max. loading capacity	1200kg
Min. turning radius	2120mm
Turning angle	45 degree
Min. ground clearance	268mm
Speed	0-12 km/h single speed  0~8~16km/h two speed optional
Weight	1700 kg
Standard tire	26X12-12
Tire pressure	2.8 bar
Oil tank capacity	45L
Pressure	190bar
Working oil flow	33.5L/minx2
Tracking oil flow	78L/min
Oil model(mineral oil)	L-HL46
Fuel tank capacity	30L
Battery	60Ah, 12V
Engine	Perkins 404D-15
Rated power	24.5kw/33hp

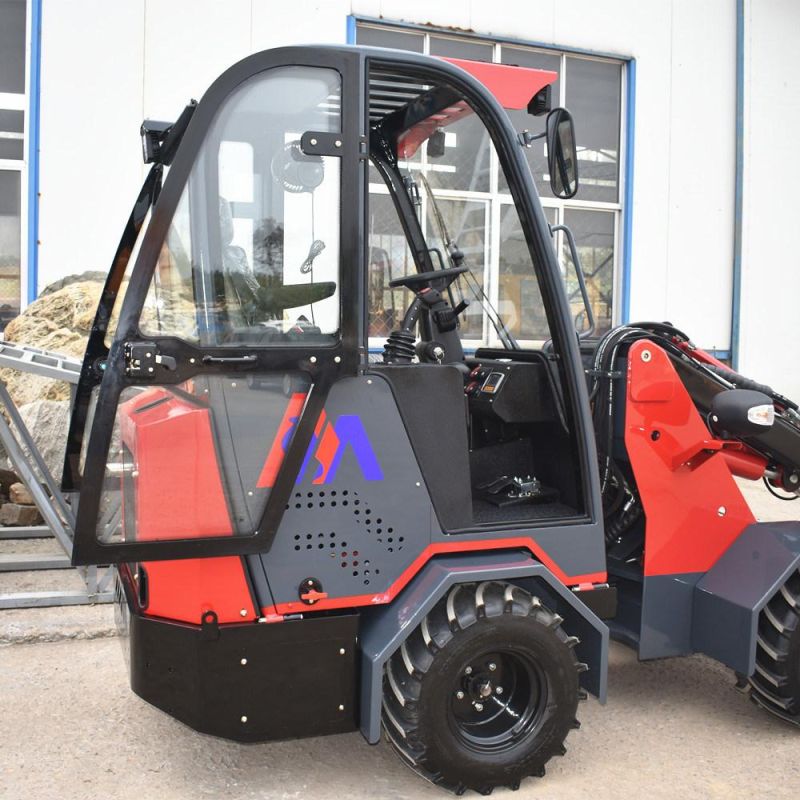

DETAILED IMAGES:

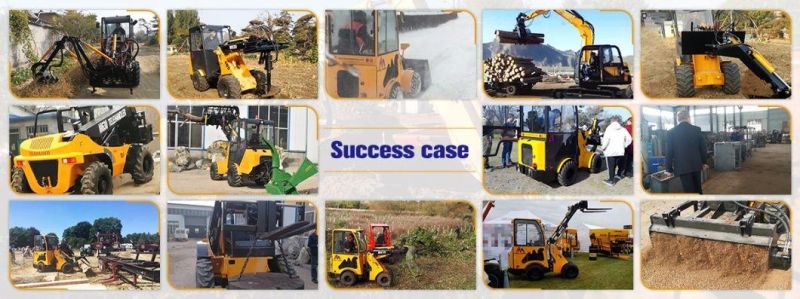

APPLICATION:

Loader+Tractor, one Multi-purpose helper for globle customers

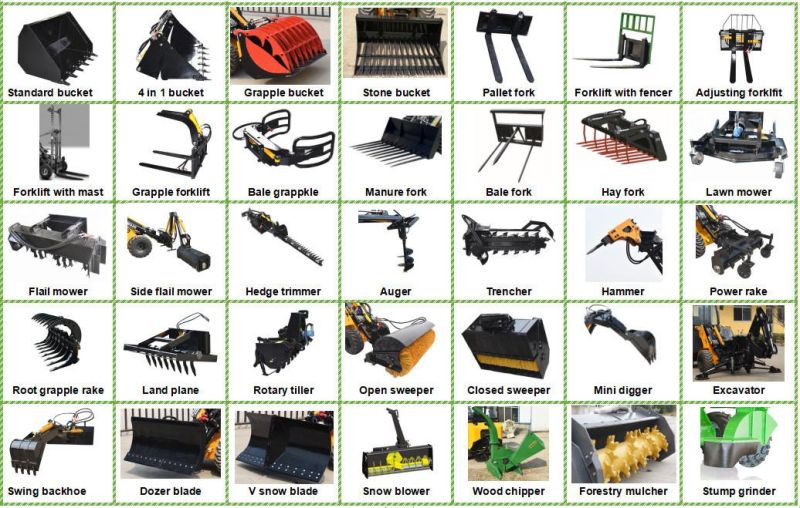

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

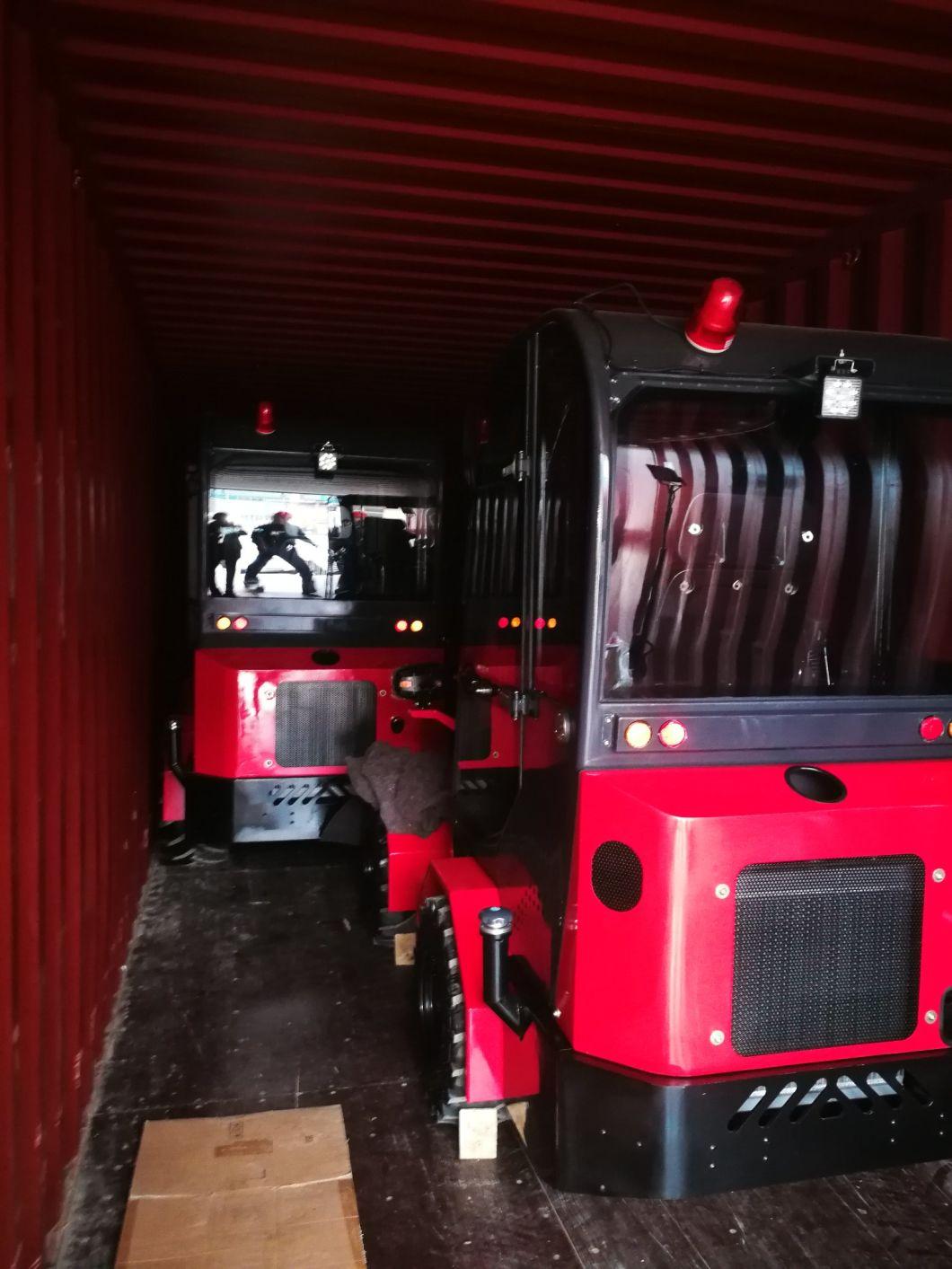

LOADING CONDITION:

STEEL CAMEL concern every needs of customer, we designed the loader to the biggest compact to save transporting cost.

Loading condition of M910 mini tractor loader as below:

3 sets/20' GP, 6 sets/40'GP



COMMON QUESTIONS:



CONTACT US:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director

Shandong Honest Machinery Co., Ltd
