• Model NO.：Compactor
• Travel Speed：0-20
• Centrifugal Force：18KN
• Certification：EPA, CS, CE, ISO 9001:2000
• Condition：New
• Use：Road Roller
• Product Name：Road Compactor
• Delivery Time：Shipped in 30 Days After Payment
• Color：Customers′ Optional
• Fuel Tank Capacity：130L
• Max. Working Weight：13000kg
• Min. Working Weight：10000kg
• Transport Package：Nude Packing, Container
• Specification：4770*2250*3285mm
• Origin：China
• HS Code：8429209000
• Production Capacity：500 Unit,Month

Basic Info.

Model NO. Compactor Travel Speed 0-20 Centrifugal Force 18KN Certification EPA, CS, CE, ISO 9001:2000 Condition New Use Road Roller Product Name Road Compactor Delivery Time Shipped in 30 Days After Payment Color Customers′ Optional Fuel Tank Capacity 130L Max. Working Weight 13000kg Min. Working Weight 10000kg Transport Package Nude Packing/ Container Specification 4770*2250*3285mm Origin China HS Code 8429209000 Production Capacity 500 Unit/Month

Product Description

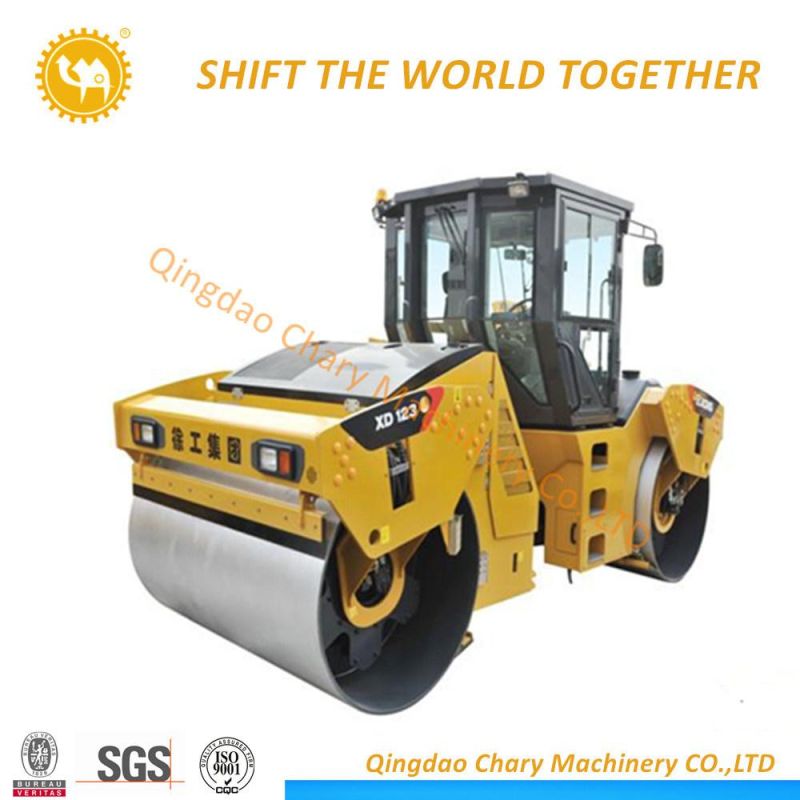

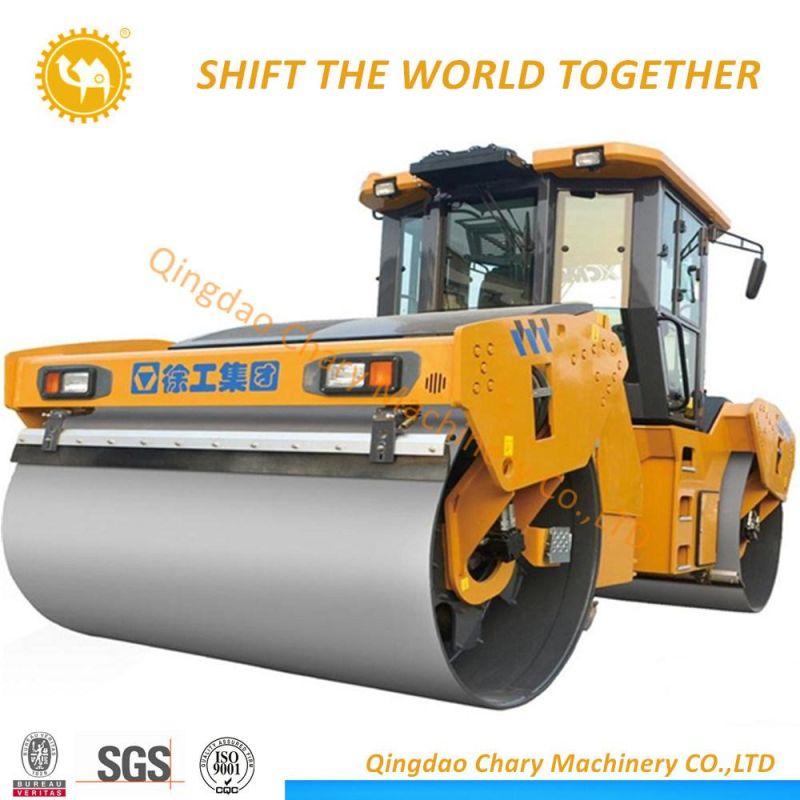

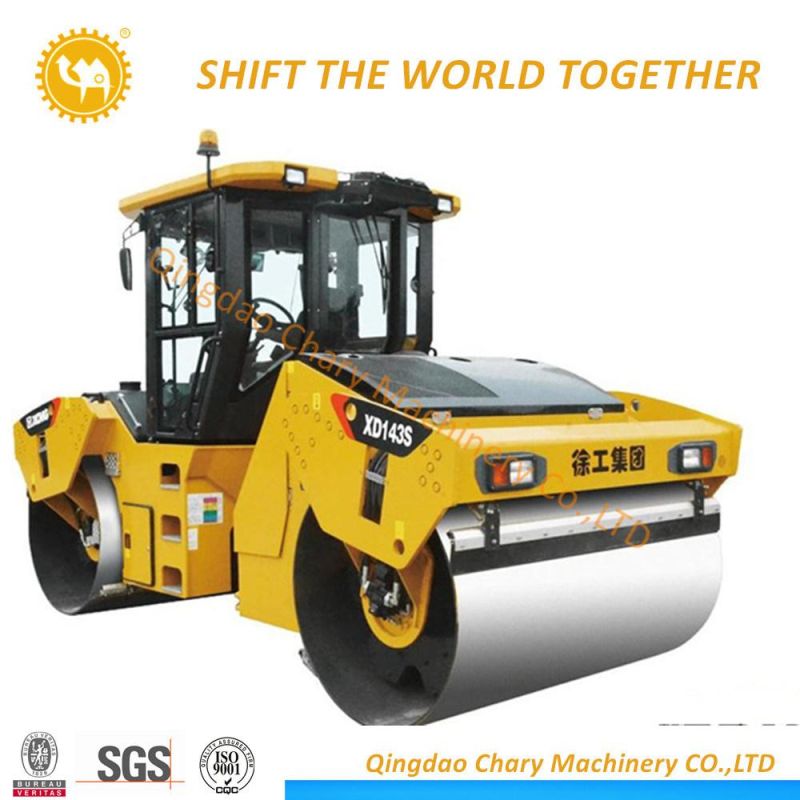

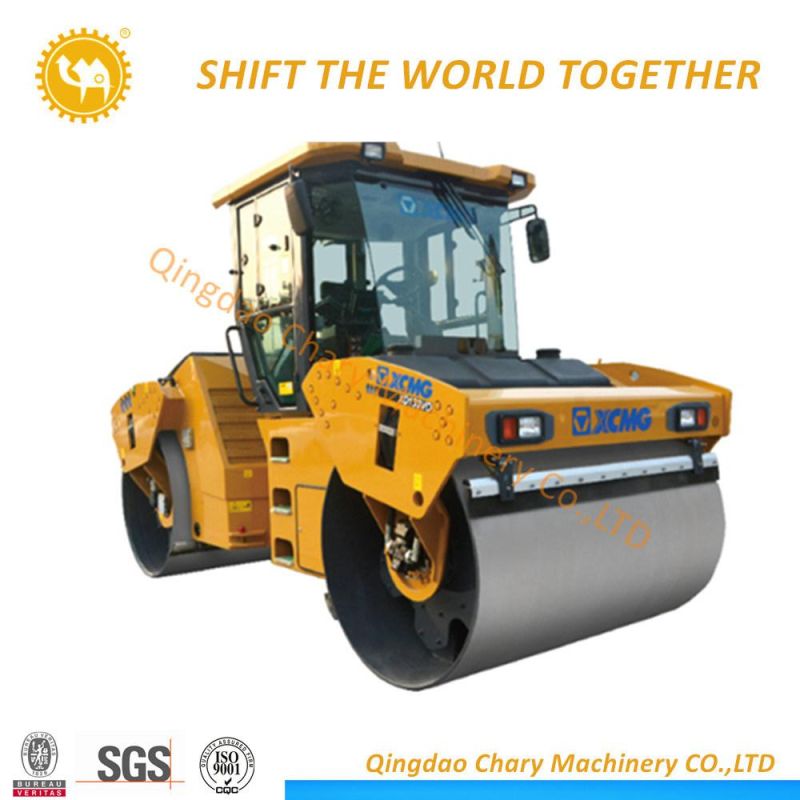

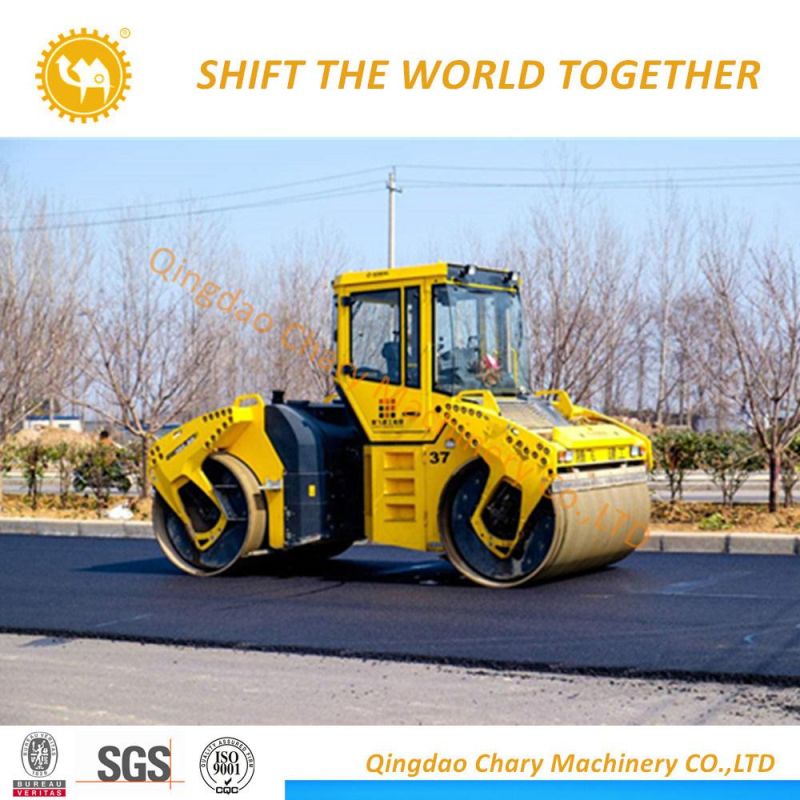

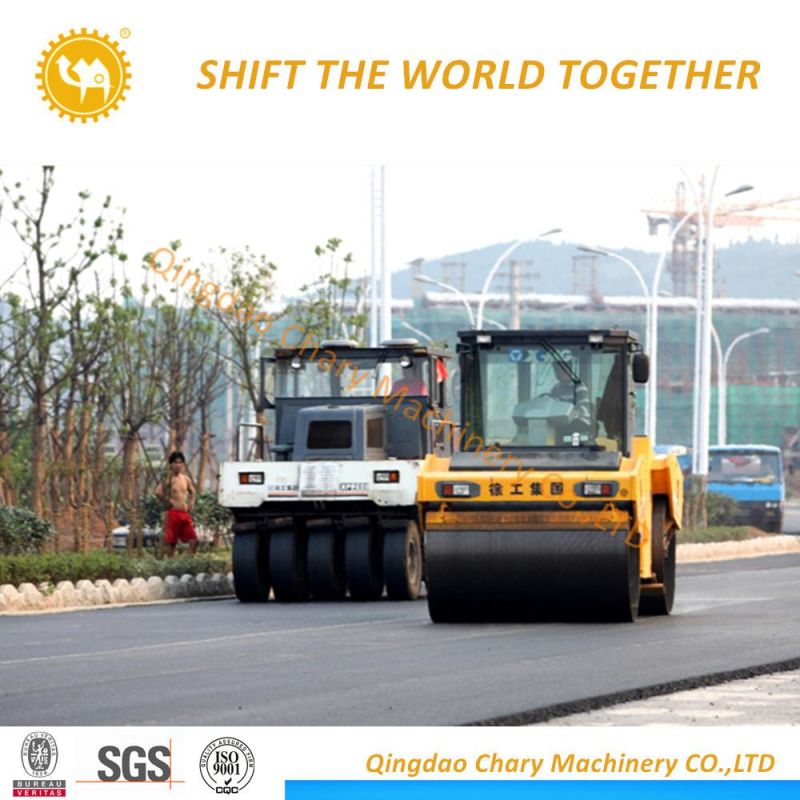

 3 Ton Double Drum Road Roller
 Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

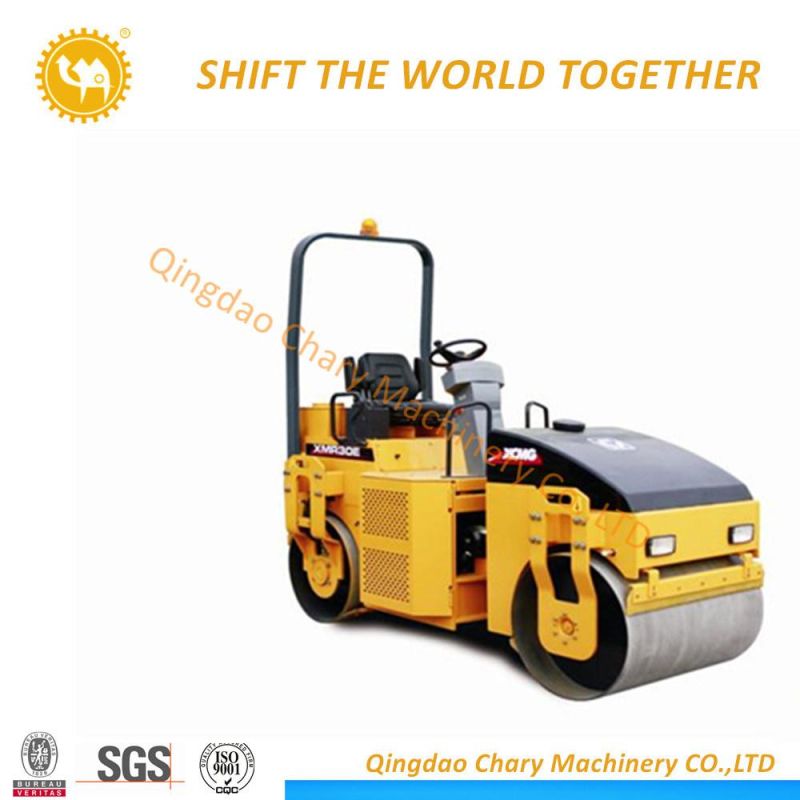

 3 Ton Double Drum Road Roller


Model	Unit	XMR30S
operating weight	kg	3000
static linear load(front/rear)	N/cm	116/110
speed	km/h	0-10
gradeability in theory	%	30
min. turning radius (L/R)	mm	2800/4000
min. ground clearance	mm	320
wheel base	mm	1800
steering angle	±°	30
swing angle	±°	10
vibration frequency	Hz	60
vibrating system-max. pressure	Mpa	18
steering system-max. pressure	Mpa	16
nominal amplitude	mm	0.4
centrifugal force	kN	34
compacting width	mm	1200
drum diameter	mm	750
engine model		Detuz F2L2011
rated engine speed	r/min	2600
rated engine power	kw	22
overall dimensions(length/width/height)	mm	2733/1306/2900
rated oil wear	g/kW.h	220
hydraulic tank capacity	L	55
fuel tank capacity	L	80
water tank capacity	L	150

3 Ton Double Drum Road Roller

Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.

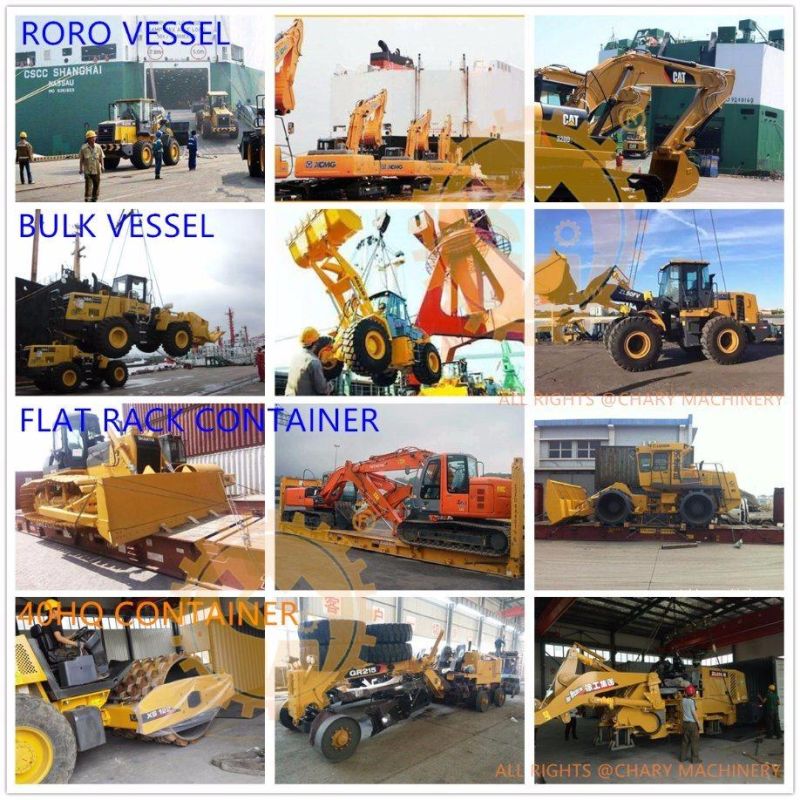

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU

 WHY CHOOSE US?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

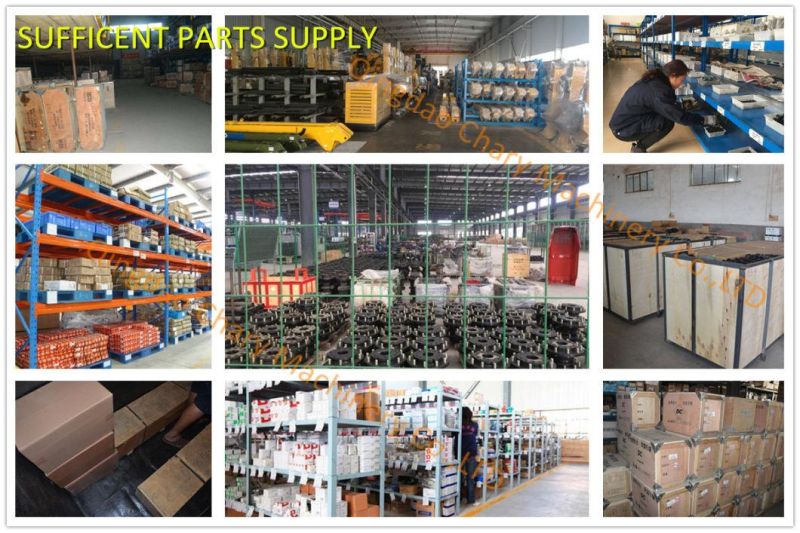

(6) Spare Parts Supply:
