• Model NO.：Compactor
• Travel Speed：0-20
• Centrifugal Force：18KN
• Certification：EPA, CS, CE, ISO 9001:2000
• Condition：New
• Use：Road Roller
• Product Name：Road Compactor
• Delivery Time：Shipped in 30 Days After Payment
• Color：Customers′ Optional
• Fuel Tank Capacity：130L
• Max. Working Weight：27000kg
• Min. Working Weight：20000kg
• Tyre Specification：9.00-20-12pr
• Amount：Front 4 Rear 5
• Engine Oil Consumption：<230g.Kw,H
• Hydraulic Oil Tank Capacity：60Tl
• Diesel Oil Tank Capacity：130Tl
• Overall Length：4715mm
• Overall Width：2055mm
• Overall Height：3258mm
• Transport Package：Nude Packing, Container
• Specification：4770*2250*3285mm
• Origin：China
• HS Code：8429209000
• Production Capacity：500 Unit,Month

Basic Info.

Model NO. Compactor Travel Speed 0-20 Centrifugal Force 18KN Certification EPA, CS, CE, ISO 9001:2000 Condition New Use Road Roller Product Name Road Compactor Delivery Time Shipped in 30 Days After Payment Color Customers′ Optional Fuel Tank Capacity 130L Max. Working Weight 27000kg Min. Working Weight 20000kg Tyre Specification 9.00-20-12pr Amount Front 4 Rear 5 Engine Oil Consumption <230g.Kw/H Hydraulic Oil Tank Capacity 60Tl Diesel Oil Tank Capacity 130Tl Overall Length 4715mm Overall Width 2055mm Overall Height 3258mm Transport Package Nude Packing/ Container Specification 4770*2250*3285mm Origin China HS Code 8429209000 Production Capacity 500 Unit/Month

Product Description

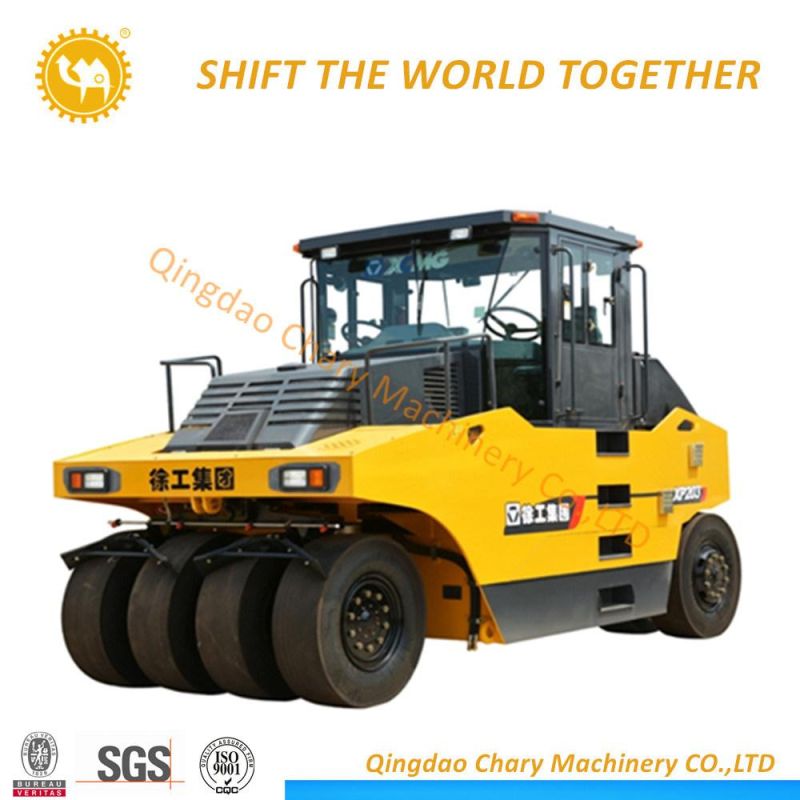

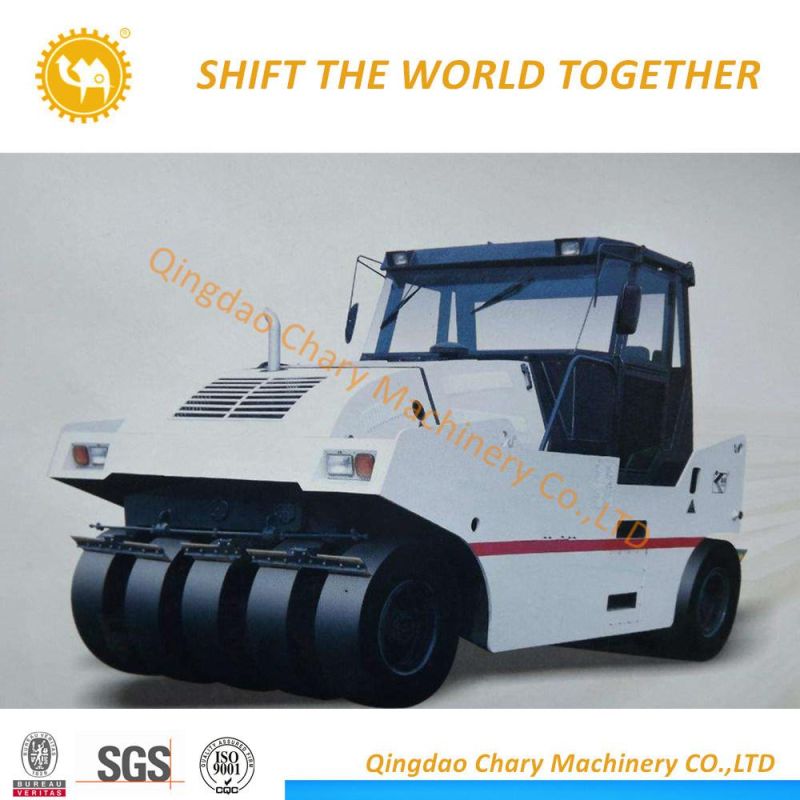

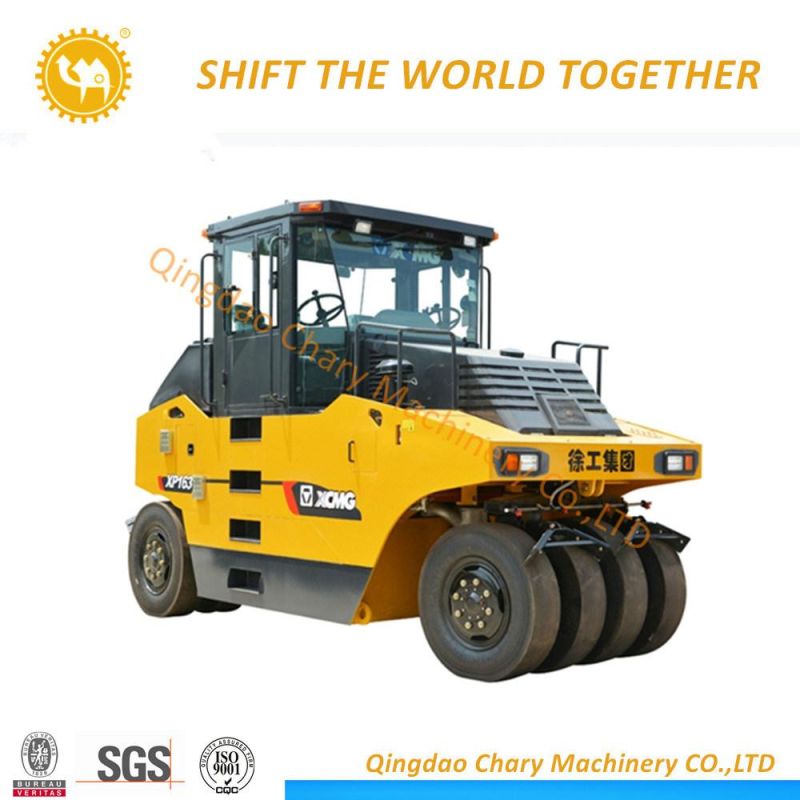

Tyre Roller 27 Ton Pneumatic Vibratory Road Roller Compactor

Qingdao Chary Machinery CO., LTD
Call : +86 150 5328 9929
 Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.


Qingdao Chary Machinery CO., LTD
Call : +86 150 5328 9929


Tyre Roller 27 Ton Pneumatic Vibratory Road Roller Compactor

Min. working weight	kg	15000
Max. working weight	kg	27000
Ground pressure	kPa	200-400
Travel speed	km/h
	Speed I	4.2
	Speed II	8.2
	Speed III	17.4
	Reverse speed I	4.17
	Reverse speed II	8.2
Theoretical gradeability	%	20
Min. external turning radius	mm	7230
Min. ground clearance	mm	250
Compaction width	mm	2055
Roller overlap amount	mm	30
Tyre specification		9.00-20-12PR
Amount		Front 4 Rear 5

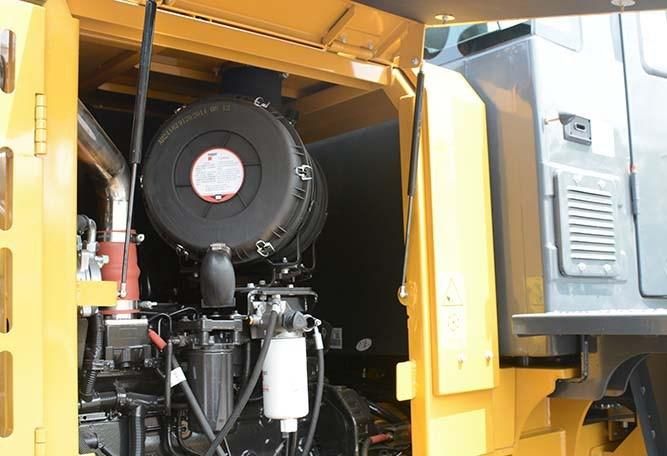

Engine model		YC4A125Z
Type		Water cooling, pressurizing
Rated power	kw @2200 r/min	92
Engine oil consumption	g.kw/h	<230
Hydraulic oil tank capacity	L	60
Diesel oil tank capacity	L	130
Overall length	mm	4715
Overall width	mm	2055
Overall height	mm	3258

Qingdao Chary Machinery CO., LTD
Call : +86 150 5328 9929


Tyre Roller 27 Ton Pneumatic Vibratory Road Roller Compactor

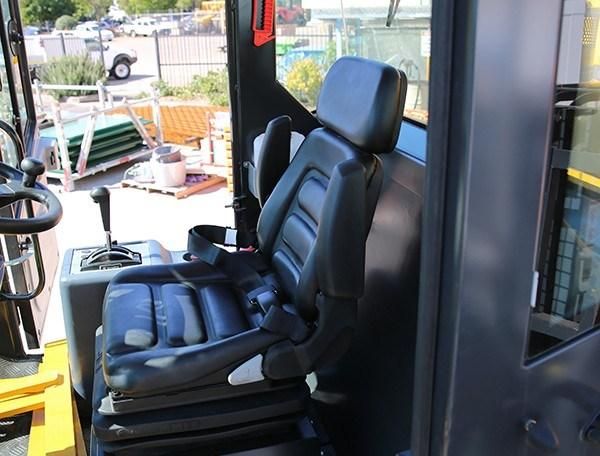

Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.

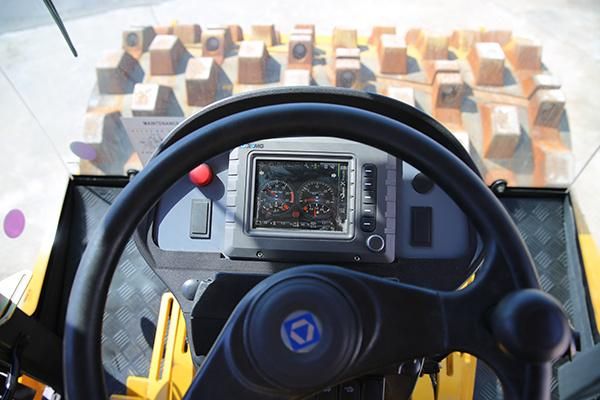

Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.


Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.

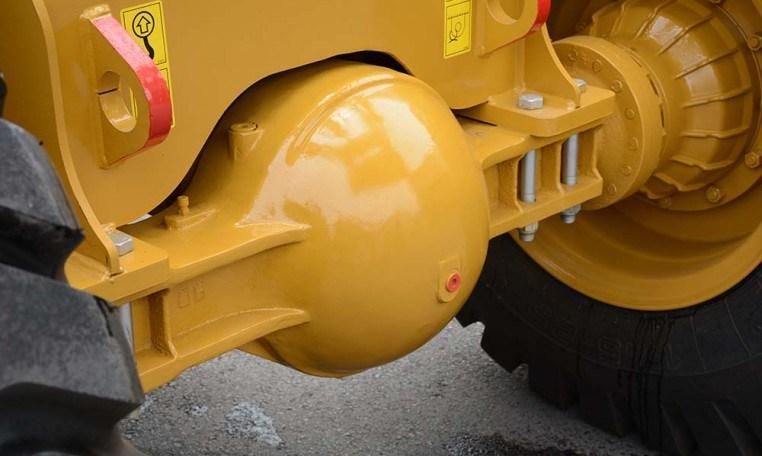

Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.

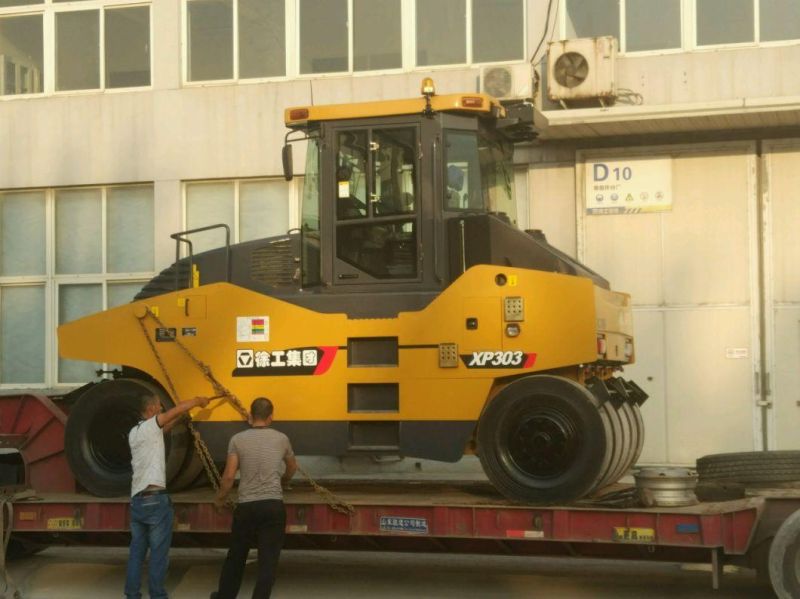

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU

Qingdao Chary Machinery CO., LTD
Call : +86 150 5328 9929Qingdao Chary Machinery CO., LTD
Call : +86 150 5328 9929WHY CHOOSE US?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.


Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.

Qingdao Chary Machinery CO., LTD
Call : +86 150 5328 9929


OUR SERVICE
(1) More than 300 workers ,large and advanced production;

(2) Have professional engineer,can offer the best solutions;

(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.

(4) Build strict QC team to guarantee the quality;

(5) Own good sales team, can offer warm follow-up service.

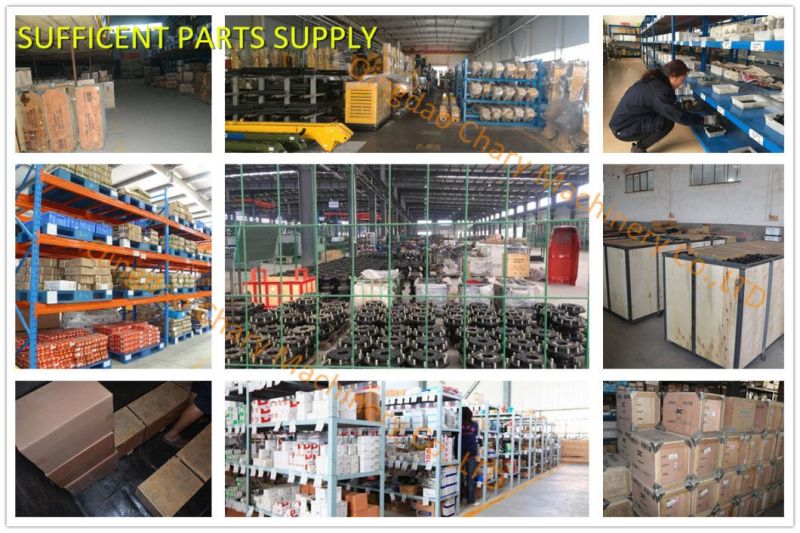

(6) Spare Parts Supply:


We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.



Qingdao Chary Machinery CO., LTD
Call : +86 150 5328 9929

FAQ

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.


3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.





WELCOME TO CONTACT US

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.
