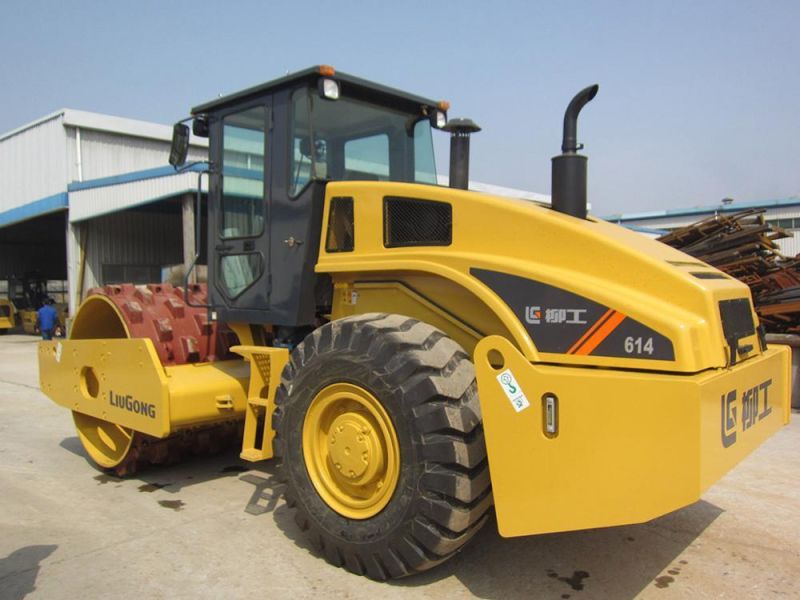

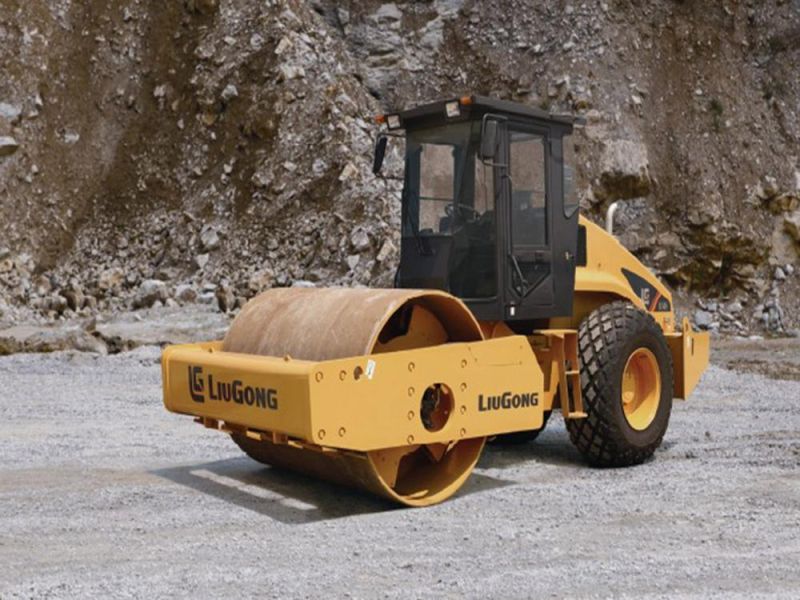

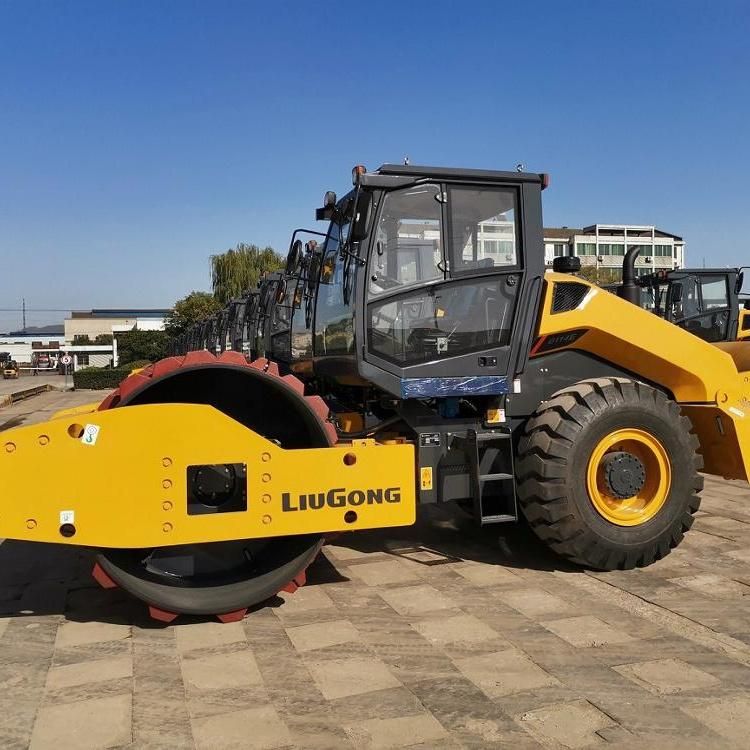

Liugong 6120e 20 Ton Vibratory off Road Roller Compactor
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Road Roller
- Working Method：Wheeled
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：6120E
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
- Centrifugal Force：300,180 Kn
- Certification：CE, ISO 9001:2000
- Condition：New
- Operating Mass：20000kg
- Transport Package：Nude
- Specification：6450*2340*3150MM
- Trademark：LIUGONG
- Origin：China
- HS Code：8429401100
- Production Capacity：500,Month
Description
Operating Mass
20000 kg
Mass On Vibrating Drum
10000 kg
Mass On Drive Axle
10000 kg
Front Drum Static Linear Load
460 N/cm
Model
SC8D180.3G2B1
Emission Regulation
Stage II
Rated Power
132 kW (179 hp) @ 1800 rpm
Vibration Frequency
28/33 Hz
Nominal Amplitude
2.0/1.3 mm
Centrifugal Force
380/280 kN
Drum Diameter
1600 mm
1st Maximum Speed, fwd
2.7 km/h
2nd Maximum Speed, fwd
5.2 km/h
3rd Maximum Speed, fwd
11 km/h
Theoretical Gradeability
30%
Min. GroundClearance
450 mm
Wheelbase
3230 mm
Min. Outside Turning Radius
7000 mm
Overall Length
6450 mm
Overall Width
2340 mm
Overall Height
3150 mm
