• Model NO.：Front End Loader For Tractor
• Power：20-125HP
• Max. Dump Height：1800-2800mm
• Max. Dump Distance：900-1100mm
• Bucket Rollback Angle：42 Degree
• Lifting Time to Pivot Pin：7-10s
• Descending Time：3.5-10s
• Bucket Capacity：0.2-0.65cbm
• Transport Package：Standard Export Packaging
• Trademark：OUKE
• Origin：Jining, China
• HS Code：8701100000
• Production Capacity：100 , Month

Basic Info.

Model NO. Front End Loader For Tractor Power 20-125HP Max. Dump Height 1800-2800mm Max. Dump Distance 900-1100mm Bucket Rollback Angle 42 Degree Lifting Time to Pivot Pin 7-10s Descending Time 3.5-10s Bucket Capacity 0.2-0.65cbm Transport Package Standard Export Packaging Trademark OUKE Origin Jining, China HS Code 8701100000 Production Capacity 100 / Month

Product Description

Attention: Page quoted as attachment price!

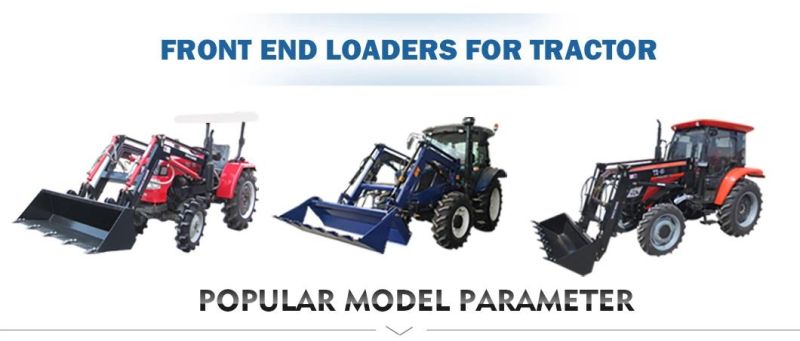

Model	TZ-3	TZ-4	TZ-8	TZ-10	TZ-12
Power	20-30HP	30-45HP	50-70HP	80-90HP	100-125HP
Max. dump height	1800mm	2000mm	2000mm	2400mm	2800mm
Max. dump distance	900mm	900mm	960mm	1000mm	1100mm
Bucket rollback angle	42°	42°	42°	42°	42°
Max. Unloading angle	47°	47°	160°	160°	160°
Max. scraping depth	100mm	140mm	46mm	46mm	46mm
Lifting time to pivot pin	7s	7s	8s	8s	10s
Descending time	3.5s	3.5s	4s	4	10s
Bucket capacity	0.2m3	0.23m3	0.43m3	0.6m3	0.65m3

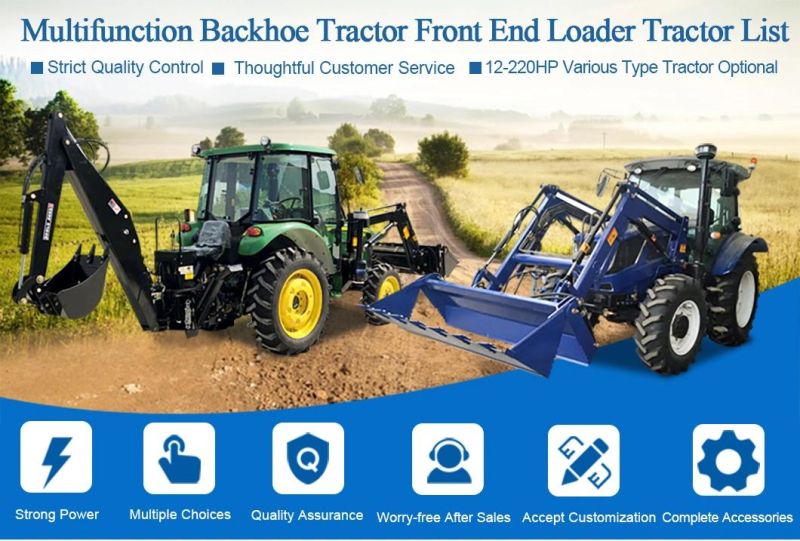

Backhoe Tractor is done directly mining task device. It consists of moving arm, dou lever, the bucket hinged three parts and into. Moving arm ups, dou stem telescopic and bucket with reciprocating double role turning the hydraulic cylinder control. Dig machinery is dig with bucket mining above or below the material bearing machine, and load transport vehicles or discharge to heap of yard earthwork machinery.
In order to adapt to the different needs of construction operation, hydraulic excavator with a variety of work device can be, such as mining, lifting, loading, smooth, clamps, earth-moving, impact hammer and so on many kinds of operation equipments.
Front End Loader for tractor is widely used in farm, grazing land, construction etc, mainly in shoveling, stacking or short-distance transporting of loose material like mud, sand and stone, garbage.

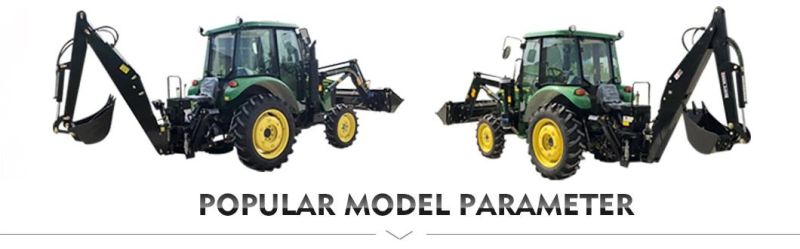

Model	LW-6	LW-7	LW-8	LW-9	LW-10	LW-12
Matched Power	25-35 hp	40-75 hp	45-85hp	50-100 hp	70-125hp	80-150hp
Max Digging Deep	1850 mm	2150 mm	2640 mm	2900 mm	3000 mm	3500 mm
Max Digging Height	2500 mm	3400 mm	3510 mm	3900 mm	4000 mm	4300mm
Max moving Height	1400 mm	1760 mm	2000 mm	2327mm	2362 mm	2700mm
Unloading height	1733 mm	1878 mm	1952 mm	2413 mm	2540 mm	2770mm
Max Digging Radius	2800 mm	3360 mm	3930 mm	3977 mm	3986mm	4300 mm
Digging power	1300 kg	1200 kg	1600 kg	1900 kg	2600 kg	2700kg
Arm's power	790 kg	950 kg	1000 kg	1270 kg	1720 kg	1900kg
Bucket work angle	160°	160°	160°	150°	150°	172°
Swing Angle For Boom	140°	140°	140°	160°	160°	180°
Working pressure	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa
Bucket Width	300 mm	400 mm	450 mm	480 mm	500 mm	550 mm
Bucket Cubage	0.03 m3	0.036 m3	0.048 m3	0.054 m3	0.06 m3	0.07 m3
